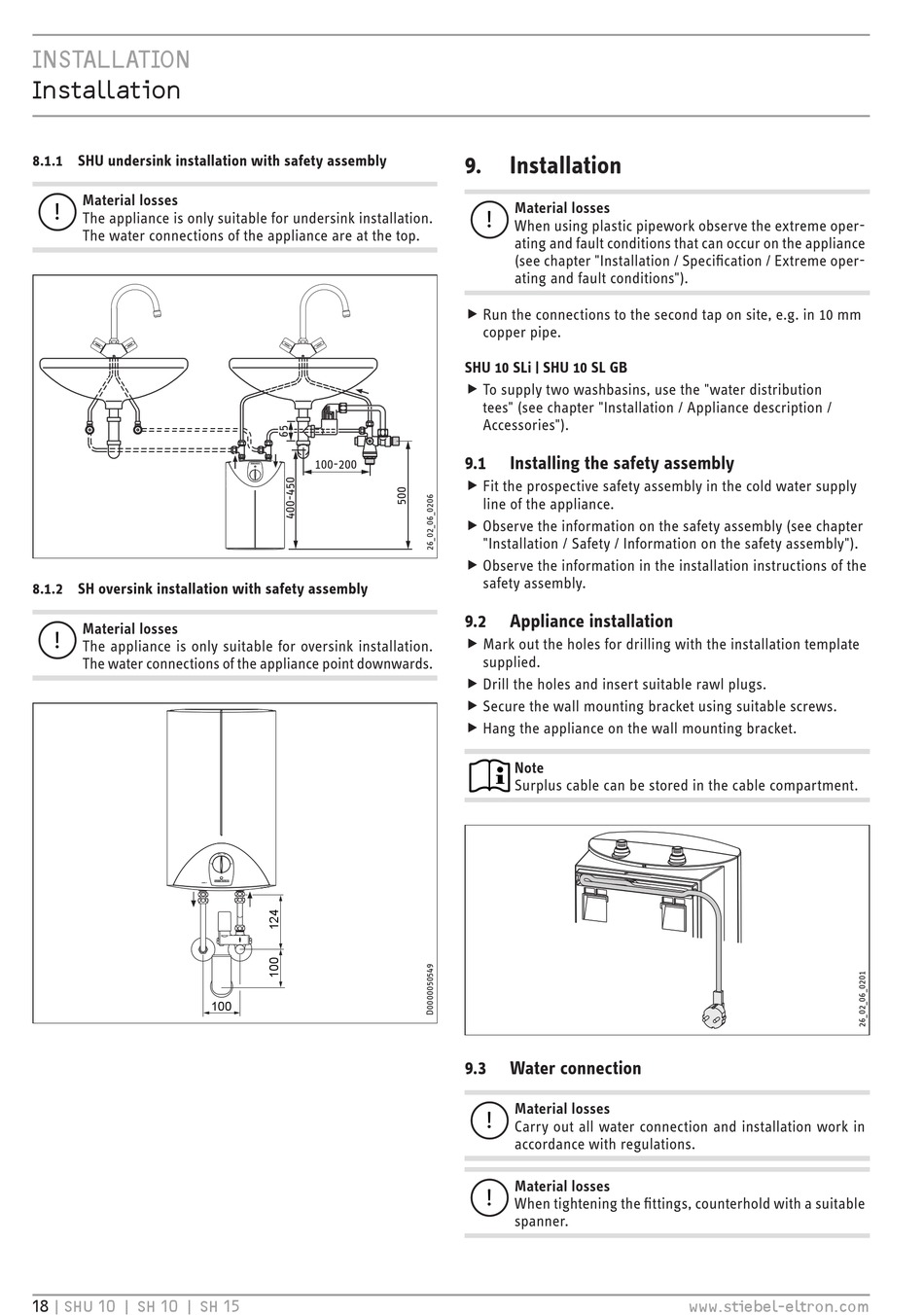

INSTALLATION

Installation
8.1.1 SHU undersink installation with safety assembly
Material losses
!
The appliance is only suitable for undersink installation.
The water connections of the appliance are at the top.
8.1.2 SH oversink installation with safety assembly
Material losses
!
The appliance is only suitable for oversink installation.
The water connections of the appliance point downwards.
comfor t
18 | SHU 10 | SH 10 | SH 15
100-200
°C
82 35
65 Eco 55
Eco
55 65
35 85
°C
9. Installation
Material losses
!
When using plastic pipework observe the extreme oper-
ating and fault conditions that can occur on the appliance
(see chapter "Installation / Specification / Extreme oper-
ating and fault conditions").
f Run the connections to the second tap on site, e.g. in 10 mm f
copper pipe.
SHU 10 SLi | SHU 10 SL GB
f To supply two washbasins, use the "water distribution f
tees" (see chapter "Installation / Appliance description /
Accessories").
9.1

Installing the safety assembly

f Fit the prospective safety assembly in the cold water supply f
line of the appliance.
f Observe the information on the safety assembly (see chapter f
"Installation / Safety / Information on the safety assembly").
f Observe the information in the installation instructions of the f
safety assembly.
9.2

Appliance installation

f Mark out the holes for drilling with the installation template f
supplied.
f Drill the holes and insert suitable rawl plugs. f
f Secure the wall mounting bracket using suitable screws. f
f Hang the appliance on the wall mounting bracket. f
Note
Surplus cable can be stored in the cable compartment.
9.3

Water connection

Material losses
!
Carry out all water connection and installation work in
accordance with regulations.
Material losses
!
When tightening the fittings, counterhold with a suitable
spanner.
