Torque Reaction

When the HandTorque
Square Drive and must be allowed to rest squarely against a solid object or surface adjacent to the bolt to be
tightened (see Figure 2).
Where the standard reaction plate is not suitable, it may be possible to adapt it. Refer to your Norbar
distributor for advice.
Reaction
Clockwise Operation
Reaction
Clockwise Operation
®
is in operation, the Reaction Plate rotates in the opposite direction to the Output
Torque
Torque
Counter-Clockwise Operation
Counter-Clockwise Operation

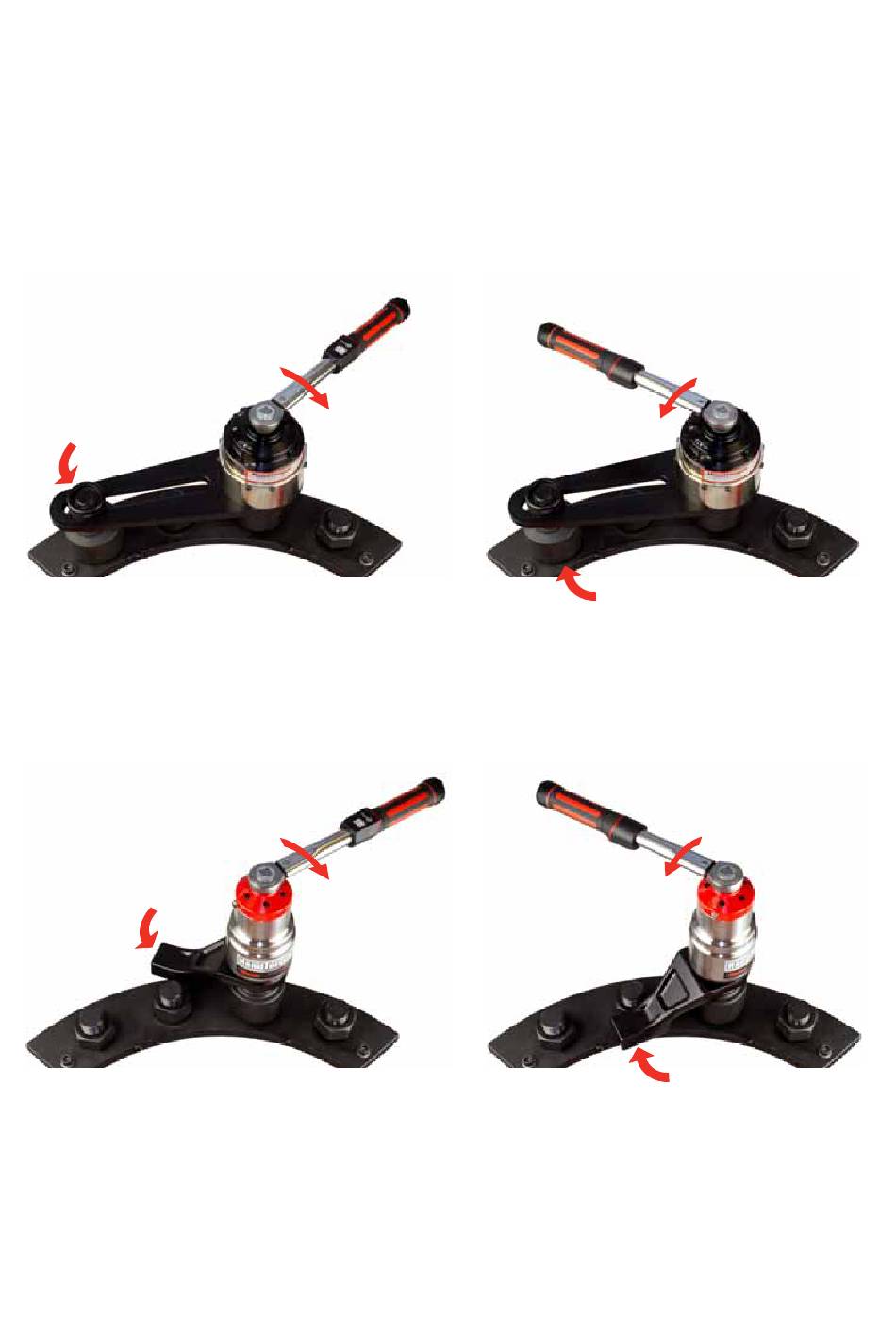

FIGURE 2
Torque
Reaction
Torque
Reaction
5
