OPERATING INSTRUCTIONS

To operate the HandTorque

Power Drive or Impact Quality Sockets.

Reaction Arm.

Norbar or other quality torque wrench.
ANTI WIND-UP
RATCHET
REACTION PLATE
SLAVE SQUARE
Standard Series
REACTION PLATE
4
® multiplier you will need the following:-
INPUT SQUARE DRIVE
OUTPUT SQUARE DRIVE
INPUT SQUARE DRIVE
ANTI WIND-UP
RATCHET
OUTPUT SQUARE DRIVE
HT4 Series
REACTION PLATE
Small Diameter Series
ANTI WIND-UP
RATCHET
REACTION PLATE

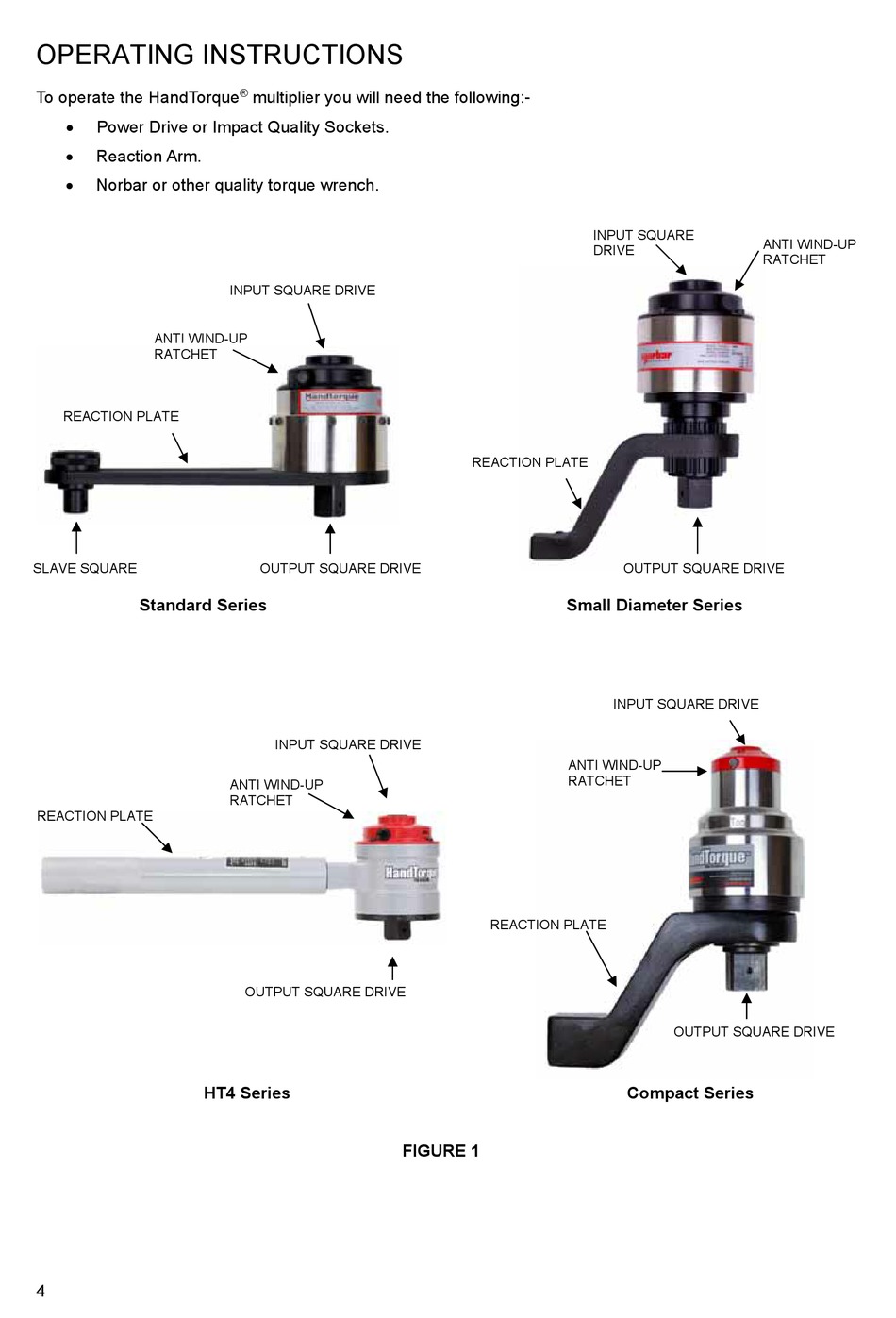

FIGURE 1
INPUT SQUARE
DRIVE
OUTPUT SQUARE DRIVE
INPUT SQUARE DRIVE
OUTPUT SQUARE DRIVE
Compact Series
ANTI WIND-UP
RATCHET
