2.
To apply torque, follow the instructions given earlier for setting and operating of the multiplier. Set the
direction of operation for the Anti Wind-Up ratchet as shown in Figure 8.
3.

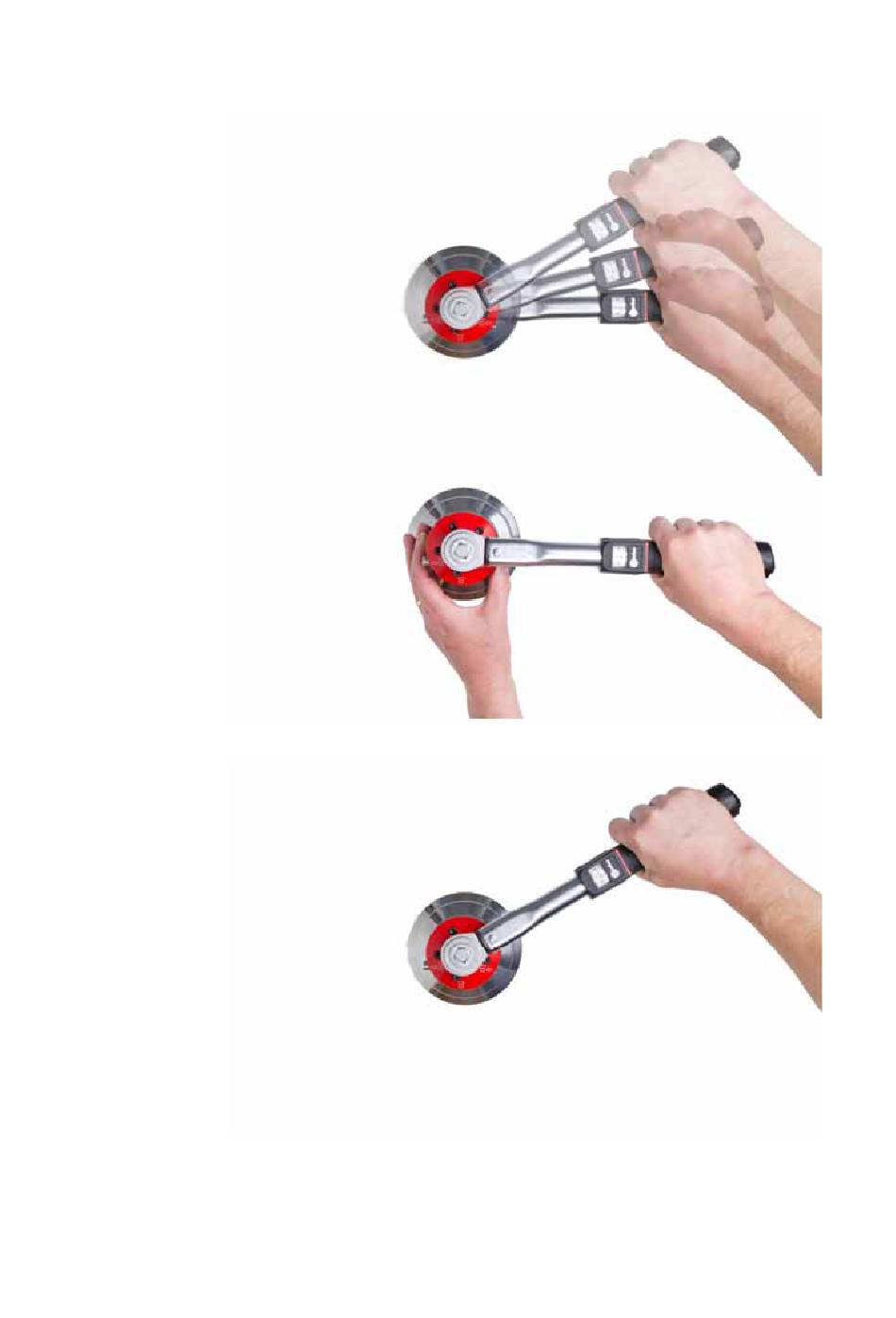

To remove the multiplier, carefully load the gearbox until the 'ratchet direction selector' can be moved
towards the neutral position. Allow the wrench to rotate slowly counter-clockwise until the multiplier
becomes free.
3.1
Load the torque wrench.
3.2
With the wrench still loaded, move the 'ratchet direction selector' to counter-clockwise:
3.3
Allow the torque wrench to rotate slowly until the multiplier becomes free.
If wind-up cannot be released with one sweep of the wrench, re-engage the ratchet by pushing the 'ratchet
direction selector' back to the clockwise position. Reposition the wrench and follow procedure 3 until the
wind-up is fully released.
4.
The tool may now be removed from the fastener.
5.
Familiarise yourself with this tool by initially applying low torques and removing wind-up.
We recommend that the Anti Wind up assembly input gear and ratchet teeth are inspected annually
by your Norbar approved distributor for wear or damage.
12
FIGURE 9
FIGURE 10
FIGURE 11
