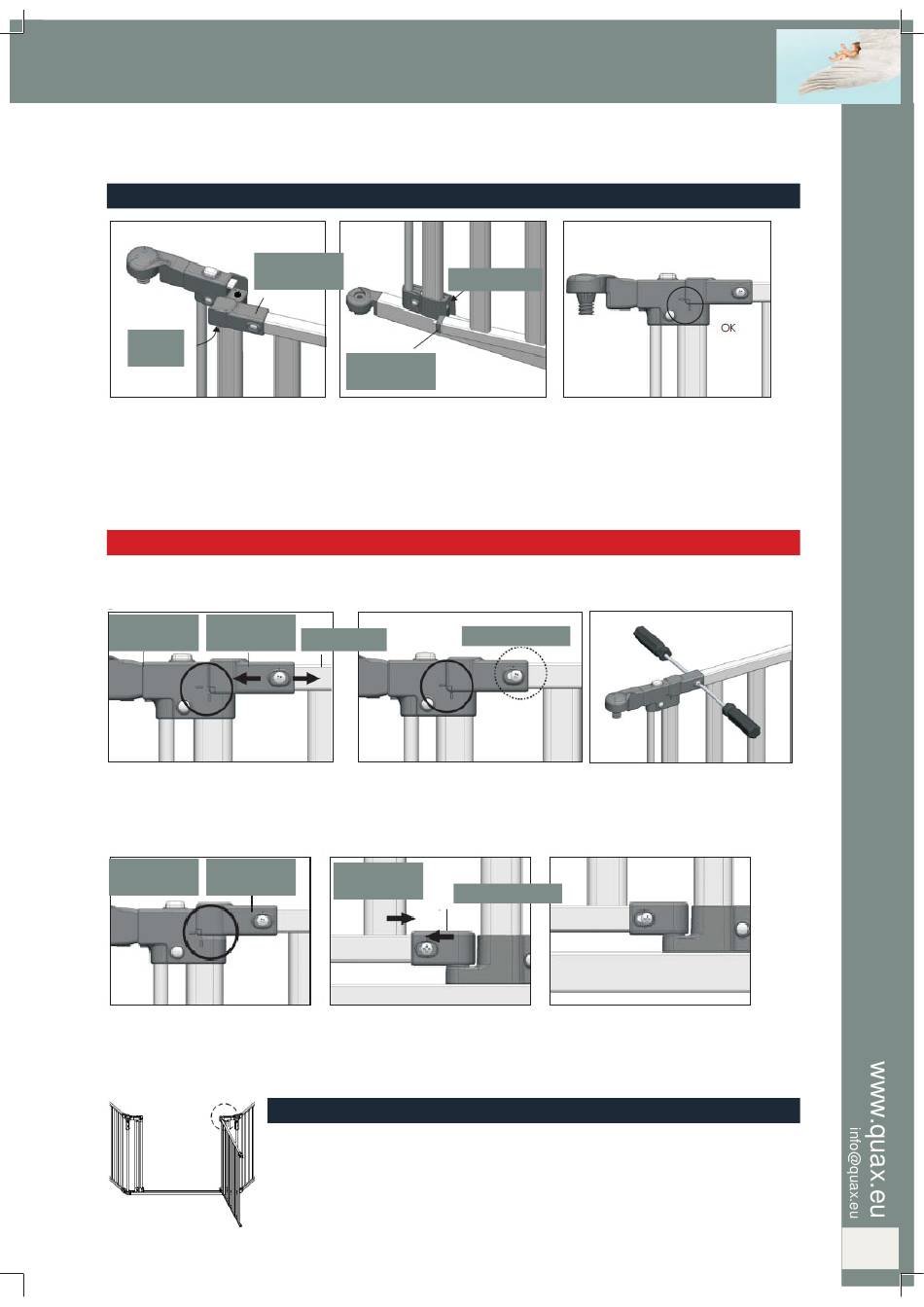

8. Closing the door

Upper door
latch
Lock
bracket
The upper locking bar must be
fully locked in the lock holder
on the upper door latch (9).
Important : always check if the gate is properly locked after closing
9. If the door does not close automatically : adaptations to be followed
If the markings of the upper left corner and the upper door latch (9) do not match, then the adjustments
described here below must be performed in order to let the door close automatically back again.
Upper left Upper door
corner latch
If the markings do not match laterally, release the lock screw on the upper door latch (9) with the aid of
two screwdrivers. Move the door frame and the upper door latch to the left or the right until the marks are
aligned and refi x the locking screw.
Upper left Upper door
corner latch
If the marks do not match in height, release the lock screw on the lower door latch (10) with the aid of
two screwdrivers. Move the door frame and the lower door latch to the left or the right until the marks are
aligned and refi x the locking screw.
10. Blocking the door
The locking system is intended for adult use.
Once the door is kept open fully, the automatic closing system of the gate will no
longer function. This allows your child to move to and fro without limitation. Be
carefull.
Metalen hekje voor open haard (3P)
Kamin Sicherheitsgitter (3P)
Lock bracket
Lower
lock rail
The lower locking bar must be
fully locked in the lock holder of
the door frame (1).
Lock screw
Door panel
Lower door
latch
Lock screw
Barrière pour cheminé (3P)
Safety barrier for open fi res (3P)
The marking of the upper left
corner should be tuned to the
marking of the upper door latch
(9).
