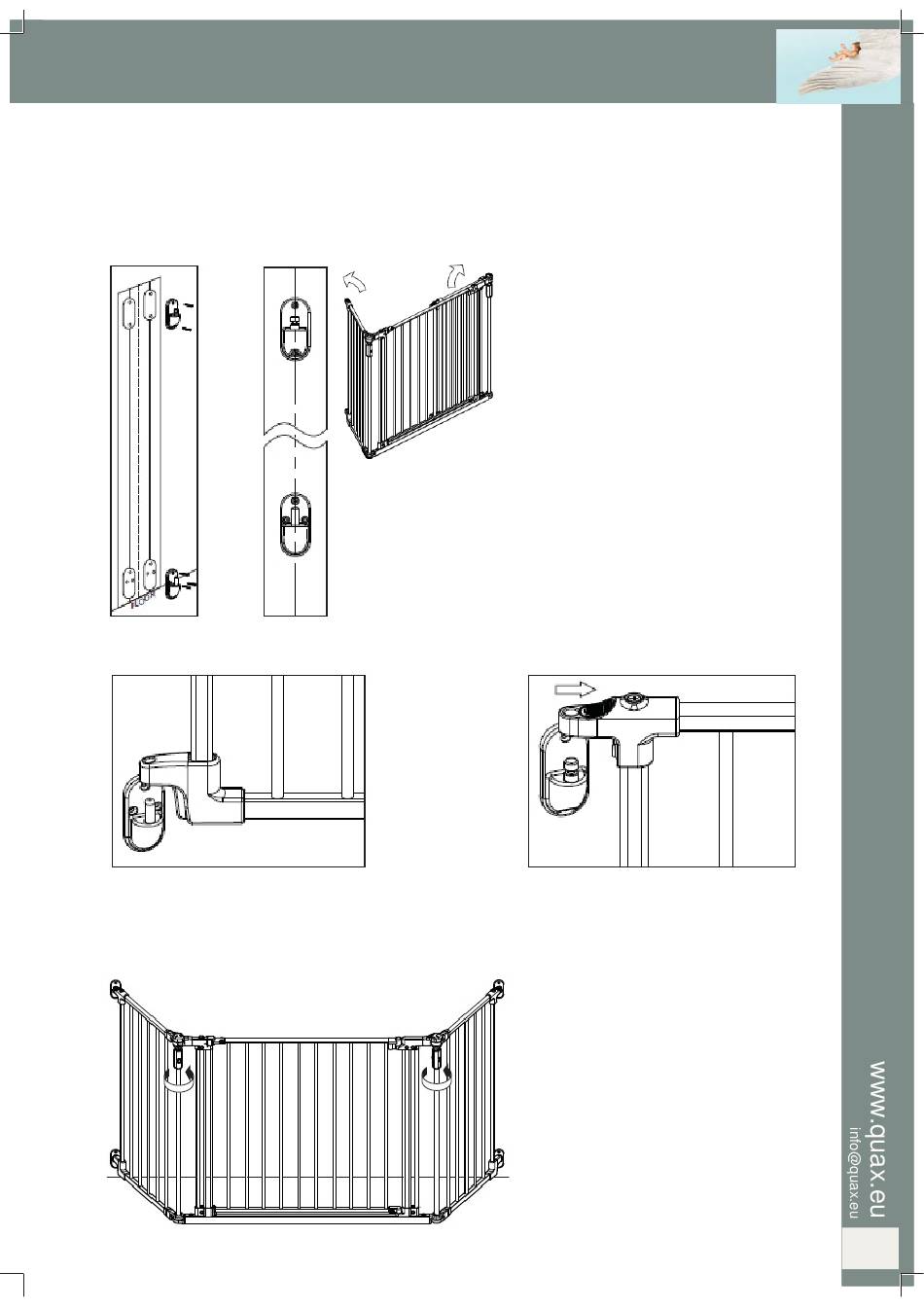

Step 2 Wall fi xation : the drawings can be used for both mountings.
Step 3 : hooking in the panels.
First insert the lower bracket (13) on the lower wall hook (17). Next press the push-button (14) and place
the upper bracket (12) on the upper wall hook (15).
Step 4 : locking the corners of the barrier.
Metalen hekje voor open haard (3P)
Kamin Sicherheitsgitter (3P)
Hold the template on the surface where the gate is to be mounted.
The template needs to be placed vertically and fully extended with
the lower end resting on the ground. Mark the holes above and below
(Left drawing). Remove the template, place the upper (15) and lower
wall hook (17) in front of the markings and fi x these with the provided
screws. Unfold the barrier without pressing any button (Right draw-
ing).
Barrière pour cheminé (3P)
Safety barrier for open fi res (3P)
Turn both top hinges against the clock
to lock the bars. Make sure that the top
hinges are tightened.
