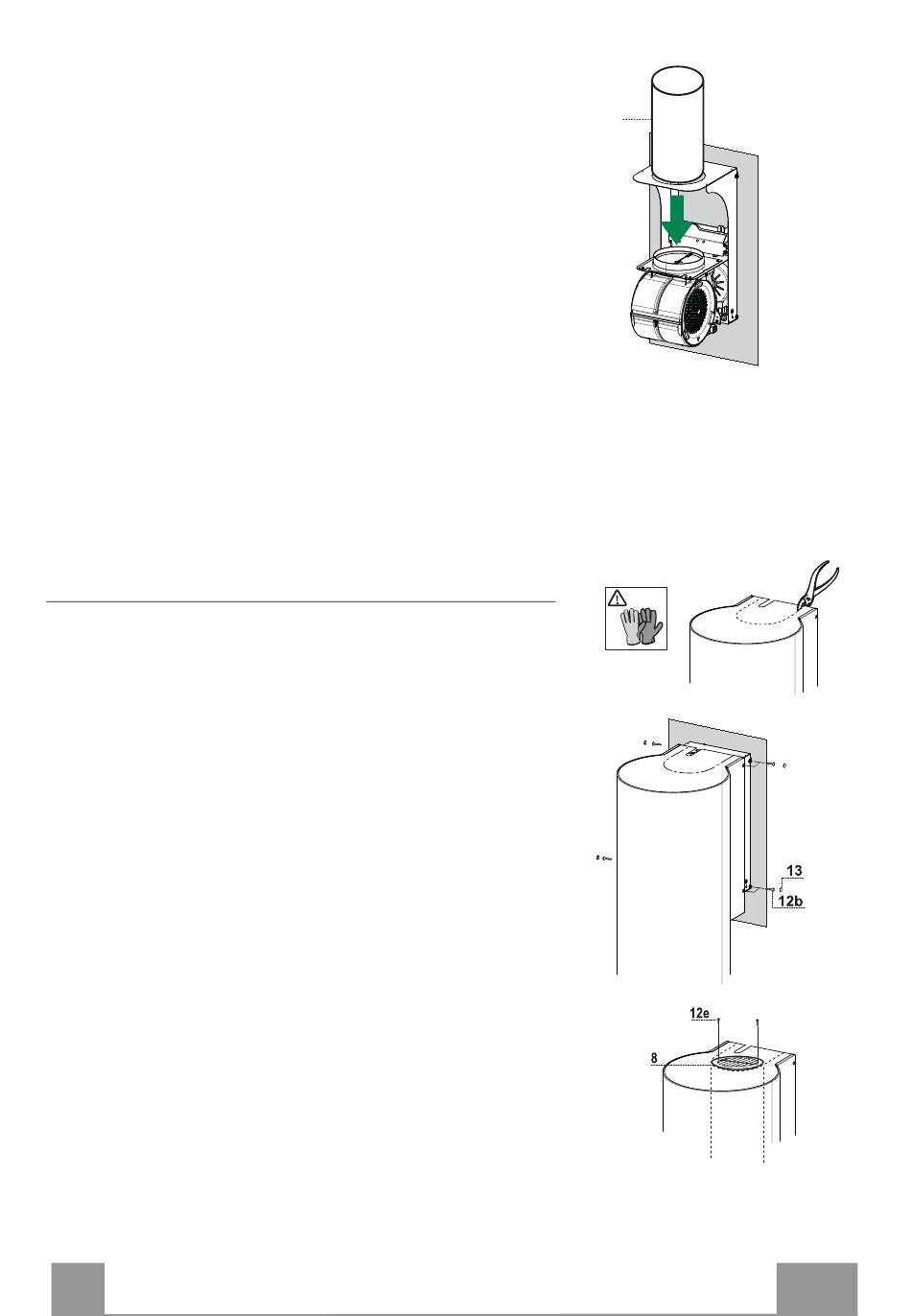

RECIRCULATION VERSION AIR OUTLET
• Insert pvc pipe 7 provided onto the Hood Canopy Outlet.
.
Hood body mounting
Ducting version
• In case the air outlet connection on the upper part of the
hood has been chosen it will be necessary to remove the
pre-cut piece.
• Lean the hood body on the support and fix it laterally
with the 4 12b screws.
• Cover the screw seats with the plugs 13 supplied with the
hood.
Recycling version
• Remove the pre-cut piece.
• Lean the hood body on the support and fix it laterally
with the 4 12b screws.
• Cover the screw seats with the plugs 13 supplied with the
hood.
• Place the directioned grid 8 on the pipe and make sure
that it is correctly installed.
• Fix the directioned grid 8 with the screws 12e supplied
together with the hood.
• Make sure that the charcoal filters are present.
EN
ø 150
7
2
21
