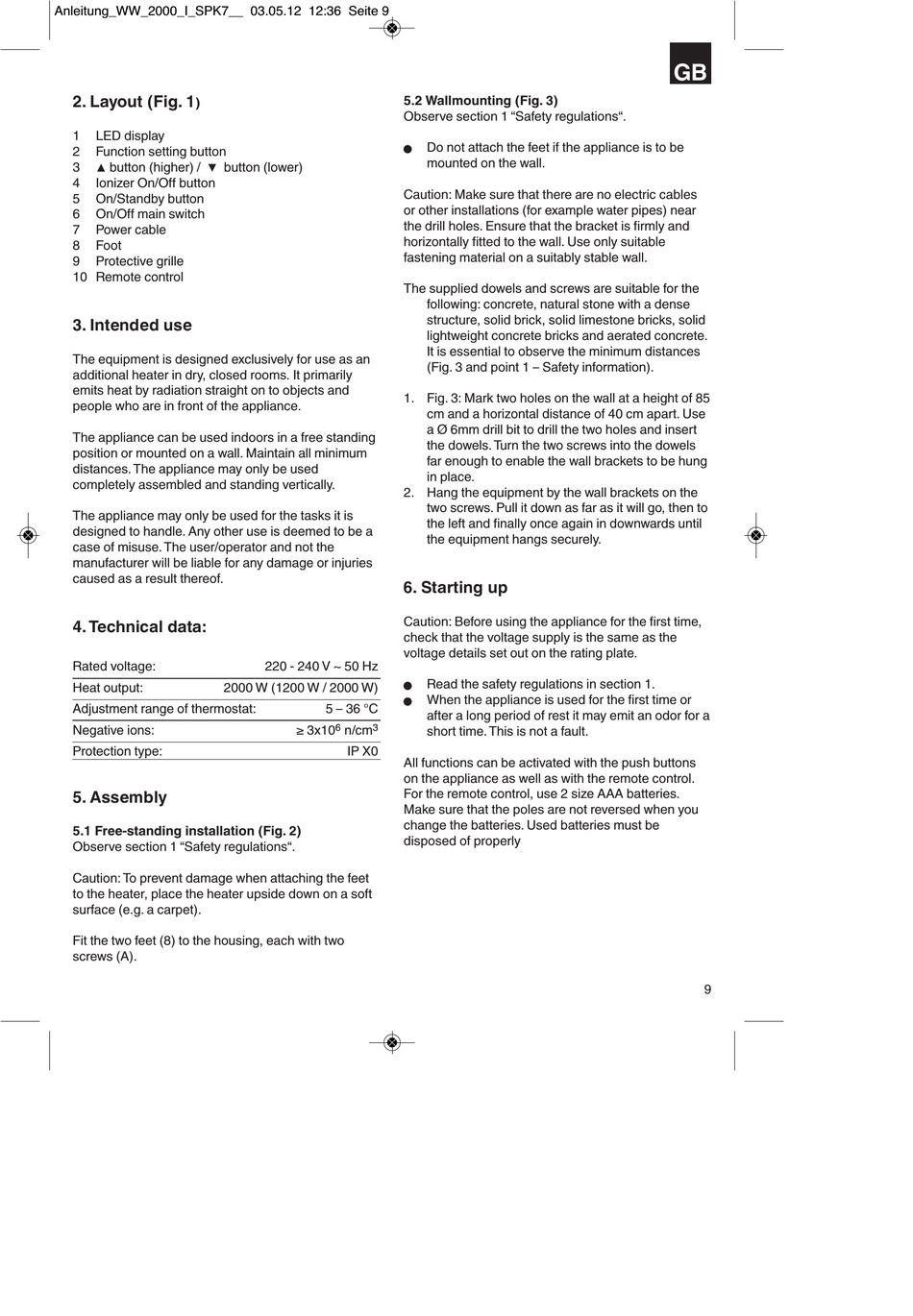

Anleitung_WW_2000_I_SPK7__ 03.05.12 12:36 Seite 9
2. Layout (Fig. 1
)
1
LED display
2
Function setting button
3
▲ button (higher) / ▼ button (lower)
4
Ionizer On/Off button
5
On/Standby button
6
On/Off main switch
7
Power cable
8
Foot
9
Protective grille
10 Remote control
3. Intended use
The equipment is designed exclusively for use as an
additional heater in dry, closed rooms. It primarily
emits heat by radiation straight on to objects and
people who are in front of the appliance.
The appliance can be used indoors in a free standing
position or mounted on a wall. Maintain all minimum
distances. The appliance may only be used
completely assembled and standing vertically.
The appliance may only be used for the tasks it is
designed to handle. Any other use is deemed to be a
case of misuse. The user/operator and not the
manufacturer will be liable for any damage or injuries
caused as a result thereof.
4. Technical data:
Rated voltage:
Heat output:
2000 W (1200 W / 2000 W)
Adjustment range of thermostat:
Negative ions:
Protection type:
5. Assembly
5.1 Free-standing installation (Fig. 2)
Observe section 1 "Safety regulations".
Caution: To prevent damage when attaching the feet
to the heater, place the heater upside down on a soft
surface (e.g. a carpet).
Fit the two feet (8) to the housing, each with two
screws (A).
5.2 Wallmounting (Fig. 3)
Observe section 1 "Safety regulations".
Do not attach the feet if the appliance is to be
n
mounted on the wall.
Caution: Make sure that there are no electric cables
or other installations (for example water pipes) near
the drill holes. Ensure that the bracket is firmly and
horizontally fitted to the wall. Use only suitable
fastening material on a suitably stable wall.
The supplied dowels and screws are suitable for the
following: concrete, natural stone with a dense
structure, solid brick, solid limestone bricks, solid
lightweight concrete bricks and aerated concrete.
It is essential to observe the minimum distances
(Fig. 3 and point 1 – Safety information).
1. Fig. 3: Mark two holes on the wall at a height of 85
cm and a horizontal distance of 40 cm apart. Use
a Ø 6mm drill bit to drill the two holes and insert
the dowels. Turn the two screws into the dowels
far enough to enable the wall brackets to be hung
in place.
2. Hang the equipment by the wall brackets on the
two screws. Pull it down as far as it will go, then to
the left and finally once again in downwards until
the equipment hangs securely.
6. Starting up
Caution: Before using the appliance for the first time,
check that the voltage supply is the same as the
voltage details set out on the rating plate.
220 - 240 V ~ 50 Hz
Read the safety regulations in section 1.
n
When the appliance is used for the first time or
n
5 – 36 °C
after a long period of rest it may emit an odor for a
6
3
≥ 3x10
n/cm
short time. This is not a fault.
IP X0
All functions can be activated with the push buttons
on the appliance as well as with the remote control.
For the remote control, use 2 size AAA batteries.
Make sure that the poles are not reversed when you
change the batteries. Used batteries must be
disposed of properly
GB
9
