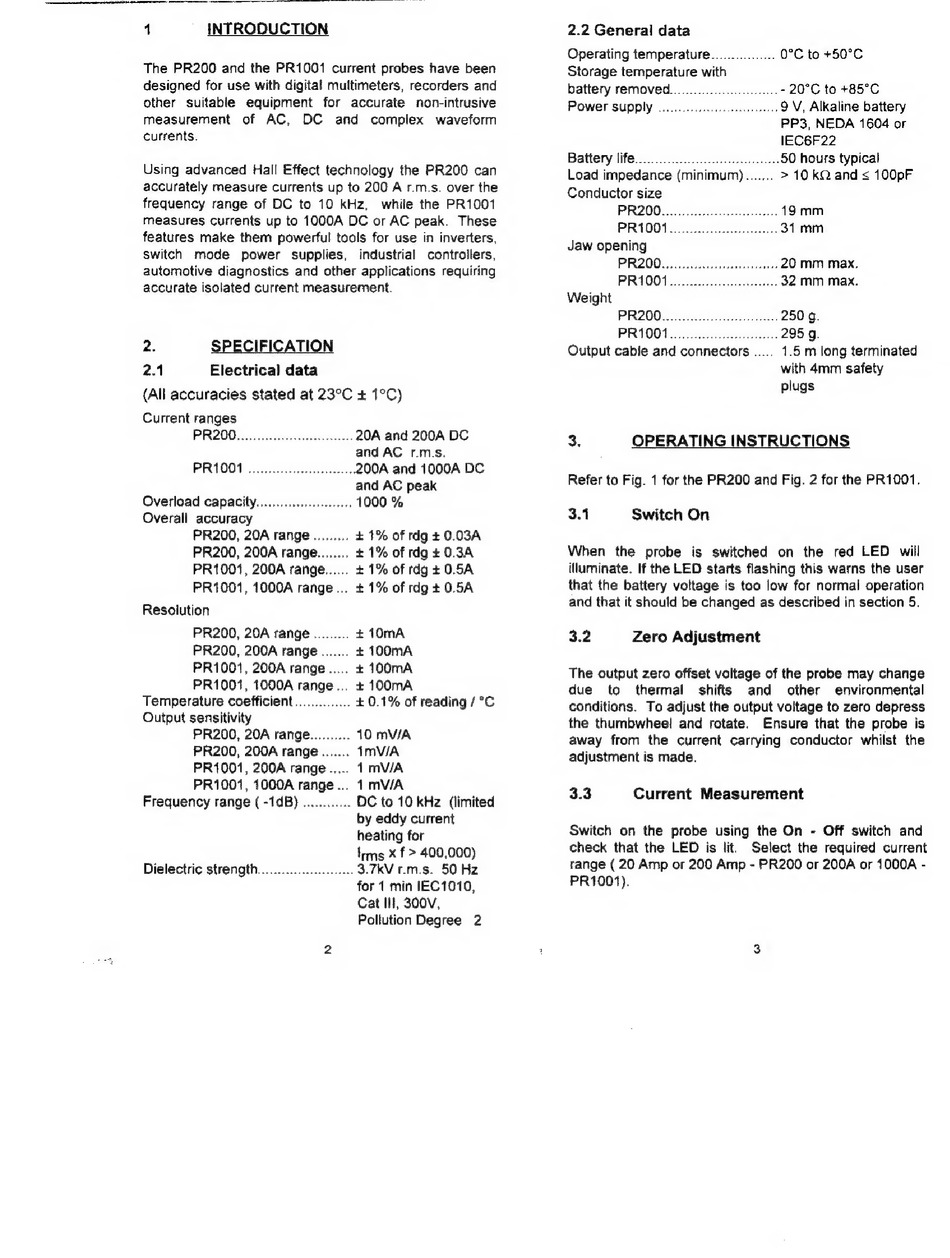

1
INTRODUCTION
The PR200 and the PR1001 current probes have been
designed for use with digital multimeters, recorders and
other
suitable
equipment
for accurate
non-intrusive
measurement
of AC,
DC
and
complex
waveform
currents.
Using advanced Hall Effect technology the PR200 can
accurately measure currents up to 200 A r.m.s. over the
frequency range of DC to 10 kHz,
while the PR1001
measures currents up to 1000A DC or AC peak.
These
features make them powerful tools for use in inverters,
switch
mode
power
supplies,
industrial
controllers,
automotive diagnostics and other applications requiring
accurate isolated current measurement.
2.
SPECIFICATION
2.1
Electrical data
(All accuracies stated at 23°C + 1°C)
Current ranges
PR20002:
a 6 АЛА
20A and 200A DC
and AC
r.m.s.
PR1001 ........................... 200A and 1000A DC
and AC peak
Overload сарасиу........................ 1000 %
Overall accuracy
PR200, 20A range ......... + 1% of rdg + 0.03A
PR200, 200A range........ + 1% of rdg + 0.34
PR1001, 200A range...... + 1% of rdg + 0.5A
PR1001, 1000A range... + 1% of rdg + 0.5A
Resolution
PR200, 20A range ......... + 10mA
PR200, 200A range ....... + 100mA
PR1001, 200A range
+ 100mA
PR1001, 1000A range... + 100mA
Temperature coefficient .............. x 0.1% of reading / °C
Output sensitivity
PR200, 20A range.......... 10 mV/A
PR200, 200A range ....... imV/A
PR1001, 200A range ..... 1 mV/A
PR1001, 1000A range... 1 mV/A
Frequency range ( -1dB) ............ DC to 10 kHz (limited
by eddy current
heating for
Irms X f > 400,000)
Dielectric strength........................ 3.7kV r.m.s. 50 Hz
for 1 min IEC1010,
Cat 111, 300V,
Pollution Degree
2
2.2 General data
Operating temperature ................ 0*C to +50°C
Storage temperature with
battery removed.
Power supply ....
... 20°C to +85°C
...9 V, Alkaline battery
PP3, NEDA 1604 or
IEC6F22
Battery lile.
u
u
cs
50 hours typical
Load impedance (minimum)....... > 10 КО and x 100pF
Conductor size
PR200:. У
19 mm
PR1001.........
eese
31 mm
Jaw opening
PRZOD EE
20 mm max.
PR1001........................ 32 mm max.
Weight
PR200.: essi s 250 g.
PRIOOT nuoc
295 g.
Output cable and connectors .....
1.5 m long terminated
with 4mm safety
plugs
3.
OPERATING
INSTRUCTIONS
Refer to Fig. 1 for the PR200 and Fig. 2 for the PR1001.
3.1
Switch On
When
the probe
is switched
on the red LED
will
illuminate. If the LED starts flashing this warns the user
that the battery voltage is too low for normal operation
and that it should be changed as described in section 5.
3.2
Zero Adjustment
The output zero offset voltage of the probe may change
due
to
thermal
shifts
and
other
environmental
conditions.
To adjust the output voltage to zero depress
the thumbwheel and rotate.
Ensure that the probe is
away from the current carrying conductor whilst the
adjustment is made.
3.3
Current
Measurement
Switch on the probe using the On - Off switch and
check that the LED
is lit.
Select the required current
range ( 20 Amp or 200 Amp - PR200 or 200A or 1000A -
PR1001).
