Before installing the appliance
WARNING
When drilling the wall for installation, take care
not to damage any electrical wiring or existing
piping.
Wall installation
Use a spirit level to position the control unit on
the wall. Follow the instructions below to affix the
control unit to the wall:
Fit the first screw, which will fit into the "lock hole" on
the rear of the control unit at the top (Fig. 1).
Remove the main cover from the control unit by
undoing the two screws using a screwdriver (Fig. 3).
Use a pencil to mark the position of the two
mounting points in the left and right corners at the
bottom of the control unit (Fig. 4).
Remove the control unit, drill the wall and fit rawl
plugs suitable for the type of support (Fig. 5).
Install the control unit with its screws.
6

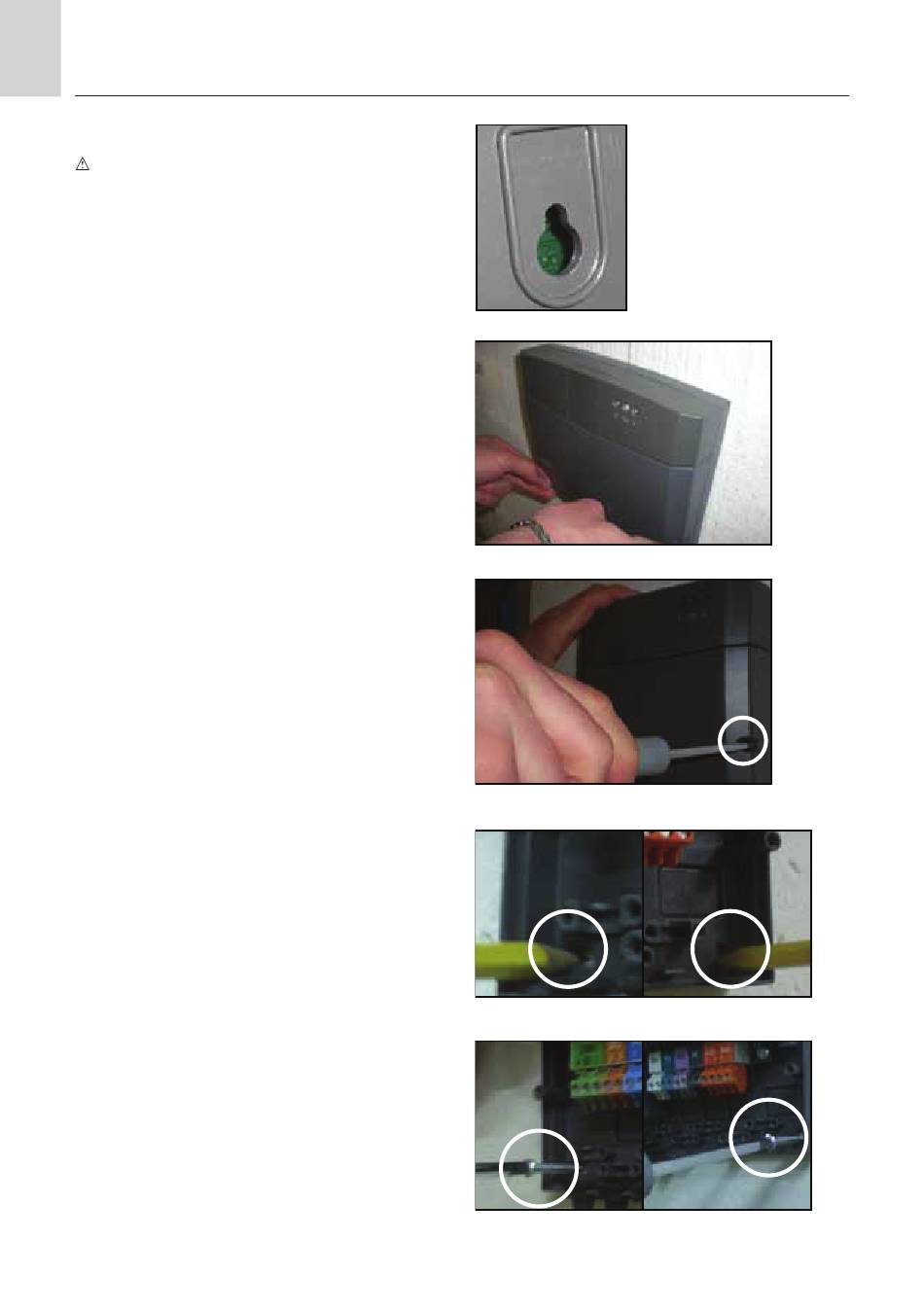

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
