Installation instruction

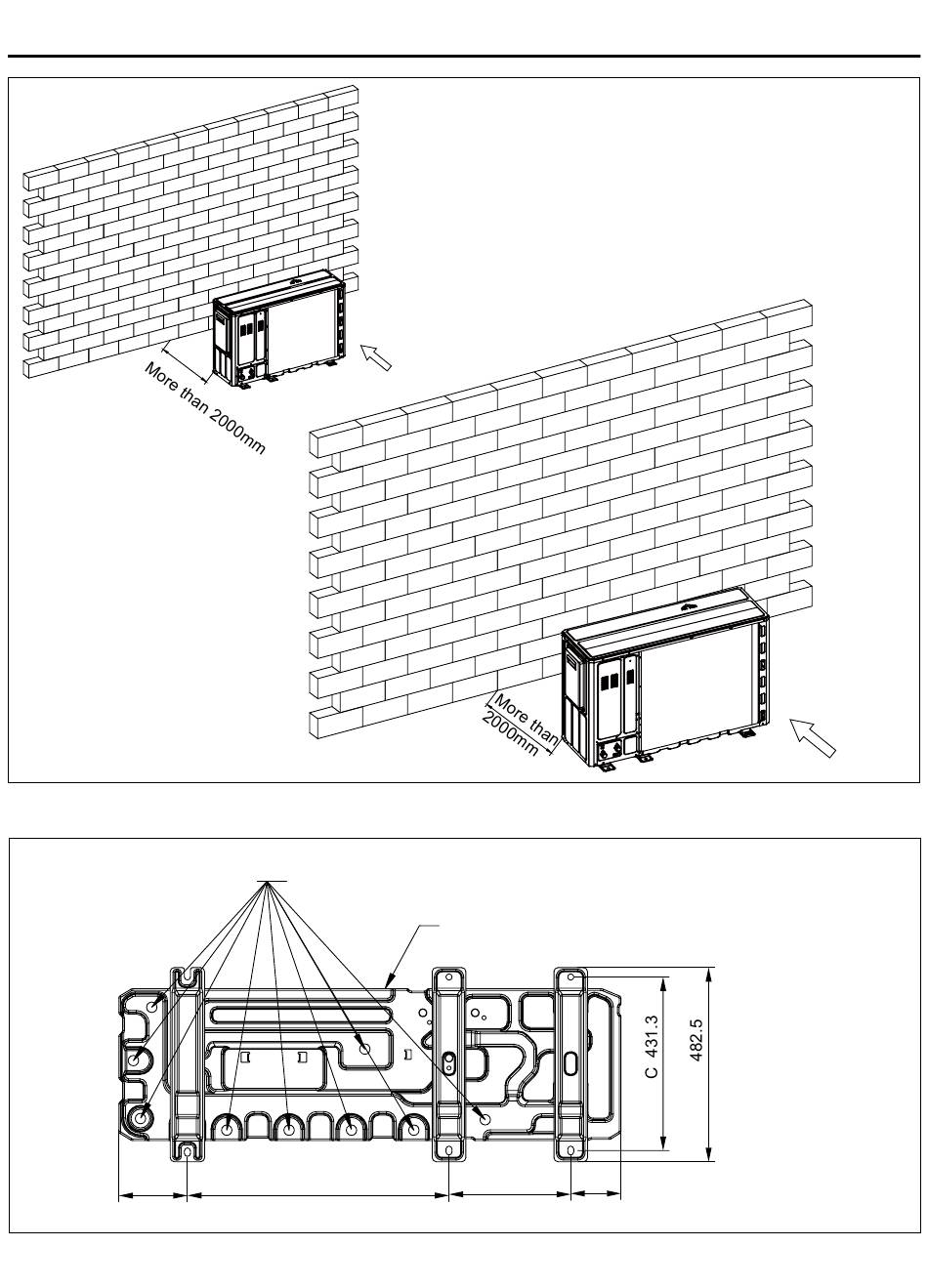

(2) Near wall installation
If the coating on the fastening area is stripped off, the nuts rust easily.
Dimensions (bottom view) (unit of measurement: mm)
AW052MUCHA
AW072MUCHA
AW092MUCHA
170.3
Fierce wind
D
E
A 650
125
B 302.4
16
Fierce wind
A leg pitch1
B leg pitch2
C leg pitch3
D Drain hole
E Bottom frame
