Rotfuchs EWR13000-2 Originalbetriebsanleitung Seite 28

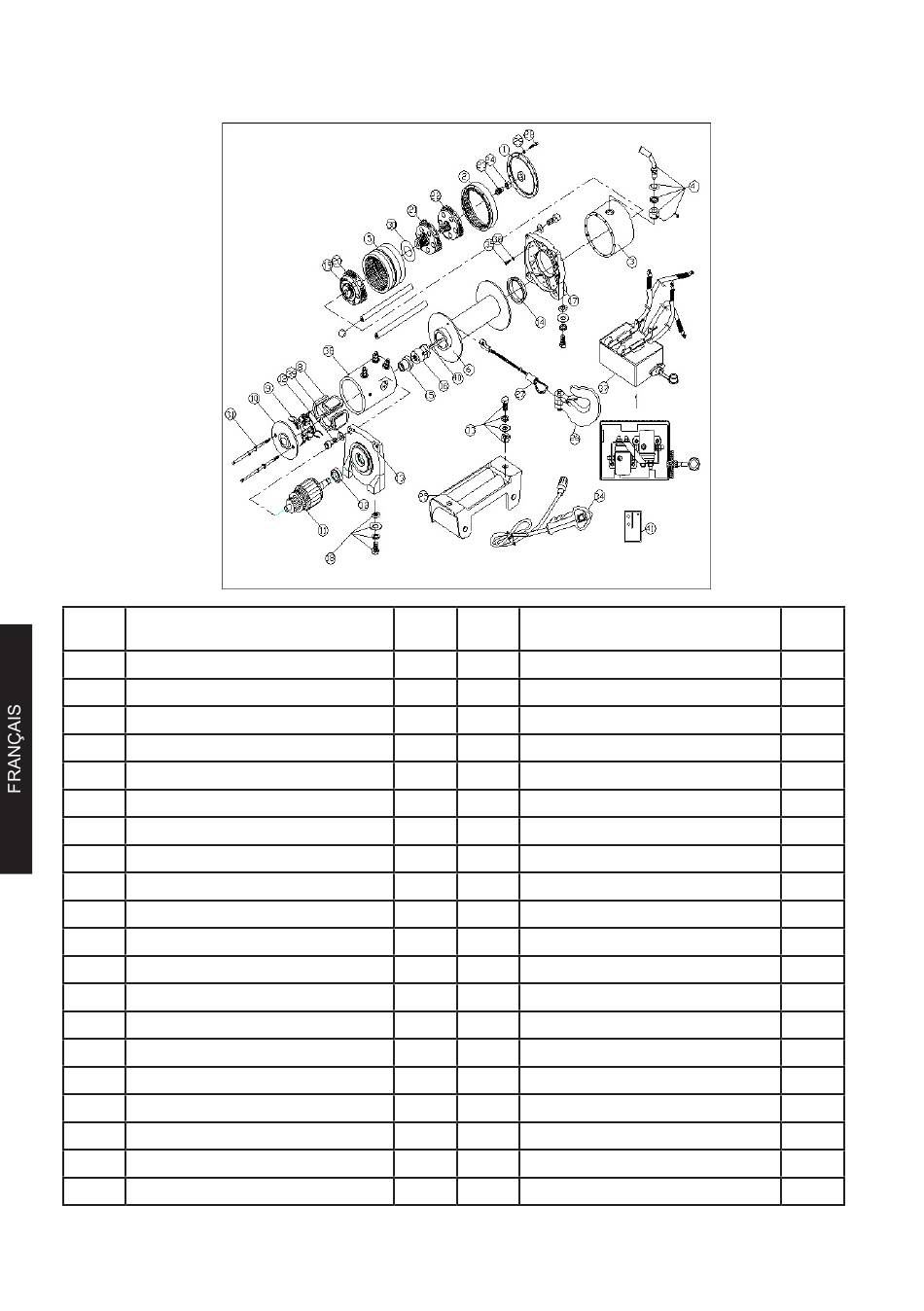

Sprengzeichnung/Explosion Drawing/Dessin d´exploitation
Item Description
No.
1 Gear-Box End Cover
2 Iner Gear
3 Gear Box-Tube
4 Clutch Handle Assy
5 Clutch Gear
6 Drum Assy
7 Tie Bar
8 Stator (12V&24V)
9 Carbon Brush Assy
12 Motor End cover
11 Rotor (12V&24V)
12 Link Screw M8x25
13 Motor Base
14 Nylon Bearing
15 Coupling Joint
16 Brake
17 Gear Box-Base
18 Mounting Bolt Assy
19 Outer Spline
20 Gear Carrier Ass y-output
Qty Item Description
No
1 22 Gear Carrier Ass y-input
1 23 Sun Gear-input
1 24 Bearing
1 25 Roller Fairlead
1 26 Hook
1 27 Wire Rope
2 28 Link Screw M4x35
1 29 Lock Washer
1 30 Washer
1 31 Mounting Bolt M6x150
1 32 Bearing 6203zR
4 33 Mounting Bolt Assy of Roller Fairlead
1 34 Switch Assy
2 35 Link Screw M4x15
1 36 Lock washer
1 37 Solenoid Box Assy
1 38 Motor-Box-Tube
4 39 Lock Washer
1 40 Transmifsich Shaft
1 41 Wireless remote switch
28
Qty
1
1
1
1
1
1
10
10
1
2
1
1
1
10
10
1
1
4
1
1
