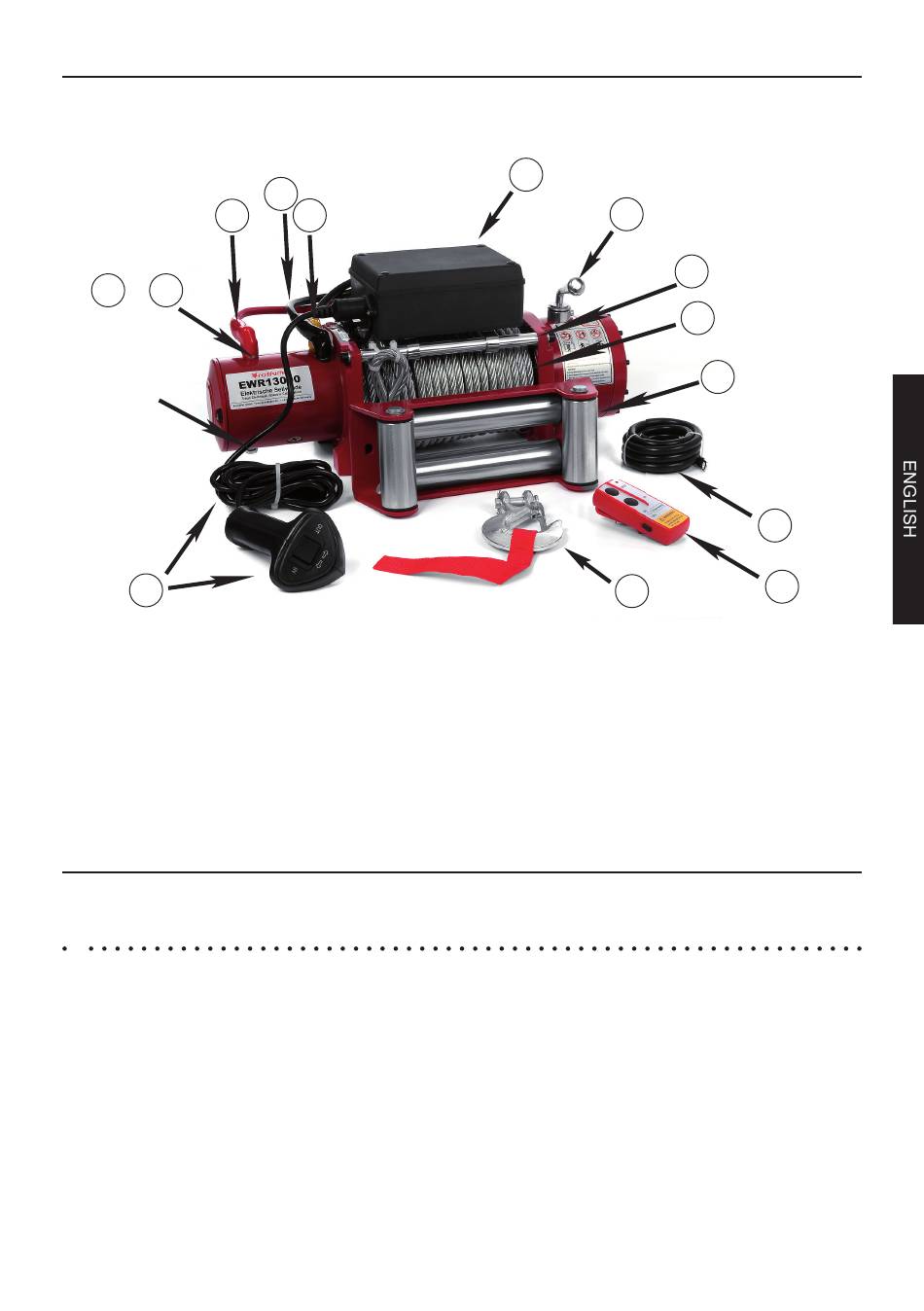

4. Description with Illustration
8
+
15
16
Anschluss A
Terminal A
Bornes de
connexion A
14A
1. Coupling
2. Load hook
3. Wire rope
4. Rope guide
5. Connection for operation unit
6. Mounting holes (4x) (hidden)
7. Control box
8. Plus-motor cable (red cable sheath)
9. Minus-motor cable (yellow cable sheath)
5. Installation
5.1
Mounting your winch
1. The winch is to be mounted into a suitable steel mounting frame using the 4 point foot mount-
ing system in either a horizontal or vertical plane.
2. It's very important that the winch be mounted ona fl at surface so that the three sections (motor,
cable drum and gear housing) are properly aligned.
3. Before commencihg installation ensure the mounting facility being used is capable of with-
standing the winches rated capacity.
4. The fi tment of winches and / or a frontal protection system may aff ect the triggering of SRS air
bags. Check that the mounting system has been tested and approved for winch fi tment in the
airbag equipped vehicle.
5. Winch mounting frames and / or Frontal Protection Systems are suggested to suit most popular
vehicles. Winch frames are packaged with 'detailed fi tting instructions.
6. Should you wish to manufacture you're own mounting plate the dimensions below will assist. A
10
9
7
1
2
10. Minus-motor cable (black cable sheath)
11. Grounding cable
12. Minus-battery cable
13. Plus-battery cable
14. Up and down remote control
(14A corded remote control)
15. Operation unit
16. Male connection of operation unit
13
23
3
4
12
14
