Wire Gauge
From the loudspeaker line wiring to the ceramic block, use 18 AWG (0.8 mm
14 AWG (2.1 mm
2

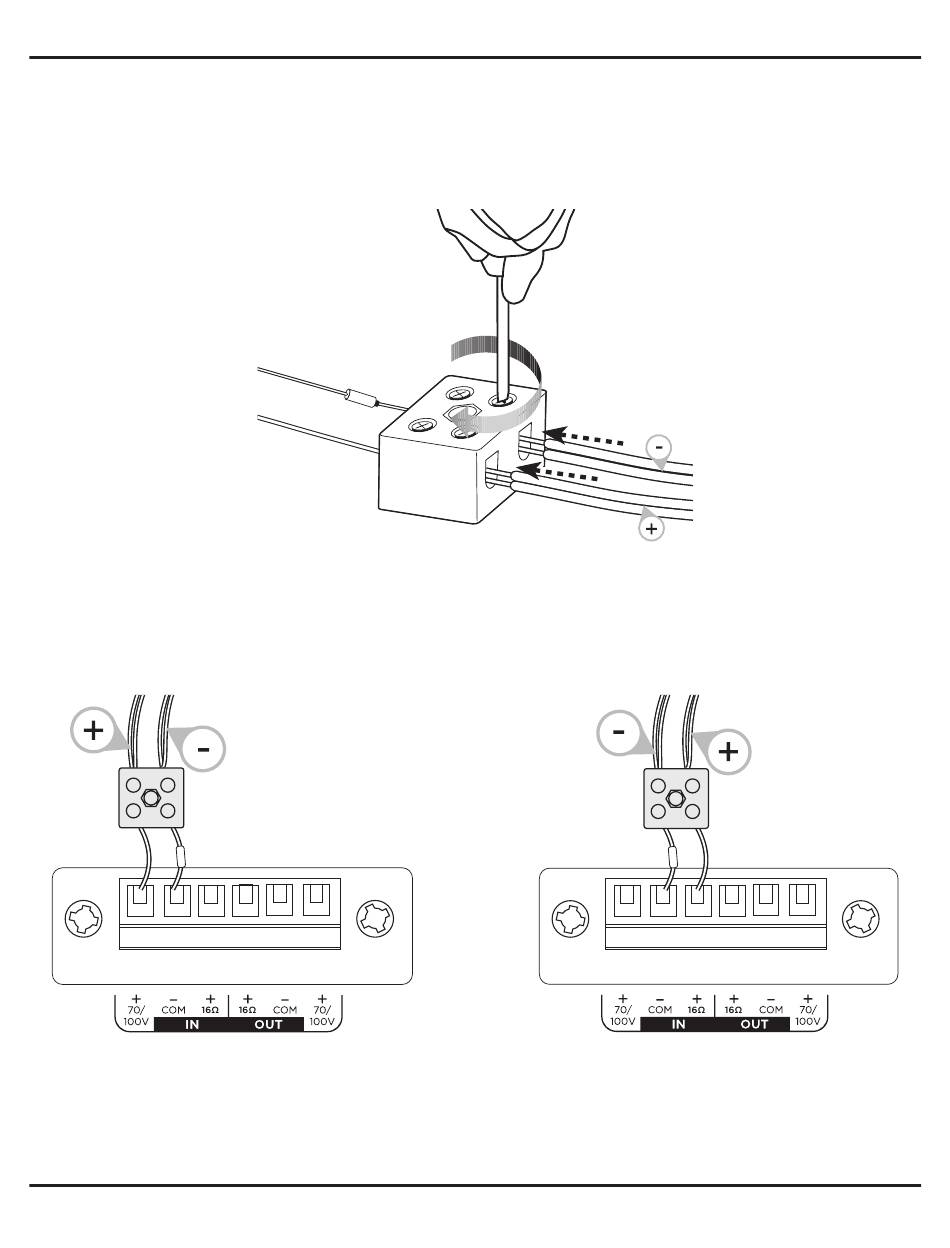

Connection Diagrams

Expose six millimeters (1/4 inch) of bare wire to attach to the terminals.
In/Out
70/100V
Installation Guide • FreeSpace FS Ceramic Terminal
) size wire only.
In/Out
In/Out
In/Out
In/Out
16Ω / 8Ω
Installation
) to
2
In/Out
English • 3
