Description Of "Comfort" Control Panel - Fronius Rcu 4000 Bedienungsanleitung

Description of
"Comfort"
(23)
control panel
(continued)
(22)

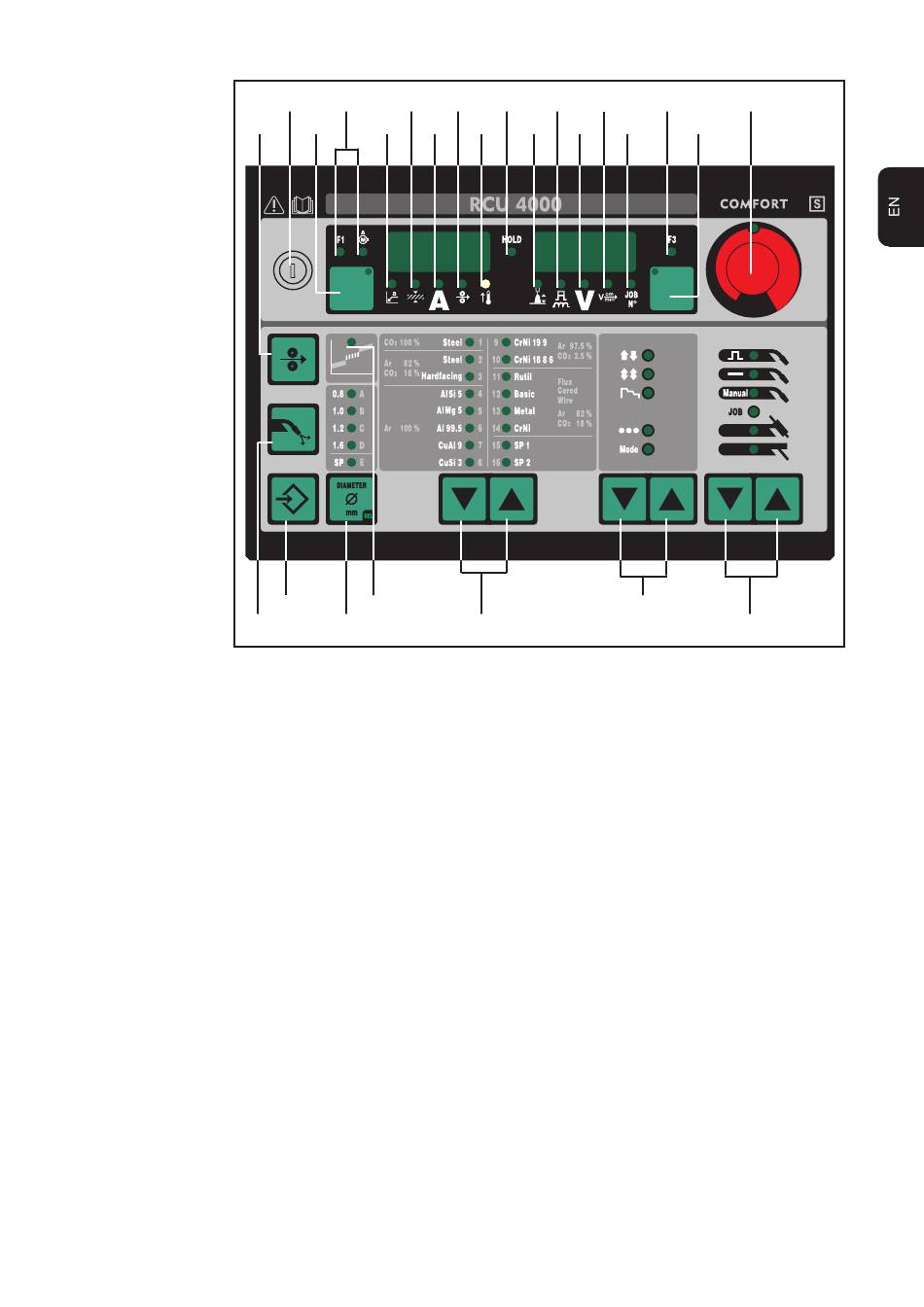

Fig.2
(1) Adjusting dial ... for altering parameters. If the indicator next to the adjusting dial is
(2) Parameter selection button ... for selecting the following parameters:
(3) Parameter selection button ... for selecting the following parameters:
(24) (19) (11)
(10)
(2) (8)
(21) (20)
(7)
"Comfort" control panel
lit up, then the selected parameter is one that can be altered.
- "a"-dimension
- sheet thickness
- welding current
- wire speed
- indicator F1
- Wirefeed-drive current input
If the indicator is lit up on the parameter selection button and on the adjusting dial,
then the indicated / selected parameter can be altered with the adjusting dial.
- arc-length correction
- droplet-detachment / arc-force (dynamic) correction
- welding voltage
- welding speed
- job n°
- indicator F3
If the indicator is lit up on the parameter selection button and on the adjusting dial,
then the indicated / selected parameter can be altered with the adjusting dial.
(12) (14) (16) (17)
(13) (15) (9) (18)
(6)
3 3
(19) (1)
(3)
(5)
(4)
