Seite 1

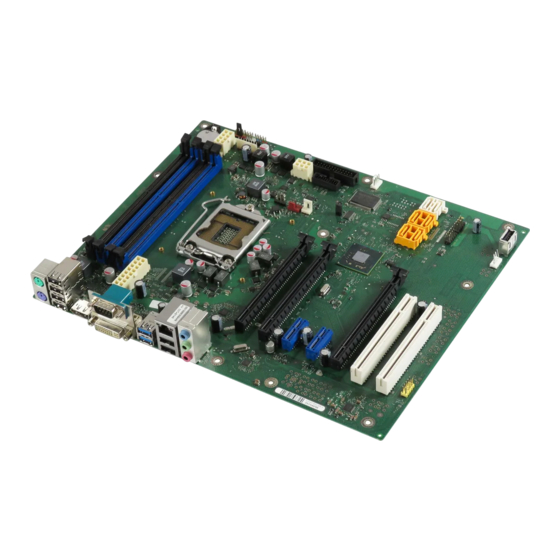

Mainboard Short Description Mainboard D3167...
Seite 2
For driver updates, go to: "http://support.ts.fujitsu.com/download" Should you have any technical questions, please contact: • our Hotline/Service Desk (see the Service Desk list or visit: "http://support.ts.fujitsu.com/contact/servicedesk") • Your sales partner • Your sales office We hope you enjoy working with your new Fujitsu system!
Seite 5
12 = Data negative (P3) 6 = USB3_TX positive (P2) 13 = GND 20 = Not connected 7 = GND 14 = USB3_TX positive (P3) FAN 1 = Heatsink CPU FAN 2 = Front Fan HDD/CPU FAN 3 = Front Fan Slotcards A26361-D3167-Z320-1-7419 Fujitsu...
Seite 6
FAN controlled PSU* / CPU FAN(1) / System (FAN2) / AUX2 (FAN3) / AUX2 (FAN4) TEMP monitored CPU / ONB1 / ONB2 / ONB3 / SIO / PCH Fujitsu Technology Solutions Keyboard Power Button Support Special onboard features D3167 Silent Fan / Silent Fan LT / System Guard / Silent Drives...
Seite 7
Mainboard D3167 First-time setup Deutsch English...
Seite 9
BIOS-Update mit einem USB-Stick ............Fujitsu...
Seite 10
Ankündigung vorbehalten. Fujitsu weist jegliche Verantwortung bezüglich technischer oder redaktioneller Fehler bzw. Auslassungen von sich. Warenzeichen Fujitsu und das Fujitsu-Logo sind eingetragene Warenzeichen von Fujitsu Limited oder seiner Tochtergesellschaften in den Vereinigten Staaten und anderen Ländern. Microsoft und Windows sind Warenzeichen bzw. eingetragene Warenzeichen der Microsoft Corporation in den Vereinigten Staaten und/oder anderen Ländern.
Seite 11
Eine Übersicht der Leistungsmerkmale finden Sie im Datenblatt. Besondere Merkmale Ihr Mainboard ist in verschiedenen Ausbaustufen erhältlich. Abhängig von der Konfiguration Ihres Mainboards besitzt oder unterstützt das Mainboard bestimmte Merkmale. In diesem Handbuch finden Sie die wichtigsten Eigenschaften dieses Mainboards beschrieben. Fujitsu...
Seite 12
Die Position der externen Anschlüsse Ihres Mainboards finden Sie am Anfang des Handbuches. PS/2-Tastaturanschluss, violett PS/2-Mausanschluss, grün LAN-Anschluss (RJ-45) Mikrofonanschluss, rosa Audioeingang (Line in), hellblau USB 2.0 – Universal Serial Bus, schwarz Audioausgang (Line out), hellgrün USB 3.0 – Universal Serial Bus, blau Serielle Schnittstelle, türkis DVI – I DisplayPort Fujitsu...
Seite 13
Sockel LGA 1155, max. 95 W • Eine aktuelle Liste der von diesem Mainboard unterstützten Prozessoren finden Sie im Internet unter: "http://www.fujitsu.com/fts/products". Fassen Sie auf keinen Fall die Unterseite des Prozessors an. Schon leichte Verunreinigungen wie Fett von der Haut können die Funktion des Prozessors beeinträchtigen oder den Prozessor zerstören.
Seite 14
Der Steckplatz für den Prozessor ist zum Schutz der Federkontakte mit einer Schutzkappe abgedeckt. Im Garantiefall kann das Mainboard nur mit befestigter Schutzkappe von Fujitsu Technology Solutions zurück genommen werden! ► Entfernen Sie den Kühlkörper. ► Drücken Sie auf den Hebel und haken Sie ihn aus.
Seite 15
Modulgröße 1, 2, 4 oder 8 GByte pro Modul Eine aktuelle Liste der für dieses Mainboard empfohlenen Speichermodule finden Sie im Internet unter: "http://www.fujitsu.com/fts/products". Es muss mindestens ein Speichermodul eingebaut sein. Speichermodule mit unterschiedlicher Speicherkapazität können kombiniert werden. Es dürfen nur ungepufferte DDR3-Speichermodule mit oder ohne ECC verwendet werden.
Seite 16
BIOS Update BIOS Update Wann sollte ein BIOS-Update durchgeführt werden? Fujitsu Technology Solutions stellt neue BIOS-Versionen zur Verfügung, um die Kompatibilität zu neuen Betriebssystemen, zu neuer Software oder zu neuer Hardware zu gewährleisten. Außerdem können neue BIOS-Funktionen integriert werden. Ein BIOS-Update sollte auch immer dann durchgeführt werden, wenn ein Problem besteht, das sich durch neue Treiber oder neue Software nicht beheben lässt.
Seite 17
BIOS update using a USB stick ............Fujitsu...
Seite 18
Trademarks Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu Limited or its subsidiaries in the United States of America and other countries. Microsoft and Windows are trademarks or registered trademarks of the Microsoft Corporation in the United States of America and/or other countries.
Seite 19
An overview of the features is provided in the data sheet. Special features Your mainboard is available in different configuration levels. Depending on the configuration, your mainboard will be equipped with or provide support for certain features. This manual describes the most important properties of this mainboard. Fujitsu...
Seite 20
PS/2 mouse port, green LAN port (RJ-45) Microphone jack (mono), pink Audio input (Line in), light blue USB 2.0 – Universal Serial Bus, black Audio output (Line out), light green USB 3.0 – Universal Serial Bus, blue Serial interface, turquoise DVI–I DisplayPort Fujitsu...
Seite 21
• A current list of the processors supported by this mainboard is available on the Internet at: "http://www.fujitsu.com/fts/products". Never touch the underside of the processor. Even minor soiling such as grease from the skin can impair the processor’s operation or destroy the processor.
Seite 22
The processor socket is covered with a protective cap to protect the spring contacts. In the event of a warranty case, the mainboard can only be taken back by Fujitsu Technology Solutions with the protective cap secured! ► Remove the heat sink.
Seite 23
1, 2, 4 or 8 GByte per module A current list of the memory modules recommended for this mainboard is available on the Internet at: "http://www.fujitsu.com/fts/products". At least one memory module must be installed. Memory modules with different memory capacities can be combined.
Seite 24
BIOS Update When should a BIOS update be performed? Fujitsu Technology Solutions makes new BIOS versions available to ensure compatibility with new operating systems, new software or new hardware. In addition, new BIOS functions can be integrated. A BIOS update should also always be performed if there is a problem that cannot be solved using new drivers or new software.
