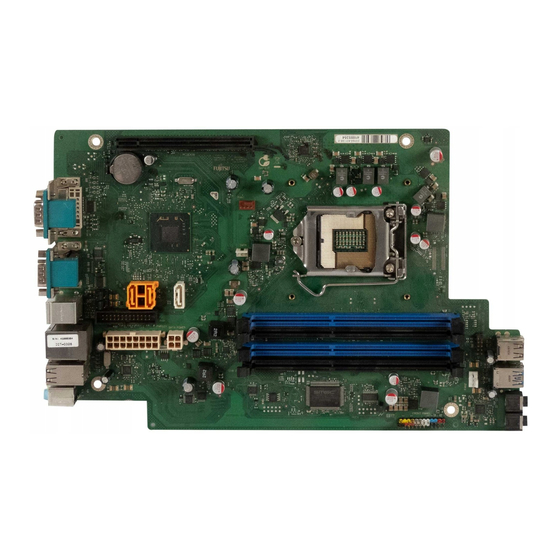

Mainboard Short Description Mainboard D3164...
Seite 2
For driver updates, go to: "http://support.ts.fujitsu.com/download" Should you have any technical questions, please contact: • our Hotline/Service Desk (see the Service Desk list or visit: "http://support.ts.fujitsu.com/contact/servicedesk") • Your sales partner • Your sales office We hope you enjoy working with your new Fujitsu system!
Seite 5
USB stick and allows a BIOS 3 = Data negative Port X 8 = GND recovery. Details can be found in the 4 = Data negative Port Y 9 = Key BIOS manual. Data positive Port X 10 = Not connected Fujitsu...
Seite 6
/ - / - (FAN3) / AUX2 (FAN4) TEMP monitored CPU / ONB1 / ONB2 / ONB3 / SIO / PCH Fujitsu Technology Solutions Keyboard Power Button Support Special onboard features D3164 Silent Fan / Silent Fan LT / System Guard / Silent Drives...
BIOS-Update mit einem USB-Stick ............Fujitsu...
Seite 10
Ankündigung vorbehalten. Fujitsu weist jegliche Verantwortung bezüglich technischer oder redaktioneller Fehler bzw. Auslassungen von sich. Warenzeichen Fujitsu und das Fujitsu-Logo sind eingetragene Warenzeichen von Fujitsu Limited oder seiner Tochtergesellschaften in den Vereinigten Staaten und anderen Ländern. Microsoft und Windows sind Warenzeichen bzw. eingetragene Warenzeichen der Microsoft Corporation in den Vereinigten Staaten und/oder anderen Ländern.
Ihres Mainboards besitzt oder unterstützt das Mainboard bestimmte Merkmale. In diesem Handbuch finden Sie die wichtigsten Eigenschaften dieses Mainboards beschrieben. Weitere Informationen zu Mainboards finden Sie im Handbuch "Basisinformationen Mainboard" auf der DVD "User Documentation" oder "OEM Mainboard" bzw. im Internet. Fujitsu...
Die Position der externen Anschlüsse Ihres Mainboards finden Sie am Anfang des Handbuches. PS/2-Tastaturanschluss, violett PS/2-Mausanschluss, grün LAN-Anschluss (RJ-45) Mikrofonanschluss, rosa Audioeingang (Line in), hellblau USB 2.0 – Universal Serial Bus, schwarz Audioausgang (Line out), hellgrün USB 3.0 – Universal Serial Bus, blau Serielle Schnittstelle, türkis DVI – I DisplayPort Fujitsu...
Sockel LGA1155, max. 95W • Eine aktuelle Liste der von diesem Mainboard unterstützten Prozessoren finden Sie im Internet unter: "http://www.fujitsu.com/fts/products". Fassen Sie auf keinen Fall die Unterseite des Prozessors an. Schon leichte Verunreinigungen wie Fett von der Haut können die Funktion des Prozessors beeinträchtigen oder den Prozessor zerstören.
Der Steckplatz für Prozessor ist zum Schutz der Federkontakte mit einer Schutzkappe abgedeckt. Im Garantiefall kann das Mainboard nur mit befestigter Schutzkappe von Fujitsu Technology Solutions zurück genommen werden! ► Entfernen Sie den Kühlkörper. ► Drücken Sie auf den Hebel und haken Sie ihn aus.
Modulgröße 1, 2, 4 oder 8 GByte pro Modul Eine aktuelle Liste der für dieses Mainboard empfohlenen Speichermodule finden Sie im Internet unter: "http://www.fujitsu.com/fts/products". Es muss mindestens ein Speichermodul eingebaut sein. Speichermodule mit unterschiedlicher Speicherkapazität können kombiniert werden. Es dürfen nur ungepufferte DDR3-Speichermodule ohne ECC verwendet werden.
BIOS Update BIOS Update Wann sollte ein BIOS-Update durchgeführt werden? Fujitsu Technology Solutions stellt neue BIOS-Versionen zur Verfügung, um die Kompatibilität zu neuen Betriebssystemen, zu neuer Software oder zu neuer Hardware zu gewährleisten. Außerdem können neue BIOS-Funktionen integriert werden. Ein BIOS-Update sollte auch immer dann durchgeführt werden, wenn ein Problem besteht, das sich durch neue Treiber oder neue Software nicht beheben lässt.
Seite 17
BIOS update using a USB stick ............Fujitsu...
Seite 18
Trademarks Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu Limited or its subsidiaries in the United States of America and other countries. Microsoft and Windows are trademarks or registered trademarks of the Microsoft Corporation in the United States of America and/or other countries.
This manual describes the most important properties of this mainboard. Additional information on mainboards is provided in the manual "Basic information on mainboard" on the "User Documentation" or "OEM Mainboard" CD, or on the Internet. Fujitsu...
PS/2 mouse port, green LAN port (RJ-45) Microphone jack (mono), pink Audio input (Line in), light blue USB 2.0 – Universal Serial Bus, black Audio output (Line out), light green USB 3.0 – Universal Serial Bus, blue Serial interface, turquoise DVI–I DisplayPort Fujitsu...
• A list of the processors currently supported by this mainboard is available on the Internet at: "http://www.fujitsu.com/fts/products". Never touch the underside of the processor. Even minor soiling such as grease from the skin can impair the operation of the processor and may destroy the processor.
Procedure The processor slot is covered with a protective cap to protect the spring contacts. In the event of a return for warranty, the mainboard will only be accepted by Fujitsu Technology Solutions with the protective cap firmly attached. ► Remove the heat sink.
1, 2, 4 or 8 GByte per module A current list of the memory modules recommended for this mainboard is available on the Internet at: "http://www.fujitsu.com/fts/products". At least one memory module must be installed. Memory modules with different memory capacities can be combined.
BIOS Update When should a BIOS update be performed? Fujitsu Technology Solutions makes new BIOS versions available to ensure compatibility with new operating systems, new software or new hardware. In addition, new BIOS functions can be integrated. A BIOS update should also always be performed if there is a problem that cannot be solved using new drivers or new software.
