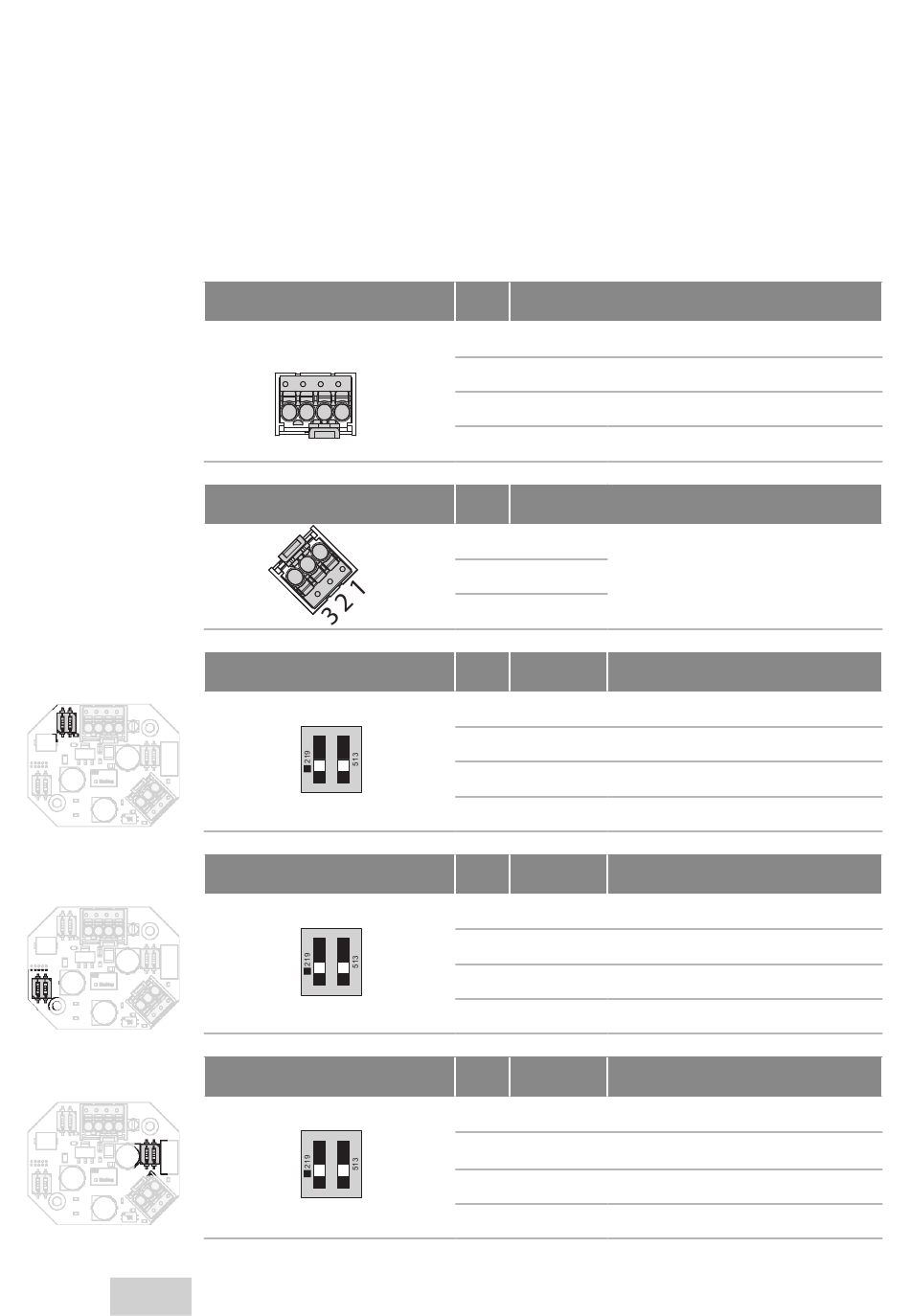

Installation
Connections (including: CPU connections)
Hi-O connections
1 2 3 4
CAN bus connections
DIP switch HiO
ON
CTS
1
2
DIP switch LED
ON
CTS
1
2
DIP switch CAN
ON
CTS
1
2
Description
1
CAN H
white wire
2
CAN L
brown wire
3
VB +
green wire
4
VB –
yellow wire
Description
1
CAN H
2
CAN L
3
GND-CAN
DIP
Position
Effect
1
ON
Terminating resistor
1
OFF
no terminating resistor
2
ON
Hi-O group 1
2
OFF
Hi-O group 0
DIP
Position
Effect
1
ON
LEDs HiO on
1
OFF
LEDs HiO off
2
ON
LEDs CAN on
2
OFF
LEDs CAN off
DIP
Position
Effect
1
ON
Terminating resistor
1
OFF
no terminating resistor
2
ON
–
2
OFF
–
