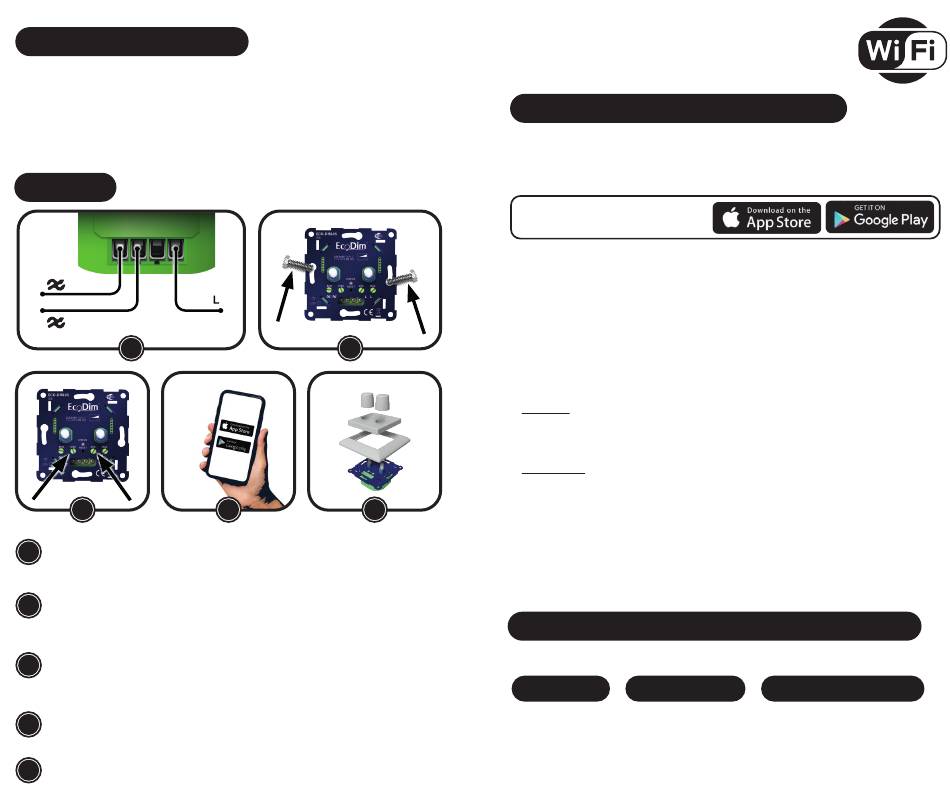

EcoDim ECO-DIM.05 WiFi Handbuch Seite 4

Suitable cover plate brands
• Berker by Hager
• Busch-Jaeger
• GIRA
Suitable for all brands of duo cover material with D-shaped hole. If existing cover material
does not have a D-shaped hole, EcoDim also offers dimmer switches (including central plate
& cover material) that fit the above-mentioned frame brands.
Installatie
1
2
1
3
Step 1
1
Always ensure that the electricity is switched off during installation. Then connect the
power wires as shown in the 'Wiring diagram for multiple lamps' .
Step 2
2
Now install the dimmer in the flush-mounting box.
Step 3
Switch the electricity on again. Turn on the connected lamps using the dimmer shaft.
3
Now set the MIN & MAX as indicated under 'Set Min. light level' and 'Set Max. light
level' . .
Step 4
4
Now connect the dimmer to your SMART home system.
Step 5
5
Replace the cover frame, the central plate and the 2 dimmer buttons on the dimmer.
• JUNG
• Merten by Schneider
• PEHA
2
4 5
ECO-DIM.05 WiFi
Suitable for WiFi smarthome apps (Tuya)
• Google Assistant/ • Trust
Home • Woox
• Amazon Alexa • Hombli
• Nedis • Hoftronic
DOWNLOAD THE APP AT:
Step 1
Download compatible APP on Apple store or Google play.
Step 2
Make sure the phone connected to 2.4G WiFi (5G is not support)
Step 3
Follow the APP instruction to creat an account if you don't have one.
Step 4: Pairing device
Auto Scan: Press the reset button 2x to put the dimmer into pairing mode. The LED will
flash blue. Tap + > Add Device > Auto Scan. The discovery process will begin. When your
product is discovered, tap 'next' .
Add Manually: Press the reset button 2x to put the dimmer into pairing mode. The LED
will flash blue. Tap "+" on the right corner, choose lighting on the left row, choose light
source (BLE+WiFi). Confirm your Wi-Fi details and tap 'confirm' . This will begin the pairing
process, which will add your Wi-Fi dimmer to the app.
Step 5
Once pairing is complete, you can edit your WiFi dimmer name (optional).
Reduction of connection capacity by PowerFactor
When calculating the LED connection power of the dimmer, take into account the PowerFactor
of the dimmable LED lighting. See the global calculation below for this.
NUMBER OF LED LIGHT
=
NOMINAL POWER
SOURCES
Example: 10 lamps * (5W per lamp / 0.8 PowerFactor) = 62.5 Watt
Simplified EU Declaration of Conformity:
We, EcoDim B.V., hereby declare that this product conforms to the directives applicable from the
European Union.
The full text of the EU declaration of conformity can be consulted at the following
internet address: https://www.ecodim.nl/en/service/ecodim-certificering
