EcoDim ECO-DIM.05 WiFi Handbuch Seite 3

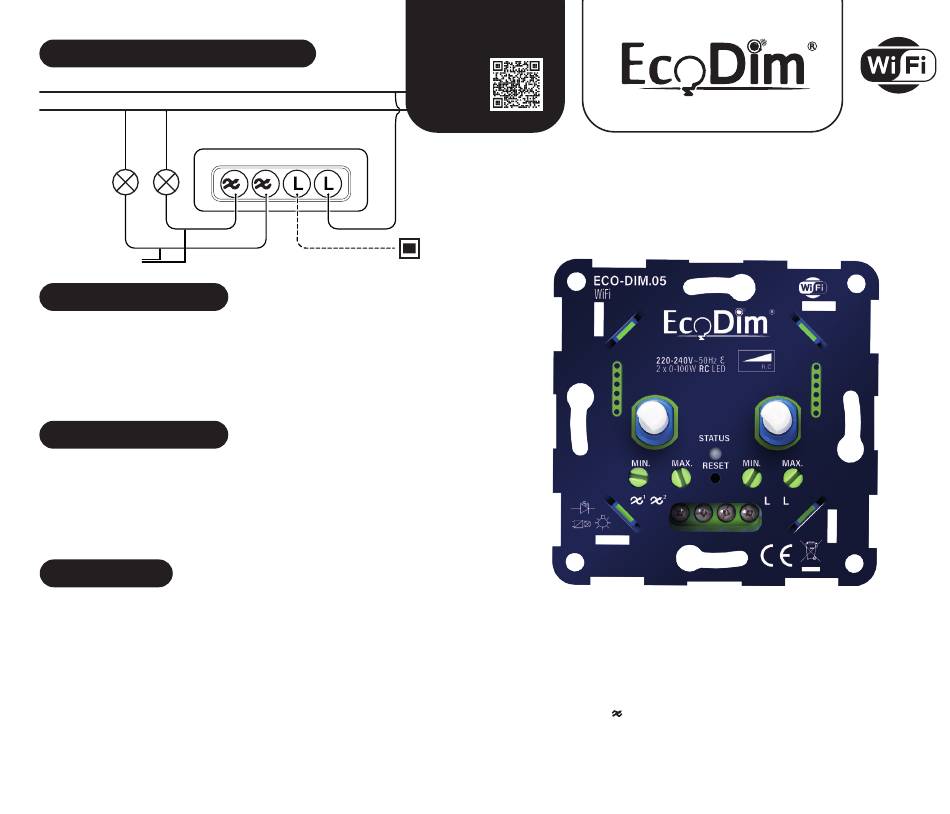

Wiring diagram for multiple lamps
L wire
(Phase wire, often brown)
N wire
(Neutral wire, often blue)
LED
LOAD
(Switching wire, often black)
Setting min. light level
Turn on the lights using the dimmer shaft. Then turn the dimmer shaft as far as possible to
the left (minimum light output). Do the lights blink? Then use a screwdriver to slowly turn
the MIN potentiometer to the right for stable light. Is the light already stable? Then slowly
turn the MIN to the left for even better dimmability, to just before the point where the lamps
start blinking. This is the best dimmability of the LED lamps. You can set this for both light
groups.
Setting max. light level
Turn on the lights using the dimmer shaft. Then turn the dimmer shaft as far as possible to
the right (maximum light output). Do the lights blink? Then use a screwdriver to slowly turn
the MAX potentiometer to the left for stable light. Is the light already stable? Then slowly
turn the MAX to the right for even better dimmability, to just before the point when the
lamps start flashing. This is the best dimmability of the LED lamps. You can set this for both
light groups.
Specifications
Connection voltage: 220-240VAC 50Hz
Frequency: 2,4 GHz
Dimming technology: Trailing edge (R,C)
Dimmable LED lamps: 2x 0-100W (R,C)
Lamps with electronic transformers: 100W max. per group
Halogen and incandescent lamps: 100W max. per group
• Suitable for both retrofit lamp bulbs and new installations.
• Two-wire connection - no neutral wire required.
• Soft start system for longer LED lamp life.
• Built-in protection for temperature protection and overload.
DIMMER
1 2
Loop-through possible to
adjacent socket/switch.
EN
Manual
ECO-DIM.05 WiFi
Led dual dimmer trailing edge (R,C)
Note:
• This is a two-wire dimmer and it should be connected as shown under the heading
'Wiring diagram for multiple lamps' .
• Installation of the dimmer on a 230V mains should be carried out by a qualified
professional, taking into account national regulations. Ensure that the electricity is
switched off during all work.
• Dimmers are not suitable for wound/magnetic or core transformers.
• The right port ( ) must always be connected for a connection.
2
