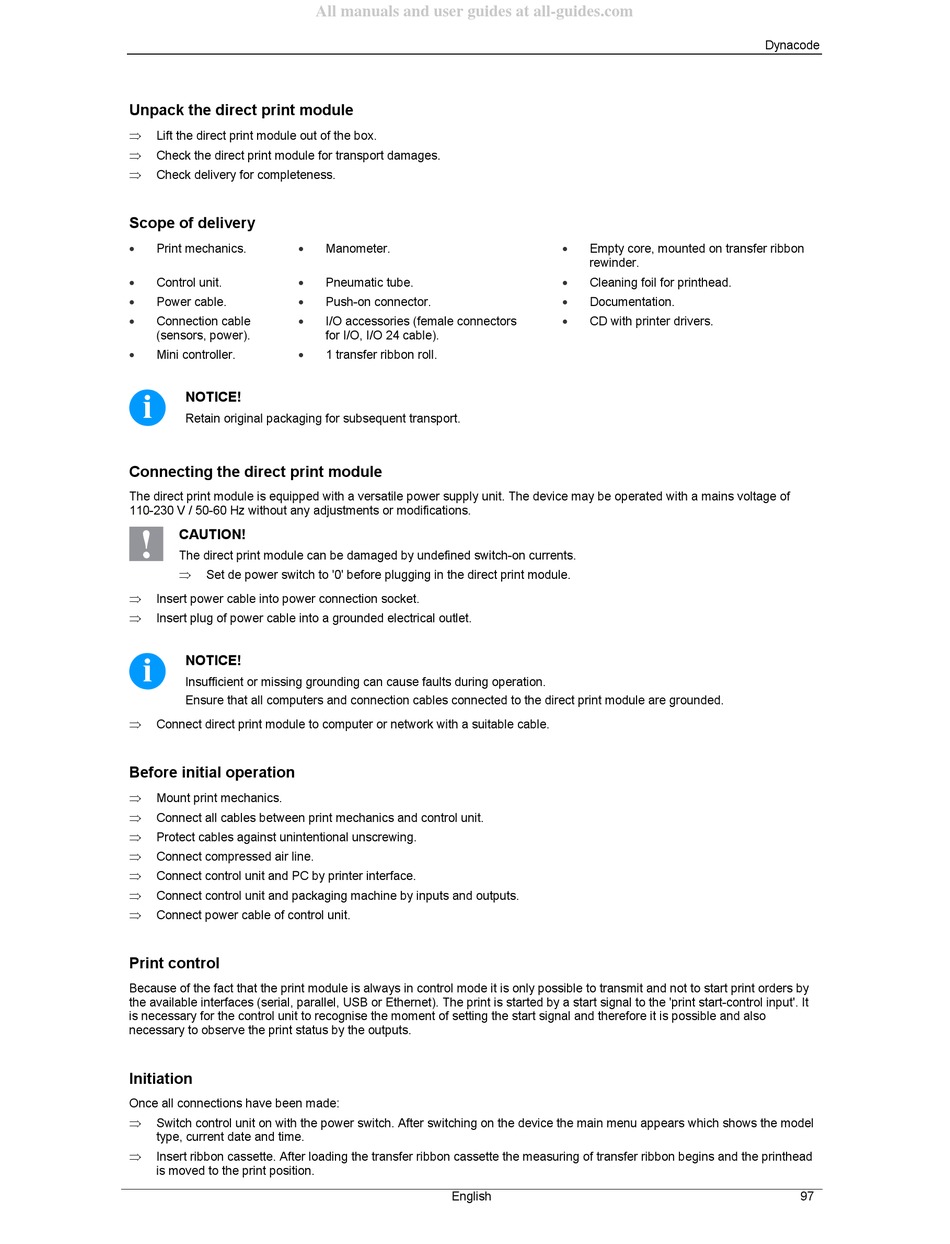

Unpack the direct print module
Lift the direct print module out of the box.
Check the direct print module for transport damages.
Check delivery for completeness.
Scope of delivery
Print mechanics.
Control unit.
Power cable.
Connection cable
(sensors, power).
Mini controller.
NOTICE!
Retain original packaging for subsequent transport.
Connecting the direct print module
The direct print module is equipped with a versatile power supply unit. The device may be operated with a mains voltage of
110-230 V / 50-60 Hz without any adjustments or modifications.
CAUTION!
The direct print module can be damaged by undefined switch-on currents.
Set de power switch to '0' before plugging in the direct print module.
Insert power cable into power connection socket.
Insert plug of power cable into a grounded electrical outlet.
NOTICE!
Insufficient or missing grounding can cause faults during operation.
Ensure that all computers and connection cables connected to the direct print module are grounded.
Connect direct print module to computer or network with a suitable cable.
Before initial operation
Mount print mechanics.
Connect all cables between print mechanics and control unit.
Protect cables against unintentional unscrewing.
Connect compressed air line.
Connect control unit and PC by printer interface.
Connect control unit and packaging machine by inputs and outputs.
Connect power cable of control unit.
Print control
Because of the fact that the print module is always in control mode it is only possible to transmit and not to start print orders by
the available interfaces (serial, parallel, USB or Ethernet). The print is started by a start signal to the 'print start-control input'. It
is necessary for the control unit to recognise the moment of setting the start signal and therefore it is possible and also
necessary to observe the print status by the outputs.
Initiation
Once all connections have been made:
Switch control unit on with the power switch. After switching on the device the main menu appears which shows the model
type, current date and time.
Insert ribbon cassette. After loading the transfer ribbon cassette the measuring of transfer ribbon begins and the printhead
is moved to the print position.
All manuals and user guides at all-guides.com
Manometer.
Pneumatic tube.
Push-on connector.
I/O accessories (female connectors
for I/O, I/O 24 cable).
1 transfer ribbon roll.
English
Empty core, mounted on transfer ribbon
rewinder.
Cleaning foil for printhead.
Documentation.
CD with printer drivers.
Dynacode
97
