Key:

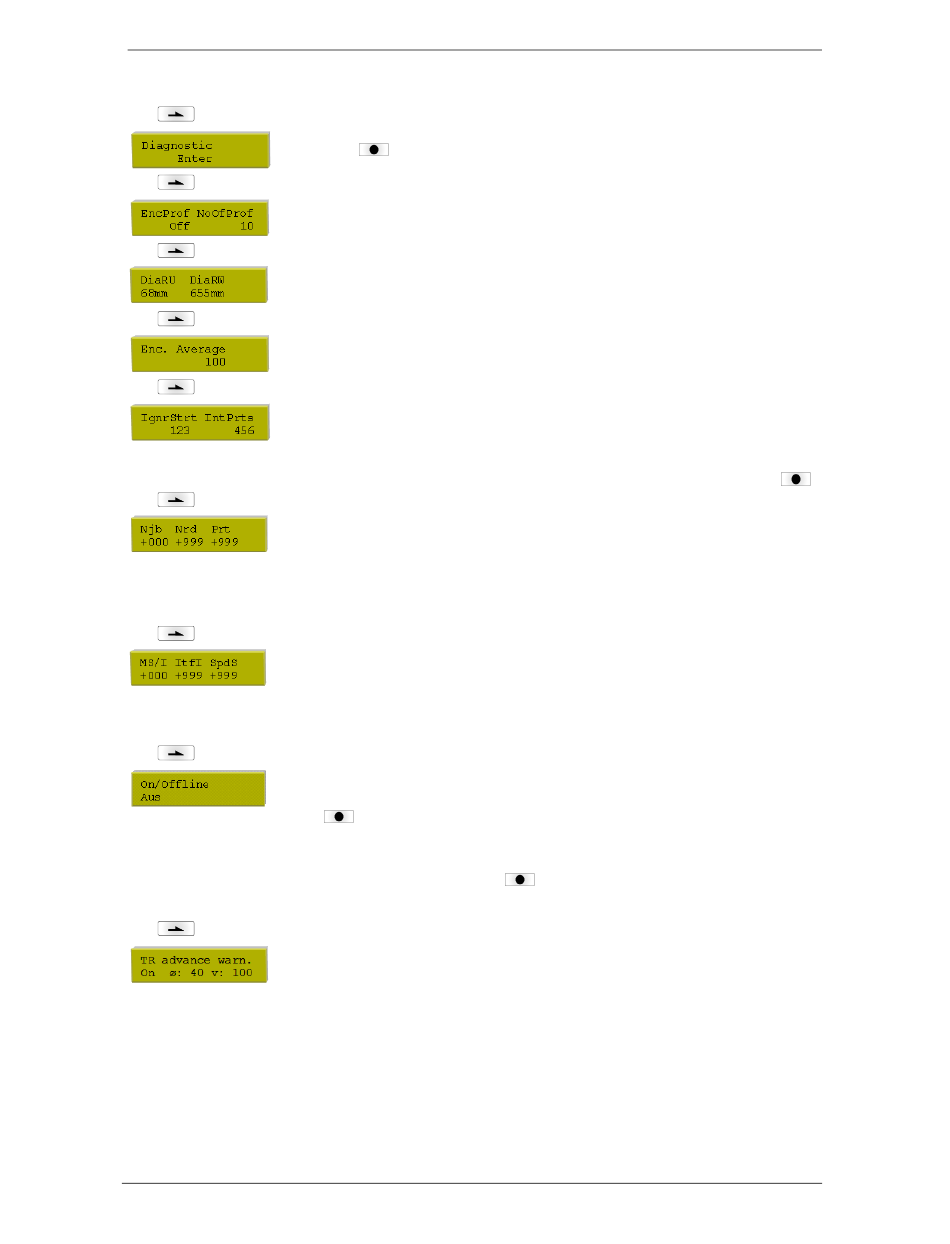

Diagnostic:
Press key
Key:
Encoder Profiling:
The encoder values with print start in logging files are registered on CF card. By means of this
data, a graphic chart of the encoder curve can be created.
Key:
Transfer ribbon roll diameter:
DiaRW = Diameter of transfer ribbon rewinding roll.
DiaRU = Diameter of transfer ribbon unwinding roll.
Key:
Encoder average:
Number of values by which the encoder signals is averaged.
Key:
Diagnostic - Counter:
Relevant results are counted and registered in RAM memory. The protocole get lost after
switching off the device.
IgnrStrt = Counter for ignored start signals.
IntPrts = Counter for cancelled print orders.
Select with the cursor the value for which you need more information and then press key
Key:
NJb = No job
Counter for ignored start signals because the print order was not active.
NRd = Not ready
Counter for ignored start signals because the print order was not ready (stopped or error
message).
Prt = Printing
Counter for ignored start signals, during the device prints/is active.
Key:
MS/I = Manual stopped/interrupted
Stop key onto foil keyboard, panel or in a program was pressed.
ItfI = Interface interrupted
The print order was cancelled because new data was received by an interface.
SpedS = Speed stopped
The print order was cancelled because the measured print speed was too slow.
Key:
Online/Offline:
This function is activated e.g. if the transfer ribbon is to be changed. It is avoided that a print
order is processed although the module is not ready. If the function is activated then press the
key
display.
Standard: Off
Online: Data can be received by interface. The keys of the foil keyboard are only active, if you
changed in the Offline mode with key
Offline: The keys of the foil keyboard are still active but received data are not processed. If the
module is again in Online mode then new print orders can be again received.
Key:
TRB = Transfer ribbon advance warning:
Before the end of transfer ribbon, a signal is send by the control output.
Warning diameter:
Setting of transfer ribbon advance warning diameter.
In case you enter a value in mm then a signal appears via control output when reaching this
diameter (measured at transfer ribbon roll).
v = Reduced print speed:
Setting of the reduced print speed. This can be set in the limits of the normal print speed.
Additionally there are the following settings:
−: No reduced print speed
0: Printer stops at reaching the warning diameter and indicates 'ribbon error'.
