Vitalizer Mk3-T – Manual
6

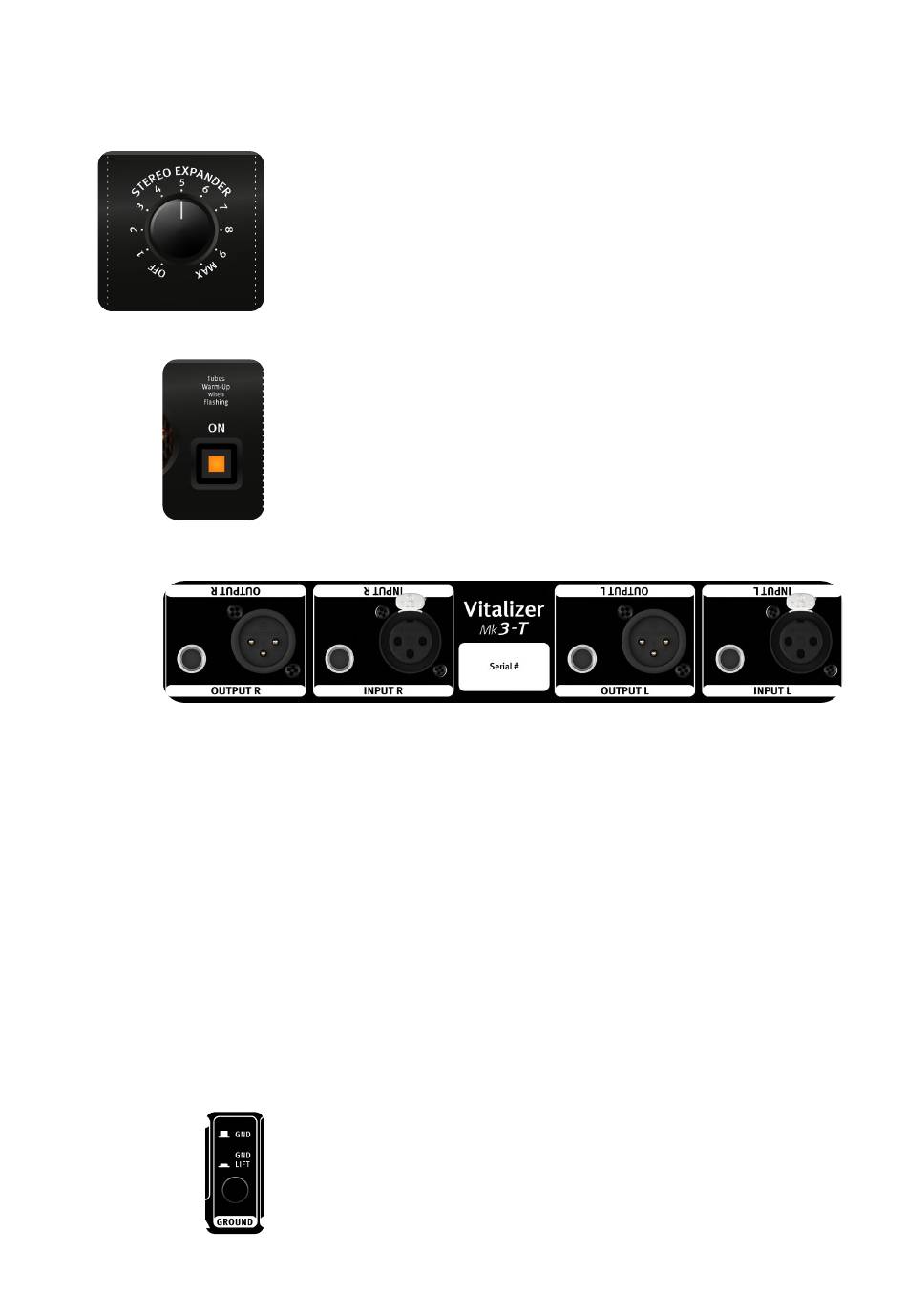

Stereo Expander

The Stereo Expander increases the width of the stereo image.
Working on established inter-channel phase principles, the
Stereo Expander control is be used to increase the subjective
soundstage width of any stereo source.
The On switch is used to activate the Vitalizer Mk3-T.
When activated, the switch lights up. If the device is in bypass
mode, the switch is not illuminated.
When this switch is flashing, the device is in "warm-up" mode. The tubes are being brought
to the optimum operating temperature.

Inputs and outputs

All inputs and outputs of the Vitalizer Mk3-T are equipped with
Neutrik XLR jacks with gold-plated contacts and Neutrik TRS
jacks. The XLR and TRS jacks are connected in parallel. The
signal transmission is electronically balanced with a nominal
level of +6 dBu.
Tip: On the output side, there are two signals per output.The processed signal can there-
fore be sent to two different devices. In case of a double assignment of the inputs, the two
input signals are mixed together.
Ground
The Ground switch on the back of the Vitalizer Mk3-T can be
used to eliminate ground loops by disconnecting the internal
ground from the housing ground when the switch is pressed.
