System Map: Front, Left & Right Views (Model B)
2

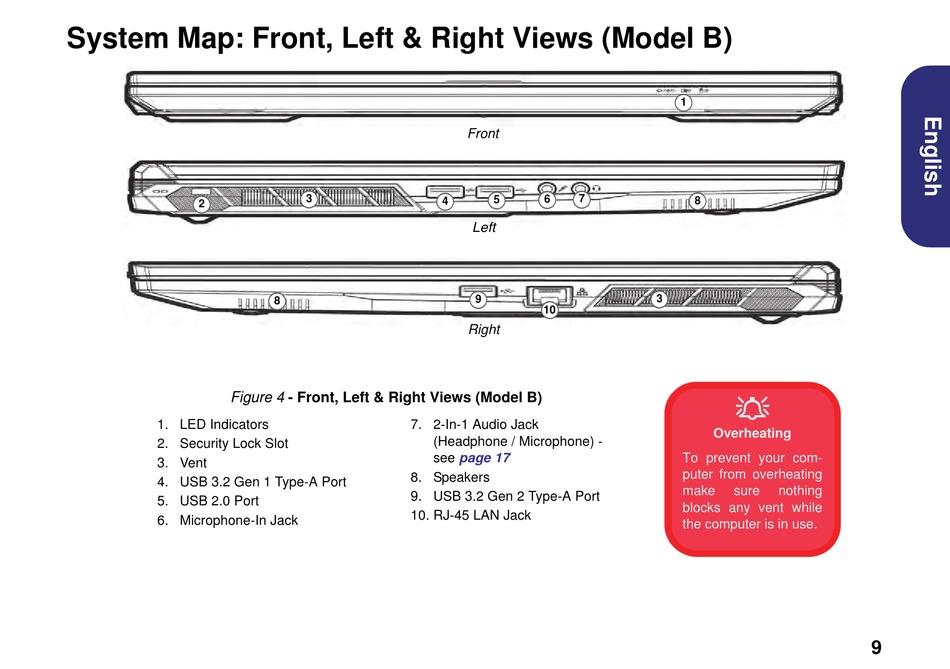

Figure 4 - Front, Left & Right Views (Model B)
1. LED Indicators
2. Security Lock Slot
3. Vent
4. USB 3.2 Gen 1 Type-A Port
5. USB 2.0 Port
6. Microphone-In Jack
3
4
8
7. 2-In-1 Audio Jack
(Headphone / Microphone) -
see
8. Speakers
9. USB 3.2 Gen 2 Type-A Port
10. RJ-45 LAN Jack
Front
6 7
5
Left
9
10
Right
page 17
1
8
3

Overheating
To prevent your com-
puter from overheating
make sure nothing
blocks any vent while
the computer is in use.
