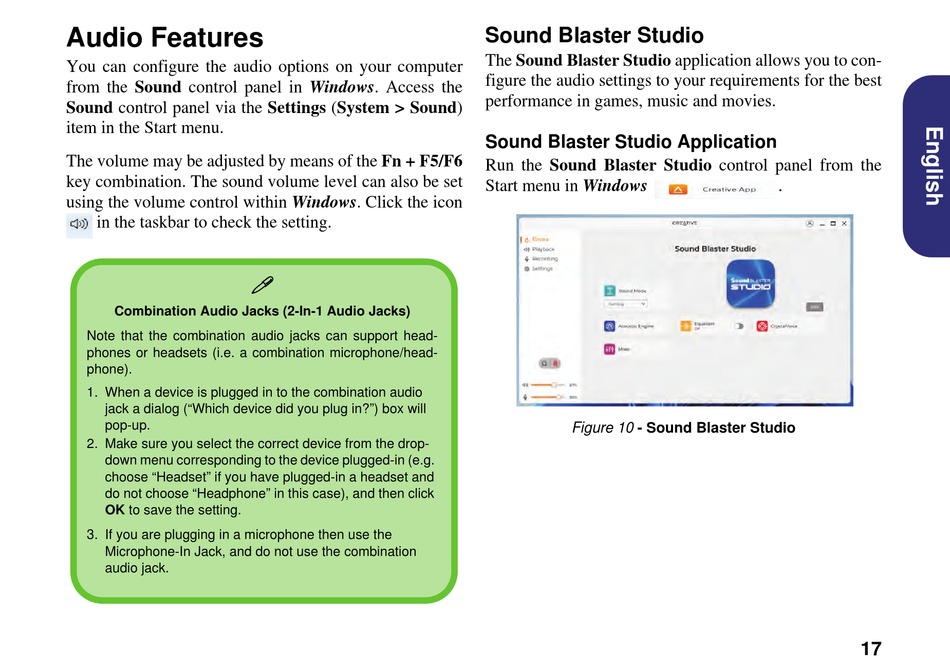

Audio Features - exone go Expert 1730 X13 Handbuch

Audio Features

You can configure the audio options on your computer
from the Sound control panel in Windows. Access the
Sound control panel via the Settings (System > Sound)
item in the Start menu.
The volume may be adjusted by means of the Fn + F5/F6
key combination. The sound volume level can also be set
using the volume control within Windows. Click the icon
in the taskbar to check the setting.
Combination Audio Jacks (2-In-1 Audio Jacks)
Note that the combination audio jacks can support head-
phones or headsets (i.e. a combination microphone/head-
phone).
1. When a device is plugged in to the combination audio
jack a dialog ("Which device did you plug in?") box will
pop-up.
2. Make sure you select the correct device from the drop-
down menu corresponding to the device plugged-in (e.g.
choose "Headset" if you have plugged-in a headset and
do not choose "Headphone" in this case), and then click
OK to save the setting.
3. If you are plugging in a microphone then use the
Microphone-In Jack, and do not use the combination
audio jack.

Sound Blaster Studio
The Sound Blaster Studio application allows you to con-
figure the audio settings to your requirements for the best
performance in games, music and movies.
Sound Blaster Studio Application
Run the Sound Blaster Studio control panel from the
Start menu in Windows
Figure 10 - Sound Blaster Studio
.
17
