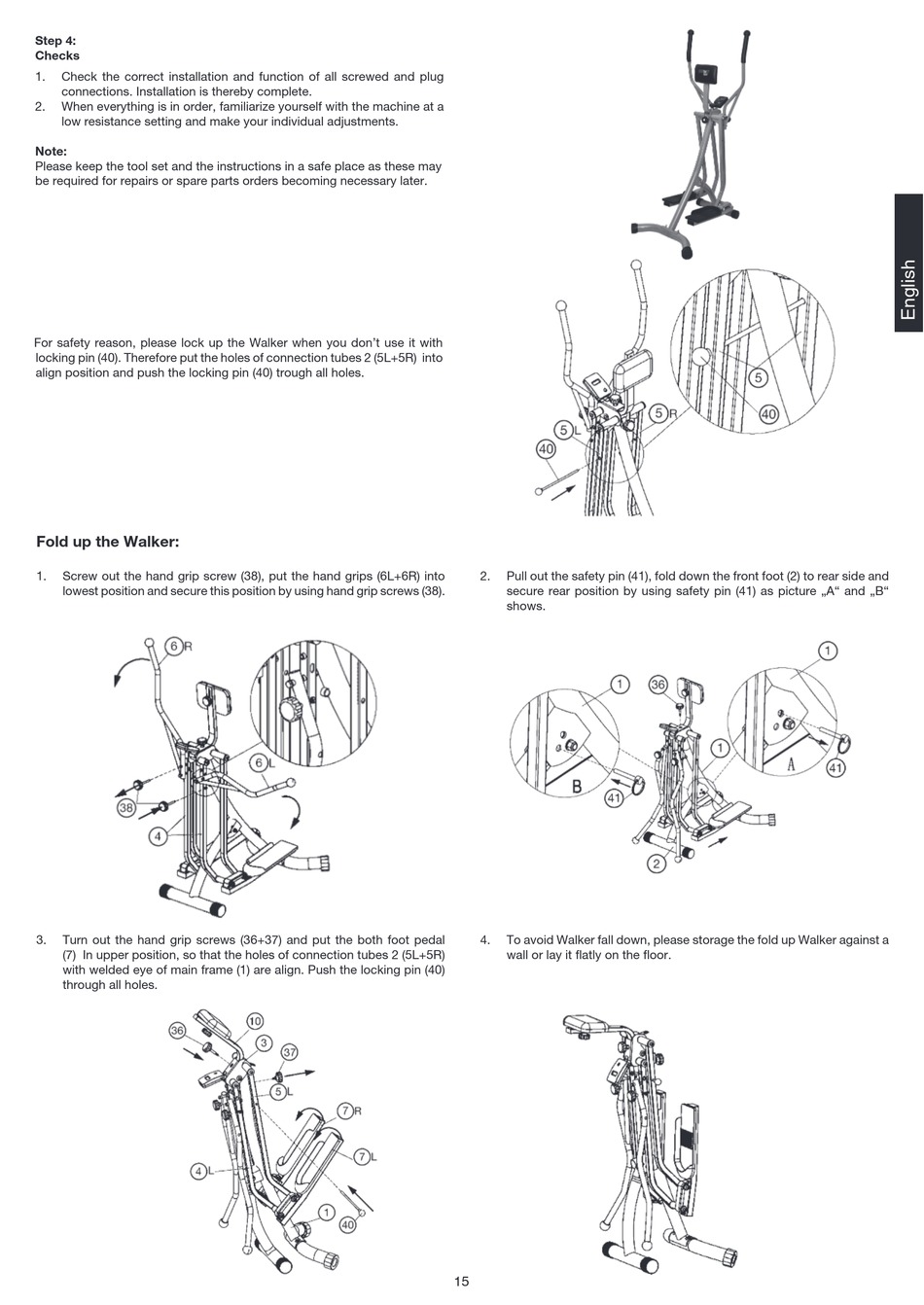

Step 4:
Checks
1.
Check the correct installation and unction o all screwed and plug
connections. Installation is thereby complete.
2.
When everything is in order, amiliarize yoursel with the machine at a
low resistance setting and make your individual adjustments.
Note:
Please keep the tool set and the instructions in a sae place as these may
be required or repairs or spare parts orders becoming necessary later.
For saety reason, please lock up the Walker when you don't use it with
locking pin (40). Thereore put the holes o connection tubes 2 (5L+5R) into
align position and push the locking pin (40) trough all holes.
Fold up the Walker:
1.
Screw out the hand grip screw (38), put the hand grips (6L+6R) into
lowest position and secure this position by using hand grip screws (38).
3.
Turn out the hand grip screws (36+37) and put the both oot pedal
(7) In upper position, so that the holes o connection tubes 2 (5L+5R)
with welded eye o main rame (1) are align. Push the locking pin (40)
through all holes.
2.
Pull out the saety pin (41), old down the ront oot (2) to rear side and
secure rear position by using saety pin (41) as picture „A" and „B"
shows.
4.
To avoid Walker all down, please storage the old up Walker against a
wall or lay it fatly on the foor.
15
