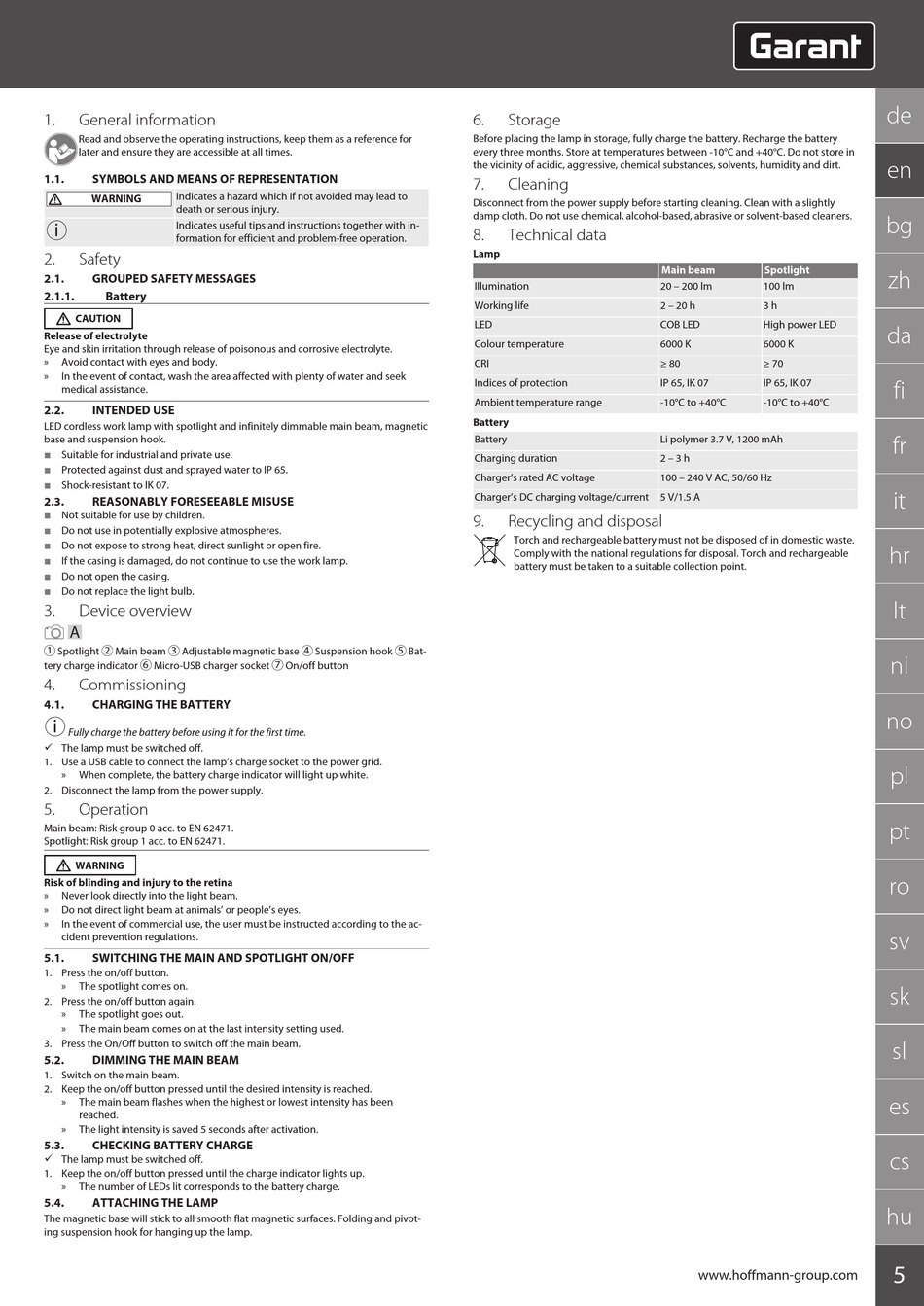

Garant 200 Bedienungsanleitung Seite 5

1. General information
Read and observe the operating instructions, keep them as a reference for
later and ensure they are accessible at all times.
1.1. SYMBOLS AND MEANS OF REPRESENTATION
Indicates a hazard which if not avoided may lead to
WARNING
death or serious injury.
i
Indicates useful tips and instructions together with in-
formation for efficient and problem-free operation.
2. Safety
2.1. GROUPED SAFETY MESSAGES
2.1.1. Battery
CAUTION
Release of electrolyte
Eye and skin irritation through release of poisonous and corrosive electrolyte.
» Avoid contact with eyes and body.
» In the event of contact, wash the area affected with plenty of water and seek
medical assistance.
2.2. INTENDED USE
LED cordless work lamp with spotlight and infinitely dimmable main beam, magnetic
base and suspension hook.
 Suitable for industrial and private use.
 Protected against dust and sprayed water to IP 65.
 Shock-resistant to IK 07.
2.3. REASONABLY FORESEEABLE MISUSE
 Not suitable for use by children.
 Do not use in potentially explosive atmospheres.
 Do not expose to strong heat, direct sunlight or open fire.
 If the casing is damaged, do not continue to use the work lamp.
 Do not open the casing.
 Do not replace the light bulb.
3. Device overview
A
1 Spotlight 2 Main beam 3 Adjustable magnetic base 4 Suspension hook 5 Bat-
tery charge indicator 6 Micro-USB charger socket 7 On/off button
4. Commissioning
4.1. CHARGING THE BATTERY
i
Fully charge the battery before using it for the first time.
ü The lamp must be switched off.
1. Use a USB cable to connect the lamp's charge socket to the power grid.
» When complete, the battery charge indicator will light up white.
2. Disconnect the lamp from the power supply.
5. Operation
Main beam: Risk group 0 acc. to EN 62471.
Spotlight: Risk group 1 acc. to EN 62471.
WARNING
Risk of blinding and injury to the retina
» Never look directly into the light beam.
» Do not direct light beam at animals' or people's eyes.
» In the event of commercial use, the user must be instructed according to the ac-
cident prevention regulations.
5.1. SWITCHING THE MAIN AND SPOTLIGHT ON/OFF
1. Press the on/off button.
» The spotlight comes on.
2. Press the on/off button again.
» The spotlight goes out.
» The main beam comes on at the last intensity setting used.
3. Press the On/Off button to switch off the main beam.
5.2. DIMMING THE MAIN BEAM
1. Switch on the main beam.
2. Keep the on/off button pressed until the desired intensity is reached.
» The main beam flashes when the highest or lowest intensity has been
reached.
» The light intensity is saved 5 seconds after activation.
5.3. CHECKING BATTERY CHARGE
ü The lamp must be switched off.
1. Keep the on/off button pressed until the charge indicator lights up.
» The number of LEDs lit corresponds to the battery charge.
5.4. ATTACHING THE LAMP
The magnetic base will stick to all smooth flat magnetic surfaces. Folding and pivot-
ing suspension hook for hanging up the lamp.
6. Storage
Before placing the lamp in storage, fully charge the battery. Recharge the battery
every three months. Store at temperatures between -10°C and +40°C. Do not store in
the vicinity of acidic, aggressive, chemical substances, solvents, humidity and dirt.
7. Cleaning
Disconnect from the power supply before starting cleaning. Clean with a slightly
damp cloth. Do not use chemical, alcohol-based, abrasive or solvent-based cleaners.
8. Technical data
Lamp
Illumination
Working life
LED
Colour temperature
CRI
Indices of protection
Ambient temperature range
Battery
Battery
Charging duration
Charger's rated AC voltage
Charger's DC charging voltage/current 5 V/1.5 A
9. Recycling and disposal
Torch and rechargeable battery must not be disposed of in domestic waste.
Comply with the national regulations for disposal. Torch and rechargeable
battery must be taken to a suitable collection point.
Main beam Spotlight
20 – 200 lm 100 lm
2 – 20 h 3 h
COB LED High power LED
6000 K 6000 K
≥ 80 ≥ 70
IP 65, IK 07 IP 65, IK 07
-10°C to +40°C -10°C to +40°C
Li polymer 3.7 V, 1200 mAh
2 – 3 h
100 – 240 V AC, 50/60 Hz
