Technical Instructions 5020.B

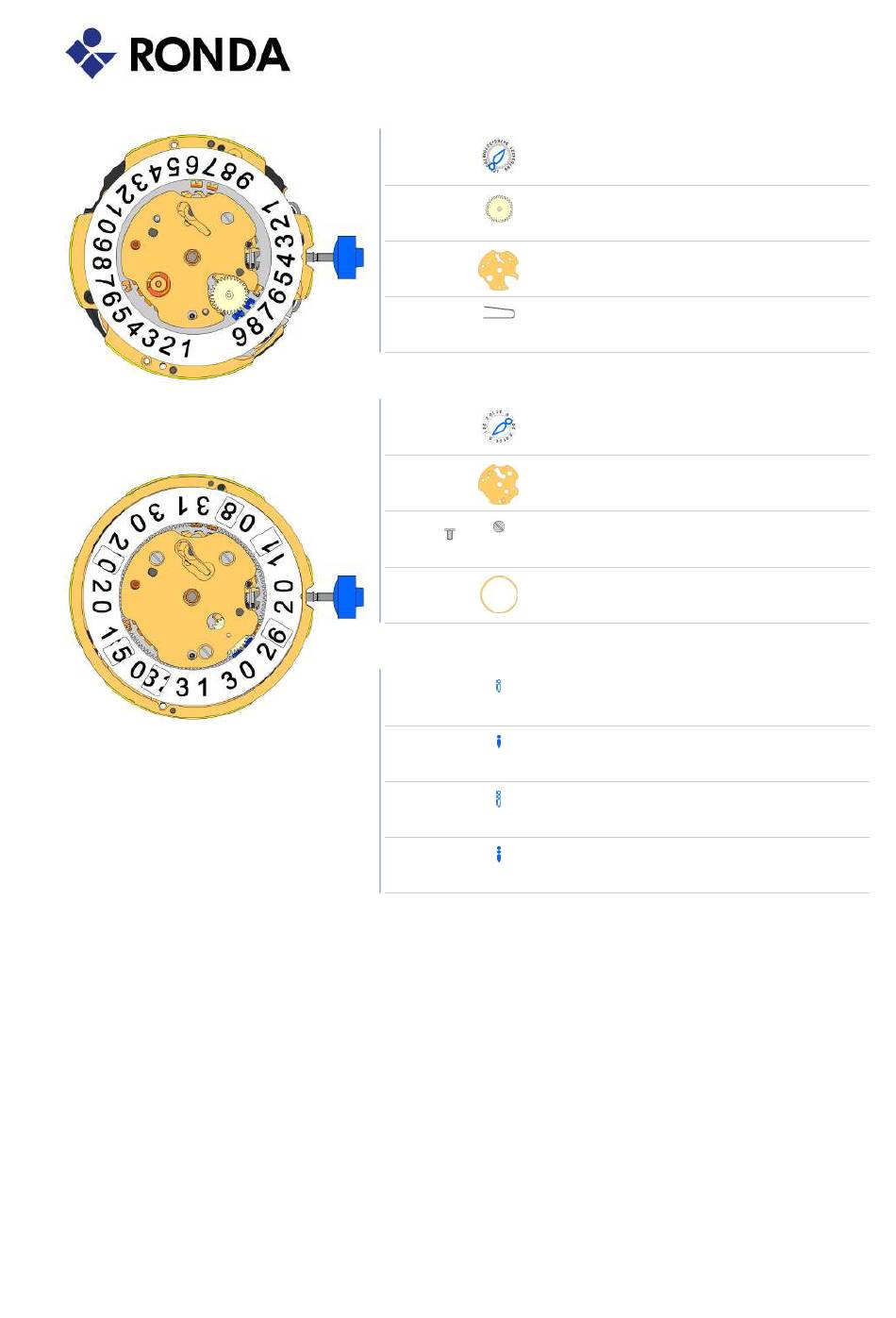

3504.214.AD.1.A Units indicator (standard)
Nick of the indicator at 3 o`clock.
64.
3147.054 Tens intermediate wheel
65.
2130.141 Date indicator maintaining plate
66. Nick of the indicator at 3 o`clock.
3905.070 Date jumper spring
67. Insert the date jumper spring in the provided opening.
3504.215.AD.1.A Tens indicator (standard)
68. Nick of the indicator at 3 o`clock.
2130.140.G Date mechanism maintaining plate
69. Date mechanism maintaining plate held by 2 screws 4000.250.
4000.250 Screw
70.
3506.072.G Dial support
71.
8200 Moebius 8200
72.
9014 Moebius 9014
73.
124 Jismaa 124
74.
9020 Moebius 9020
75.
