Technical Instructions 5020.B

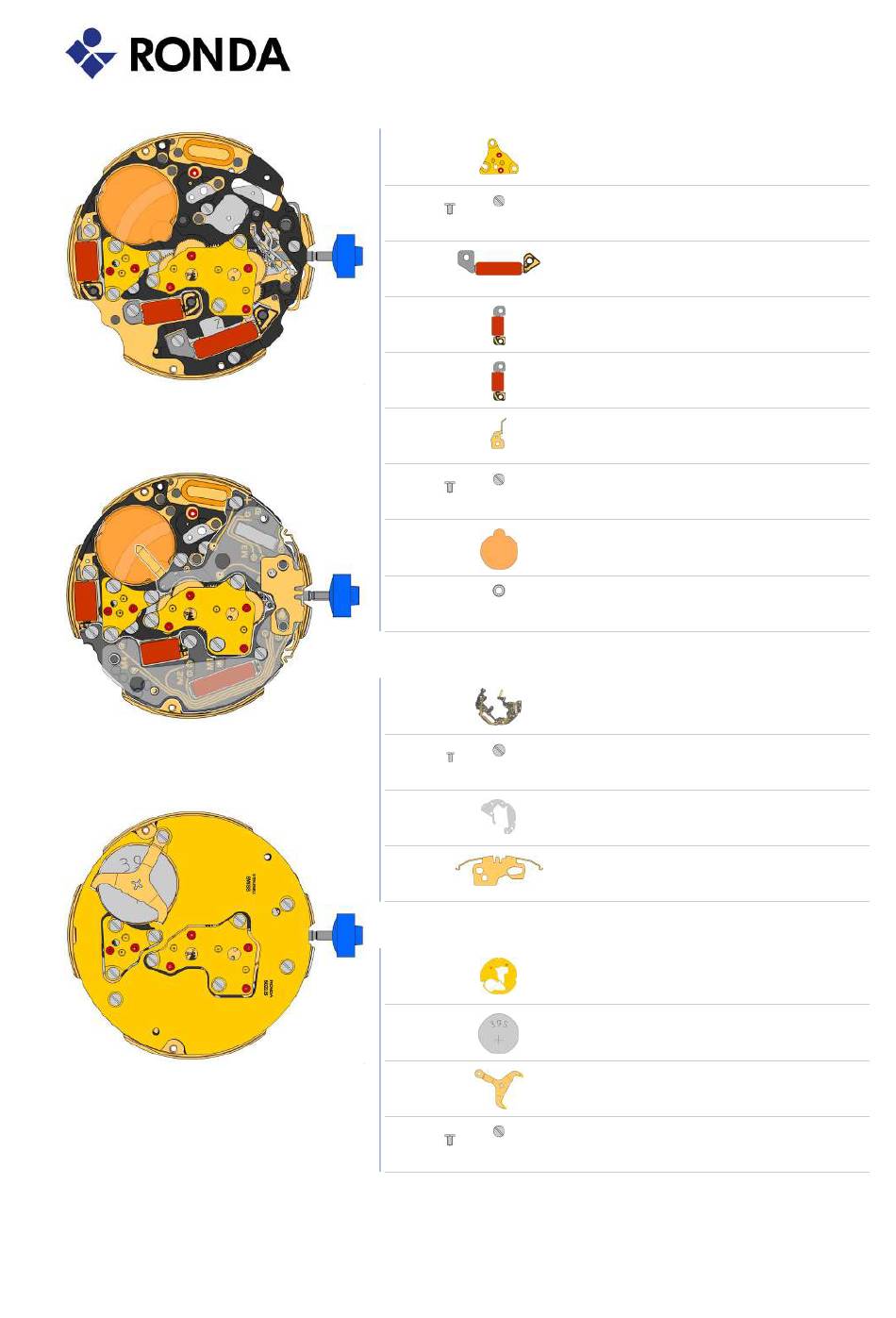

2020.149.G Counter train wheel bridge
Counter train wheel bridge held by 3 screws 4000.250.
33.
4000.250 Screw
34.
3621.053.RK Coil
35. Attention: Please hold the coil only on the grey coil core. Coil held by 1
screw 4000.250.
3621.054.RK Coil (counter 9h, chrono)
36. Attention: Please hold the coil only on the grey coil core. Coil held by 1
screw 4000.250.
3621.054.RK Coil (counter 9h, chrono)
37. Attention: Please hold the coil only on the grey coil core. Coil held by 1
screw 4000.250.
3601.118 Contact strip
38. Contact strip held by 1 screw 4000.250.
4000.250 Screw
39.
3603.034 Battery insulator
40.
3503.054 Tube
41.
3612.144.5020 Electronic module
Electronic module tenue par 5 vis 4000.248. Electronic measurements
42.
may be realised now.
4000.248 Screw
43.
3603.069 Circuit insulator
44.
3601.107.G Pusher contact spring
45.
2130.138.G.M01.5020B Electronic module cover
46. Electronic module cover held by 3 screws 4000.250.
3600.010.HGF Battery 395
47.
3601.109.G Bridle +
48. Bridle held by 1 screw 4000.250.
4000.250 Screw
49.
