INSTALLATION
Installation of the wall hanger
•
Trace a vertical line on the wall to indicate
the centre of the cooker plate.
•
Place the hood body 1 on the wall to get
min 650 mm from the cooker plate. Level it
horizontally. Use the top of the rear side of
the hood as ruler to trace the line.
•
Hold a hood hanger profile 2 to the wall on
the
horizontally,
central line, mark the mounting holes on
the wall.
•
Drill the holes as indicated on the wall,
using drills of diameter 8 mm, drive the
plugs in and then screw the hanger profile
to the wall. The hooks s hould be upward
oriented.

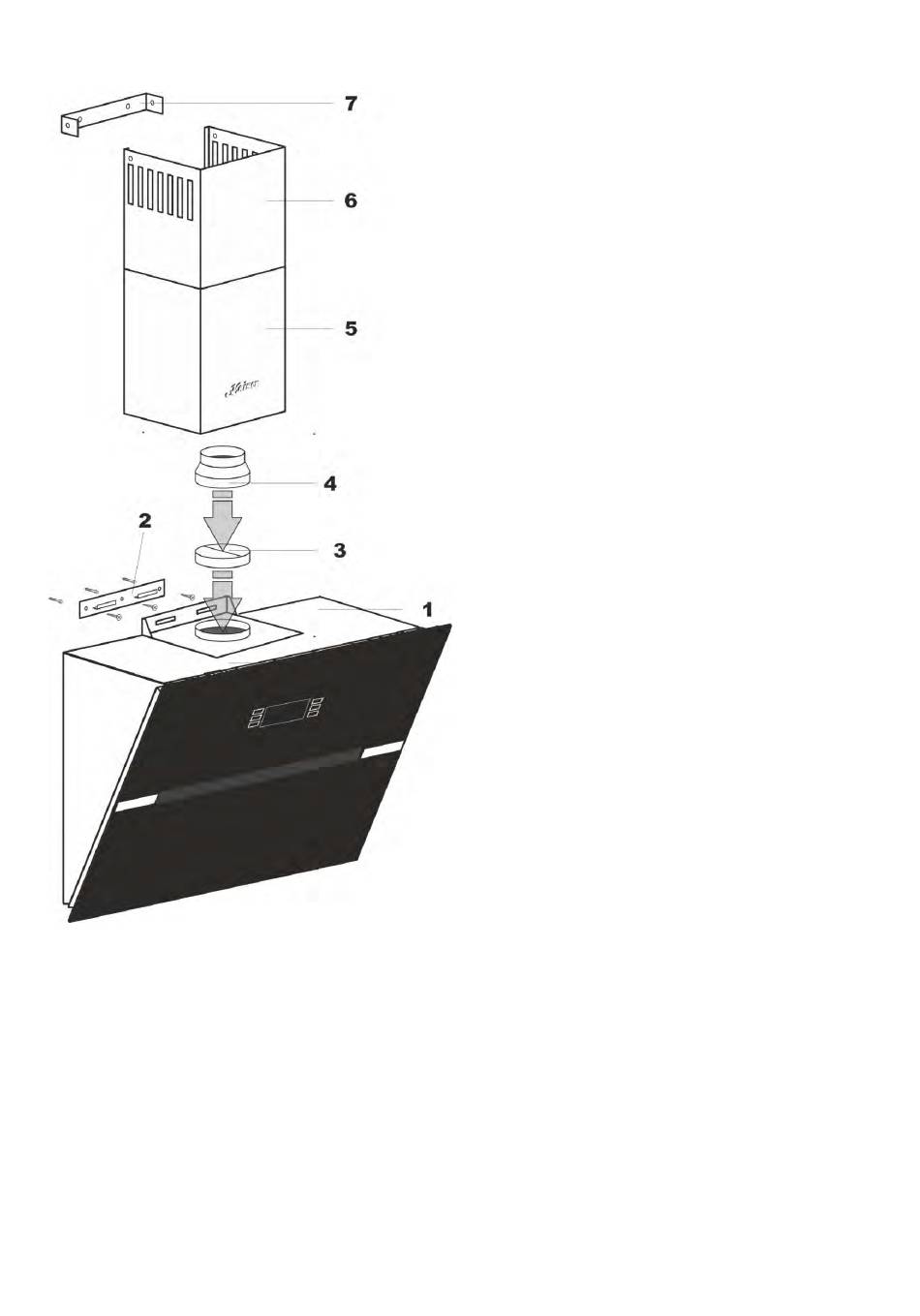

Installation of the hood
•
Hang the hood body 1 on the installed
hanger 2.
•
If the cooker hood will be use in extractor
mode it is necessary to mount a vent
conduit of Ø 150 mm on the fixed V-flap 3.
By connection of a conduit of Ø 120 mm
use an adapter 4.
•
If the cooker hood will be operate in odour
absorber mode it is necessary to install
charcoal filter.
•
Attach the telescopic column 6 on the
masking cover 5 of the mounted hood 1.
•
Pull out the masking cover 6 on the
demanded height. Mark the level of the
mounting holes. Remove the masking
cover.
•
Place the hanger of the top masking cover
7 at the level of mounting holes and install
the hanger.
•
Hang the masking cover column 6 to the
hood's body and to the wall hanger using
appropriate screws
EN
symmetrically
to
the
