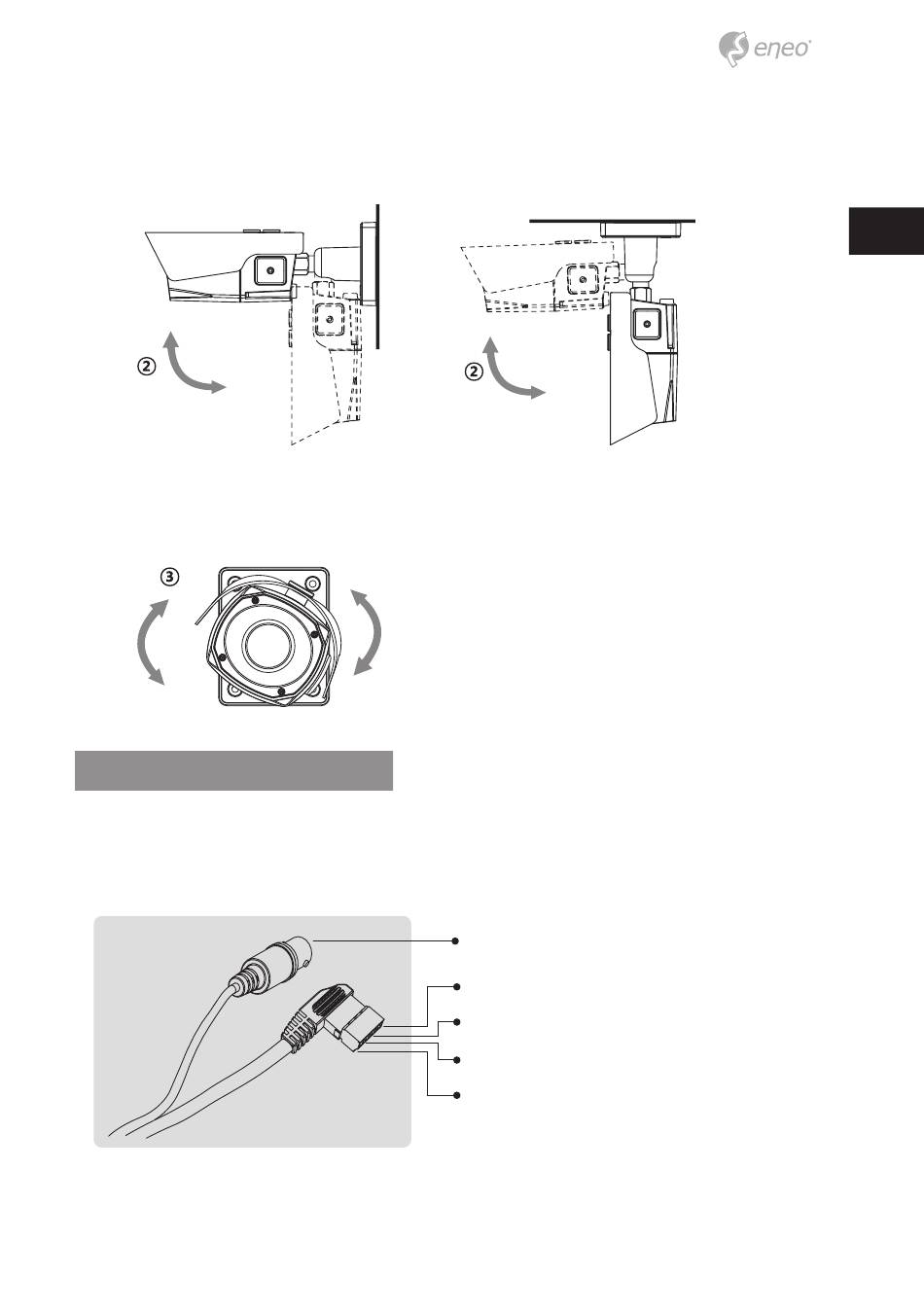

2. Tilt limit: Tilt is limited to 0°(2°) min ~ 90° max. for wall(ceiling) installation respec-
tively with reference to the wall(ceiling) when the inclination of camera module is
0°, that is, the image is aligned horizontally.
90°
on the wall
3. Inclination limit (Horizontal image alignment): Inclination limited to +/-90° max.
±90°

Power supply connections

Make sure the power is removed before the installation. Camera can work with either
24AC or 12VDC, dual voltage power. Primary and secondary grounds are completely
isolated to avoid the possible ground-loop problems.
88°
on the ceiling
VIDEO (BNC)
AC24V/DC12V (Red wire)
AC24V/GND (Black wire)
RTX+/RS485 (White wire)
RTX-/RS485 (Gray wire)
