2-2. Rear Panel View

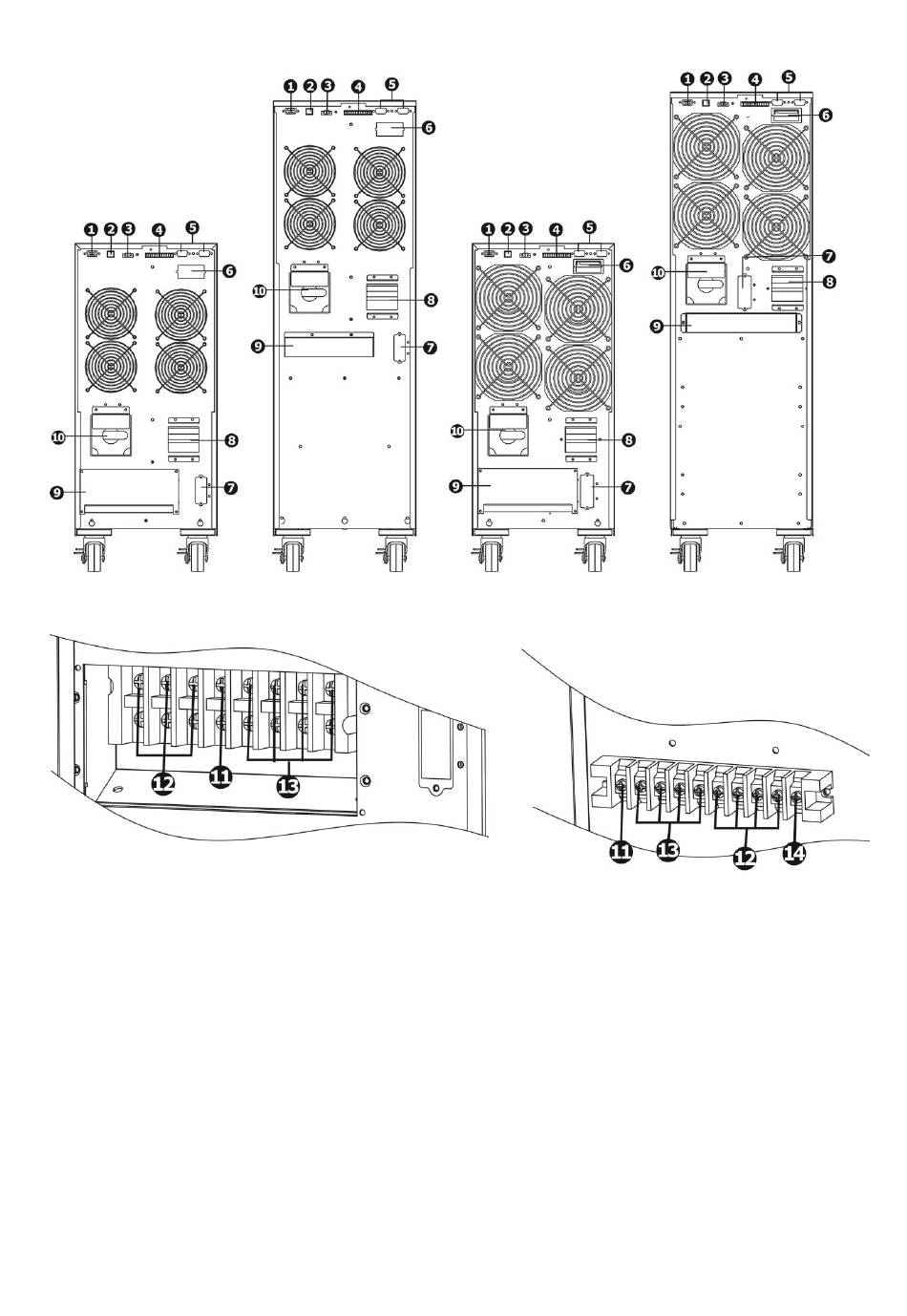

Diagram 1: 10KL Diagram 2: 10K Rear Panel Diagram 3: 15KL/20KL Diagram 4: 15K/20K
Rear Panel Rear Panel Rear Panel
Diagram 5: 10KL/15KL/20KL Input/Output Diagram 6: 10K/15K/20K Input/Output
Terminal Terminal
1. RS-232 communication port
2. USB communication port
3. Emergency power off function connector (EPO connector)
4. Share current port (only available for parallel model)
5. Parallel port (only available for parallel model)
6. Intelligent slot
7. External battery connector (Only available for long-run model)
8. Line Input circuit breaker
9. Input/Output terminal (Refer to Diagram 2)
10. Maintenance bypass switch
11. Output Grounding terminal
