2. Installation and Operation

There are two different types of online UPS: standard and long-run models. Please refer to the following
model table.
Model
PowerWalker VFI
6000CRM LCD

2-1. Unpacking and Inspection

Unpack the package and check the package contents. The shipping package contains:
● One UPS
● One user manual
● One monitoring software CD
● One RS-232 cable (option)
● One USB cable
● One battery cable (option)
NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged
during transportation. Do not turn on the unit and notify the carrier and dealer immediately if there is any
damage or lacking of some parts. Please keep the original package in a safe place for future use.

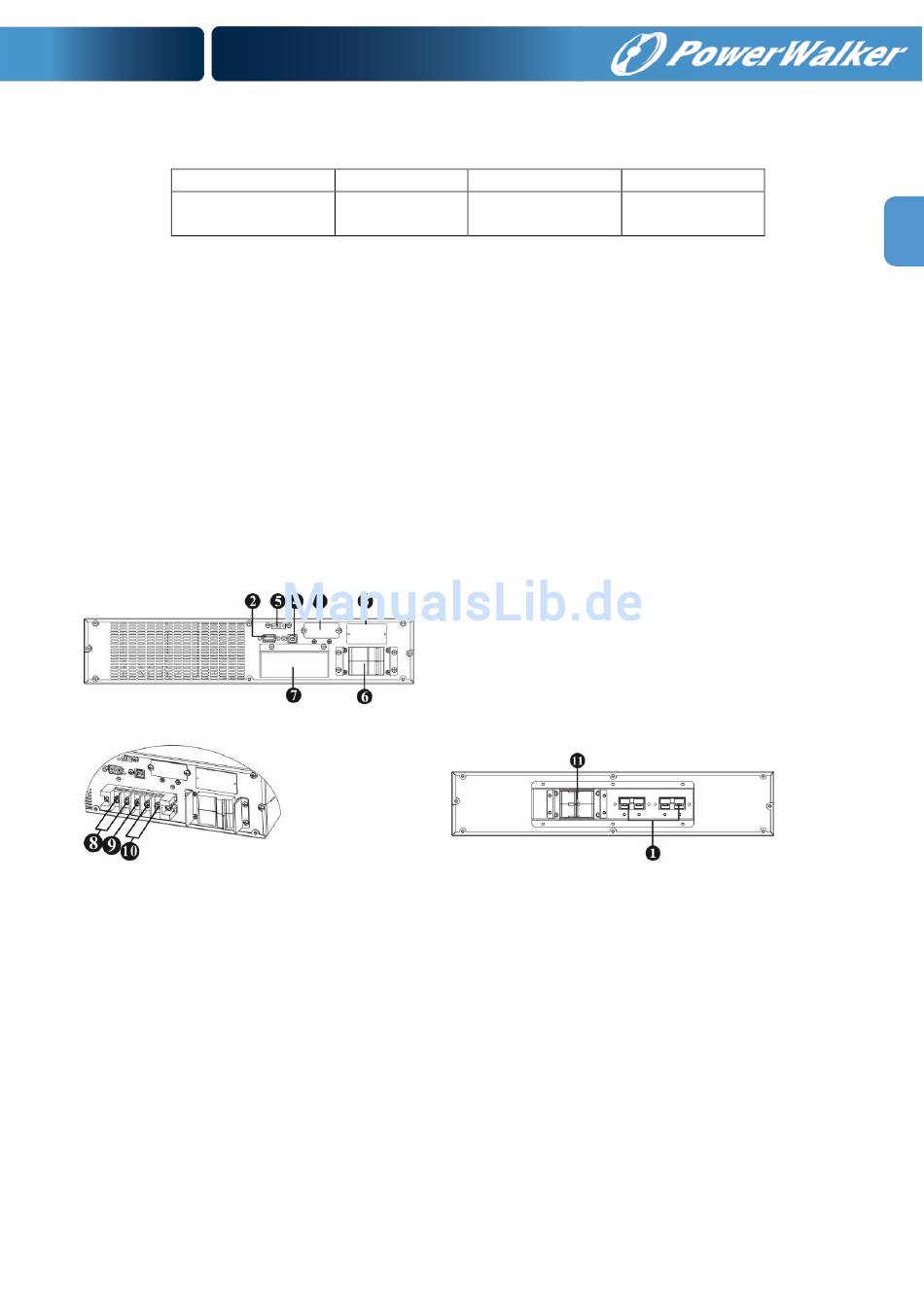

2-2. Rear Panel View

Diagram 1: PowerWalker VFI 6000CRM LCD (L) Rear Panel
Diagram 2: Input/Output Terminal
1. External battery connector
2. RS-232 communication port
3. Intelligent slot
4. USB communication
5. Emergency power off function connector (EPO connector)
6. Input circuit breaker
7. Input/Output terminal (Refer to Diagram 2 for the details)
8. Output terminal
9. Grounding terminal
10. Utility input terminal
11. Battery pack output circuit breaker
Type
PowerWalker VFI
Standard model
6000CRM LCDL
Diagram 3: Battery Pack Rear Panel
5
Model Type
Long-run model
EN
