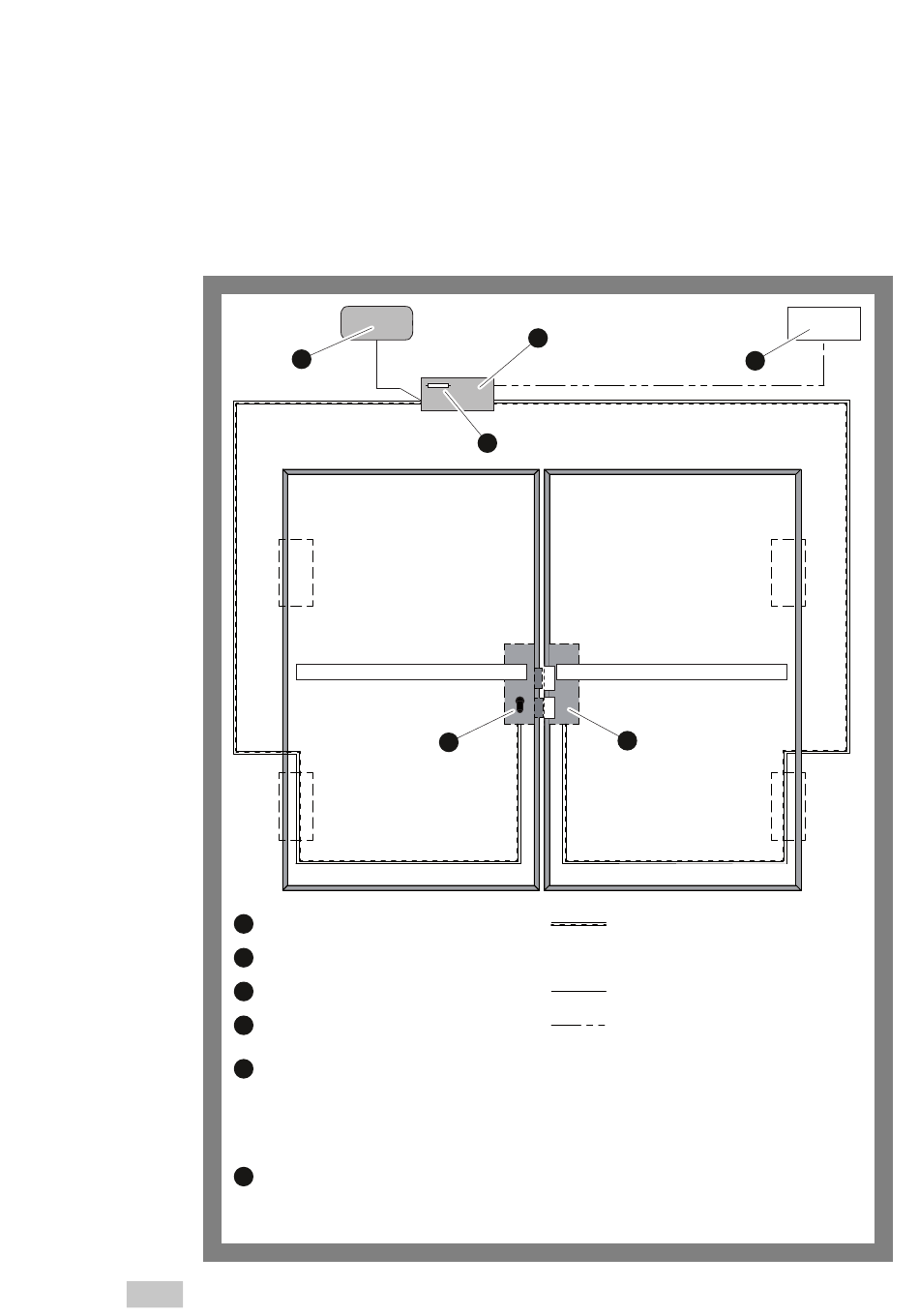

Fig. 7:
Typical wiring for a
double-leaf escape door
with
monitoring and
one IO module
EN
52
Double-leaf panic door with monitoring – one Hi-O group
1
≤ 10 m
Power supply
1
OneSystem ® IO module N5950
2
OneSystem ® Hi-O Technology™ lock
3
OneSystem ® Hi-O Technology™
4
passive leaf lock
5 Access control system in use with
· an electromechanical lock
· a motorised lock or
· an electric strike
6
Terminating resistor can be activated via
DIP switch ("DIP switch", page 46)
2
6
3
5
≤ 10 m
4
Hi-O Technology™ bus
(data line and power supply)
Power supply
Conventional wiring
Connection examples
