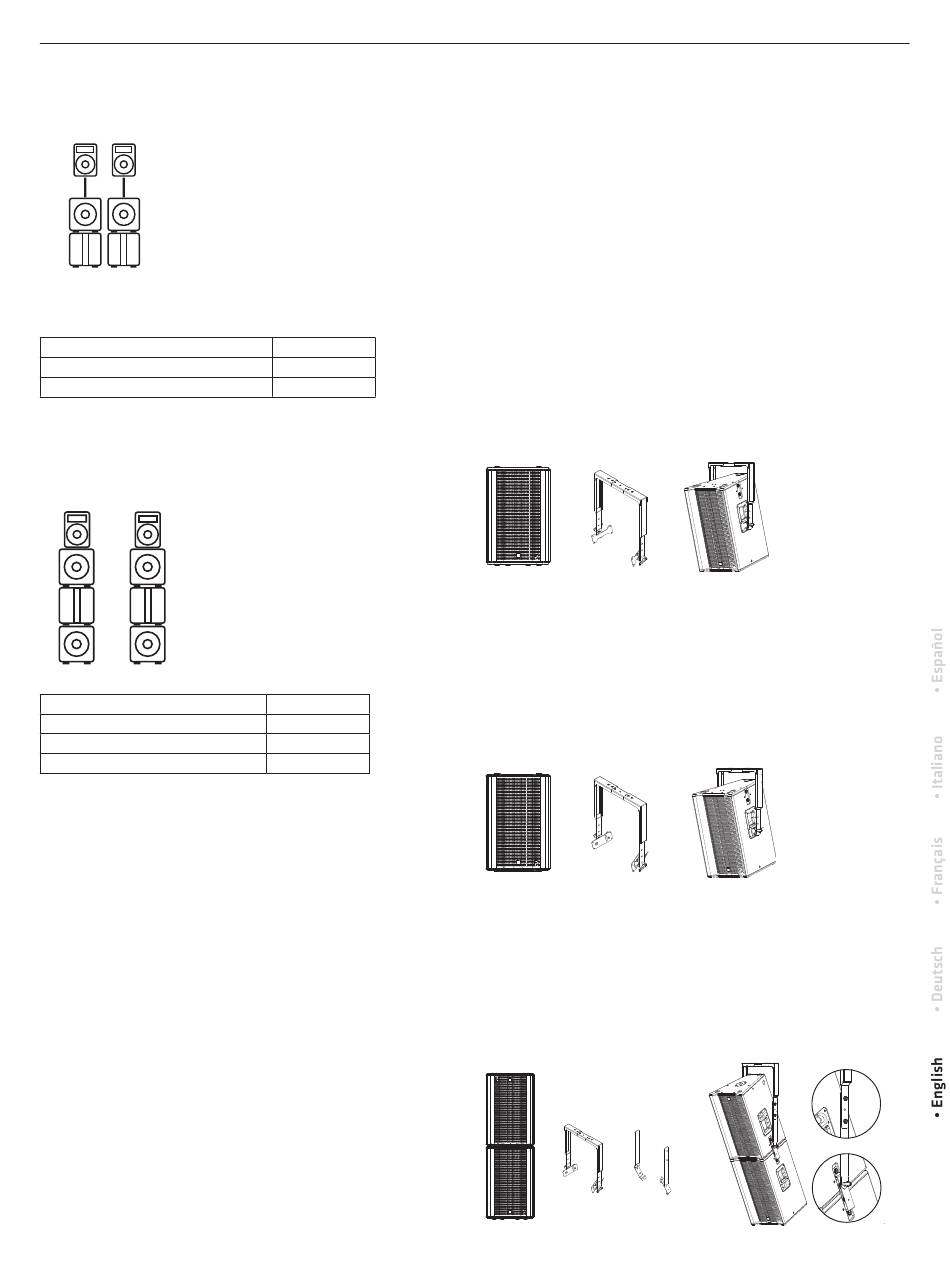

5.2 Configuring a 1:1 Cardioid Setup
Cardioid system with a speaker pole. The bottom
subwoofers are directed to the rear.
Presets:
LINEAR 5
308 LTA
MK II
LINEAR 5 118 Sub HPA – top
MK II
LINEAR 5 118 Sub HPA – bottom
MK II
5.3 Configuring a 2:1 Cardioid Setup
Presets:
LINEAR 5
308 LTA
MK II
LINEAR 5 118 Sub HPA – top
MK II
LINEAR 5 118 Sub HPA – middle
MK II
LINEAR 5 118 Sub HPA – bottom
MK II
5.4 Combination with LINEAR Series speakers (e.g. LINEAR 5 LTS A,
LINEAR Sub 4000 A, etc.)
To combine existing LINEAR 5 LTS A mid/high units or other LINEAR speak-
ers with LINEAR 5 MK II 308 LTA or LINEAR 5 MK II 118 Sub HPA, the use of
the DSP CONTROL software is required. This allows either the speaker itself
to be edited via the Remote Preset or the DSP Out to suit the application
combination. A selection of possible combinations with described settings
and matching presets can be found at www.hkaudio.com and the corre-
sponding product page.
9
Stand Alone
Front
Cardioid 1:1
Cardioid setup as a full stack.
The middle subwoofers are
directed to the rear.
Stand Alone
Front
Cardioid 2:1
Front
6 Optional HK Audio Accessories
HK Audio offers protective covers for the LINEAR 5 MK II 308 LTA and 118
Sub HPA models. These protect the speaker during transport. There are also
clever stacking and rigging accessories available.
The speaker comes with a Rain Cover Set RCS, which protects the electron-
ics of the 308 LTA and 118 Sub HPA from rain.
Visit the LINEAR 5 product pages at www.hkaudio.com to learn more
MK II
about the LINEAR 5 accessories.
MK II
TB-45N
Part number 1007778
The TB-45NQ is a tilt bracket for mounting the LINEAR 5 MK II 308 LTA on
truss rods, ceilings, wall brackets, beams and on tripods. Flexible vertical
and horizontal alignment is possible. This variant is recommended for
installations.
WLL: 70 kg / according to DGUV-V 17: 35 kg
Items delivered: 2 pcs.
+
TB-45NQ
Part number 1007779
The TB-45NQ is a tilt bracket with quick release pins for mounting the
LINEAR 5 MK II 308 LTA on truss rods, ceilings, wall brackets, beams and on
tripods. Flexible vertical and horizontal alignment is possible. This variant is
recommended for mobile use.
WLL: 70 kg / according to DGUV-V 17: 35 kg
Items delivered: 2 pcs.
+
TB-HES Headstack Extension Set
Part number 1007524
The Headstack Extension Set is the extension of the TB-45N or
TB-45NQ to accommodate a LINEAR 5 MK II 308 LTA headstack at the
correct centre of gravity and tilt point. The TB-HES extends the sides of the
TB-45 and connects to the headstack at the free screw points of the sliding
plates of the LINEAR 5 MK II 308 LTA speakers.
Items delivered: Set for two tilt brackets
+ +
=
=
=
