LINEAR 5 308 LTA 1.0
MK II
●
8

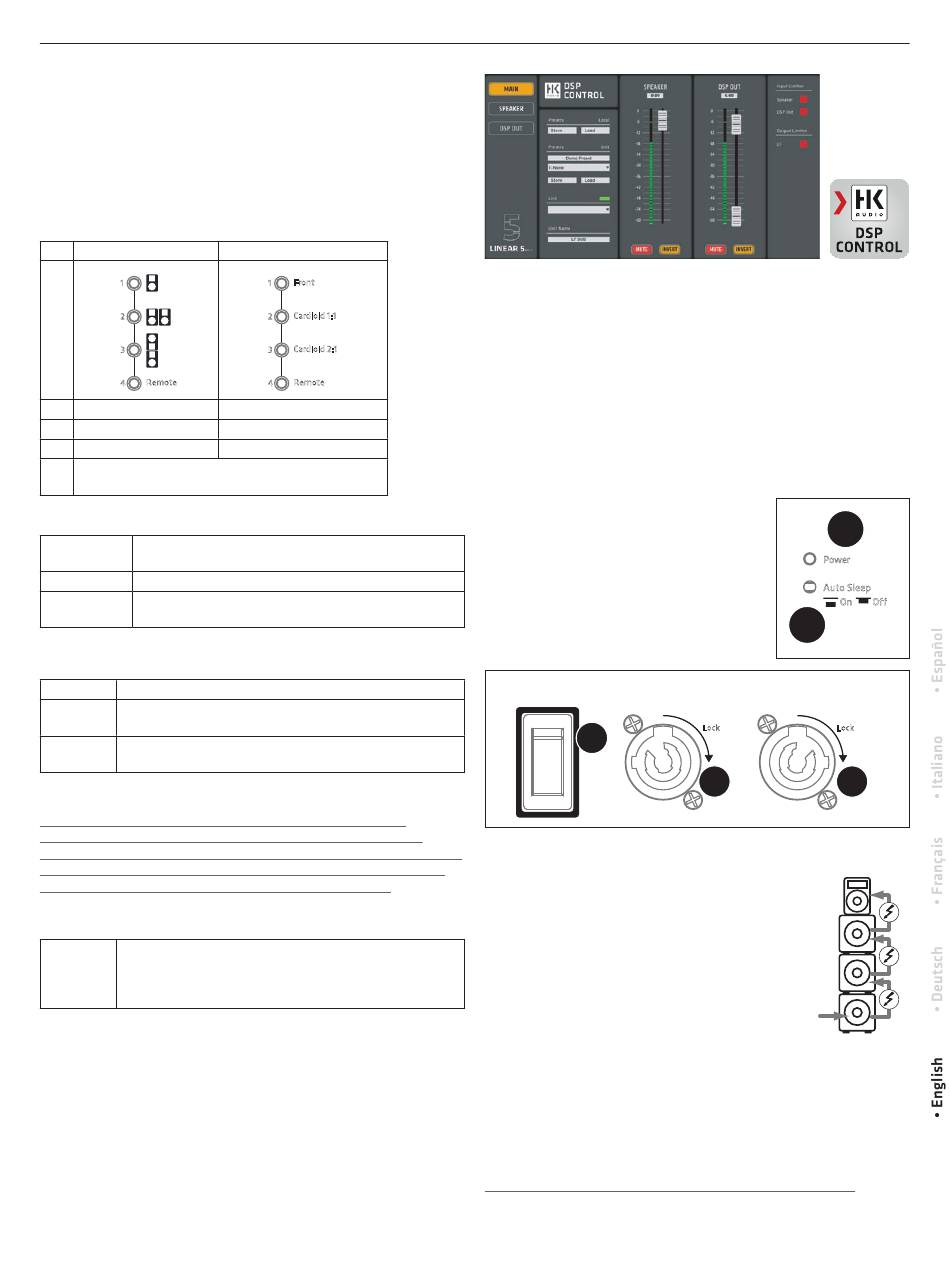

Preset
Use the Preset selection button to call up factory presets or a user preset
you can configure via the remote DSP CONTROL software. Tap the select
button once to scroll through Presets 1 to 4.
A separate manual explains how to program the four remote user pre-
sets. You will find it on the DSP CONTROL software download page at
www.hkaudio.com.
Preset overview:
LINEAR 5
308 LTA
MK II
1 1 1 Flat 1
Monitor
2 2 2 2
Low Cut
3 3 3 3
4 Remote 4 Remote 4 Remote 4
1
Stand Alone
2
Cluster (2)
3
Headstack (3)
4
Remote (to access stored settings via the remote HK
Audio DSP CONTROL software)
Factory presets: LINEAR 5
MK II
Preset 1
When using a single LINEAR 5 MK II 308 LTA
(per side)
Preset 2 When using 2 LINEAR 5
Preset 3
When using 2 LINEAR 5
setup and in a headstack cluster setup
Factory presets: LINEAR 5
MK II
Front
Standard operating mode for a front-firing subwoofer
Cardioid 1:1 For cardioid operation with a front-firing LINEAR 5
118 HPA
Cardioid 2:1 For cardioid operation with two front-firing
LINEAR 5
Sub 118 HPA
MK II
Factory presets 1 to 3 address the speaker only and not the DSP Out.
Note: If you are operating the speaker in a network connected to
the remote DSP CONTROL software, you can configure the DSP Out
independently even when using factory presets 1 to 3. To learn more about
this, consult the separate DSP CONTROL manual. You will find it on the
DSP CONTROL software download page at www.hkaudio.com.
The Remote Preset
Remote
This lets you call up a user preset that you previously stored
in the speaker via DSP CONTROL for the speaker as well as
for the DSP Out. The speaker does not need to be connected
to the remote software to do this.
The remote preset's default setup is identical to factory preset 1 (Stand
Alone and Front).
You can access the following DSP functions via the remote DSP CONTROL
software and save your settings in user presets:
Fully parametric 10-band EQ with variable filter characteristics for each fre-
quency band, high-pass and low-pass filters with variable filter characteris-
tics, Limiter, Delay, Polarity, Level, and Mute.
You can configure these parameters separately and independently for the
speaker and its DSP Out.
5
LINEAR 5
Sub 118 HPA
MK II
Flat 1 Front 1 Front
Monitor Cardioid 1:1 Cardioid 1:1
2 2
Low Cut Cardioid 2:1 Cardioid 2:1
3 3
Remote 4 Remote 4 Remote
Front
Cardioid 1:1
Cardioid 2:1
308 LTA
308 LTA as a cluster of 2
MK II
308 LTA in a headstack
MK II
118 Sub HPA
LINEAR 7
118 Sub A
MADE IN GERMANY
Screenshot of the remote DSP CONTROL software. You can download this software from the DSP CONTROL
software download page at www.hkaudio.com. The speaker and DSP Out parameters are identical, but the double
DSP power lets you configure each set independently.
●
9
Power
This rocker switch turns the power on and off. Set it to Power to turn the
electronic components on and to Off to disconnect them from the mains
power supply. The mains switch has no influence on the PowerCon Link
●
12
socket (see also
●
10
Power LED
Caution: Risk of electric shock! Do not open!
As soon as the electronic components are supplied with voltage, this LED
Refer servicing to qualified service personnel.
lights up green.
Attention: Risque de choc élèctrique –
ne pas ouvrir!
●
11
Mains Input
The mains connection is designed as a PowerCon
socket. A corresponding mains cable is supplied.
Make sure the PowerCon cable clicks into place
and locks by pressing and turning it clockwise. To
HK Audio is a brand of Stamer Musikanlagen GmbH
unlock, pull the locking device of the PowerCon
Magdeburger Str. 8 • 66606 St. Wendel • Germany
connector towards the cable and turn it anticlock-
wise.
Power
Sub
MK II
9
●
12
Link
This output can be used to supply power to up to three
additional LINEAR
speaker cabinets with a PowerCon connection. This socket
is permanently connected to the mains input and is not
affected by the power switch. It carries voltage as soon as
the mains input is connected to a live cable. It is therefore
important that devices to be connected are switched off
before they are connected to this output!
●
13
Auto Sleep
Use this recessed button to switch energy-saving Auto
Sleep mode on and off. Your speaker leaves the factory with the Auto Sleep
button pressed to enable this mode. This function puts the electronic
components into Auto Sleep when four and a half hours pass without the
speaker registering an audio signal, data sent to the network ports, or
operation of a button or knob on the electronics. The only way to wake it up
is by switching the Power button off and on again or patching an analogue
audio signal into the Input.
Heads Up: You cannot wake up the speaker via the network ports.
The only way to disable the Auto Sleep function is to press the recessed
switch (not pressed).
).
Mains Input
100-240 V~ 50-60 Hz 100-240 V~ 50-60 Hz
2.5 A @ 1/8 output power
Lock
11
4
L
1
Input
4
R
1
5
DSP Out
Serial No.
10
Power
Auto Sleep
On Off
13
Link
max. 10 A
Lock
12
2
Thru Gain
0 dB
2
–6 dB
3
+6
