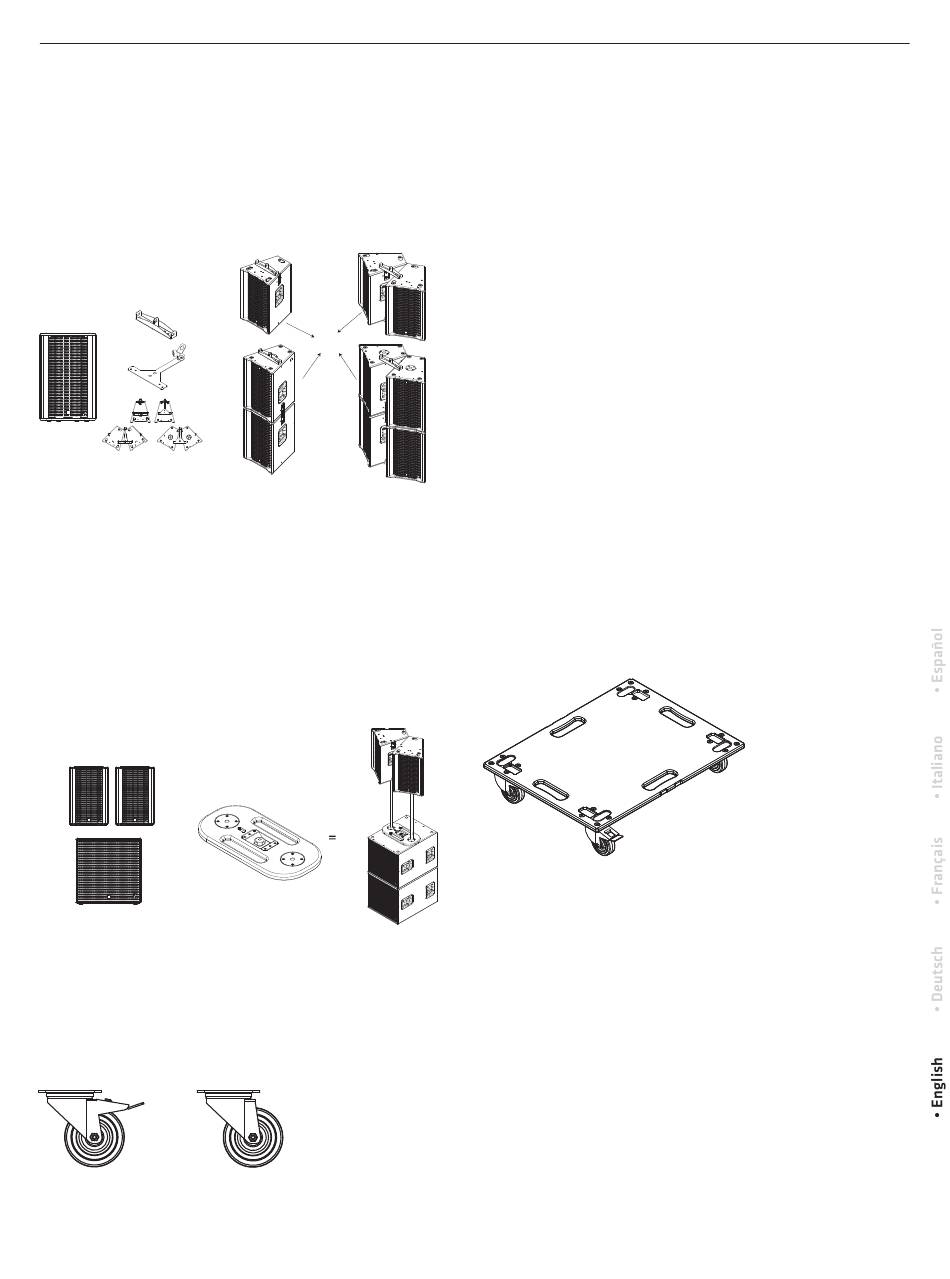

PP-CP Pick Point – Cluster Plate
Part number 1007525
The Pick Point (PP) and the Cluster Plate (CP) provide either two or three
attachment points for rigging and angling the LINEAR 5 MK II 308 LTA. The
following configurations can be built and rigged with just one set of the
PP-CP. 2 x single use, 2 x headstack, 2 x cluster or 2 x headstack cluster. The
PP-CP set is therefore a highly universal accessory and offers an unbeatable
price/performance ratio.
Items delivered: 2 PP and 2 CP
=
+
DFP double flange plate
Part number 1007530
The double flange plate is recommended when a cluster is to be stacked on
a LINEAR 5 MK II 118 Sub HPA with mounting poles. This allows the cluster
to be easily adjusted to the desired height with two mounting poles and
aligned accordingly.
The double flange plate is attached to the flange of the LINEAR 5 MK II
118 Sub HPA with an M20 screw. It has two M20 mounts for two mounting
poles or two Tilt-Units, for example. The correct angle of the horizontal
cluster (approximately 30° opening angle or approximately 24 cm distance
of the side wall at the front) is achieved by screwing the back of the 308
LTA onto the mounting poles or Tilt-Units. In addition, the DFP can be rotat-
ed on the subwoofer to align the cluster accordingly. Items delivered: 2 pcs
+
Rollers for roller mounting
Part number braked roller 1008068
Part number unbraked rollers 1008069
Suitable rollers for mounting on HK Audio subwoofers. Available in braked
and unbraked versions.
10
Protective Cover LINEAR 5
Part number 1008180
Padded protective transport cover to be used in conjunction with roller
mounting. Simply tilt the subwoofer backwards and slip the protective
cover over the top of it. This leaves the side with the electronics and any
mounted rollers free.
Protective Cover LINEAR 5
Part number 1007521
Padded protective transport cover for the 308 LTA or LTS / A. It protects
the cabinet during transport and can be removed when the speaker is in
operation.
or
CS-WB1 Cover
Part number 1007702
The practical protective cover protects a stack of two 118 Sub HPAs in com-
bination with the CS-WB 1 wheelboard during transport. Cannot be used
with only one subwoofer. Cover must be removed during operation.
CS-WB1
Part number 1007700
The CS-WB 1 wheelboard has a corresponding mount for the LINEAR 5 MK II
118 Sub HPA and the CS 118. Either one or two subwoofers can be transport-
ed and fastened on it. It comes with a tensioning strap for secure fixing. If
two subwoofers are stacked, the CS-WB 1 cover can be used for protection
during transport. If 118 Sub HPAs are used, the protective cover must be
removed while playing. If CS 118s are used, the protective cover does not
need to be removed while playing.
Mounting pole with crank
Part number 1007526
Stable K&M mounting pole with convenient height adjustment by hand
crank and ring lock to lock the speaker.
118 Sub HPA
MK II
308 LTA
MK II
