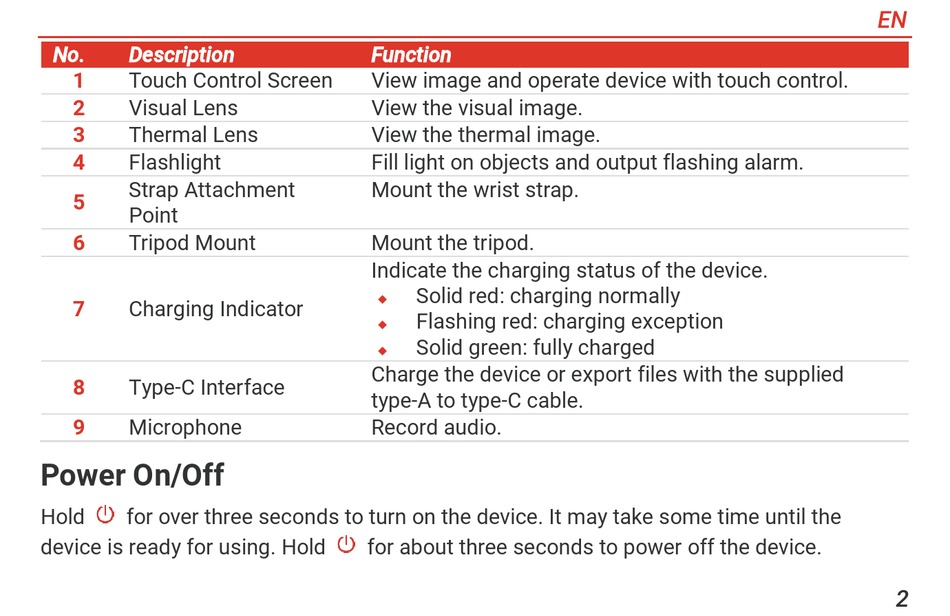

No. Description
1 Touch Control Screen
2 Visual Lens
3 Thermal Lens
4 Flashlight
Strap Attachment
5
Point
6 Tripod Mount
7 Charging Indicator
8 Type-C Interface
9 Microphone

Power On/Off

Hold for over three seconds to turn on the device. It may take some time until the
device is ready for using. Hold
Function
View image and operate device with touch control.
View the visual image.
View the thermal image.
Fill light on objects and output flashing alarm.
Mount the wrist strap.
Mount the tripod.
Indicate the charging status of the device.
Solid red: charging normally

Flashing red: charging exception

Solid green: fully charged

Charge the device or export files with the supplied
type-A to type-C cable.
Record audio.
for about three seconds to power off the device.
EN
2
