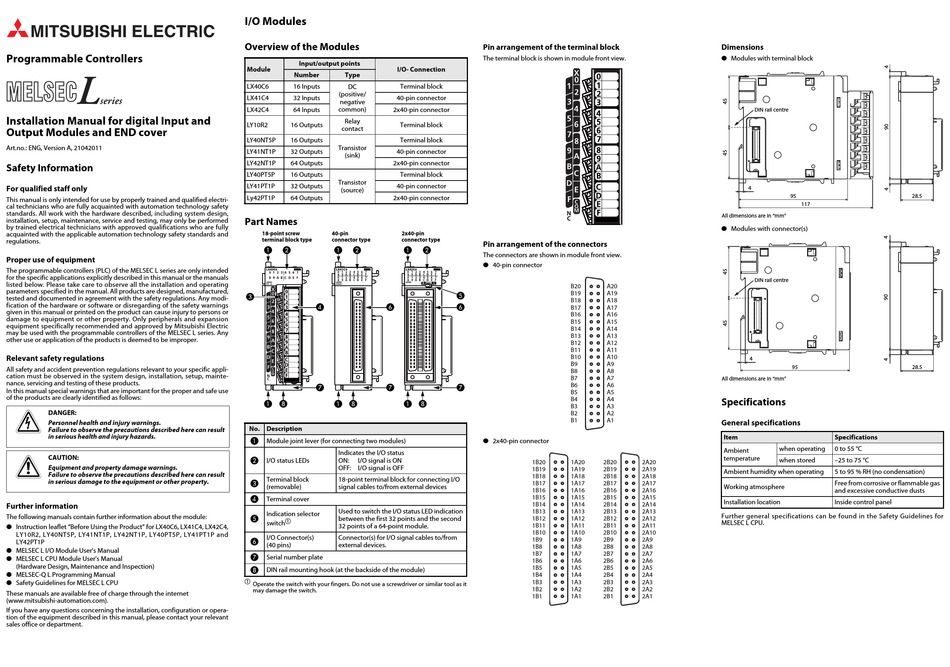

Programmable Controllers
Installation Manual for digital Input and
Output Modules and END cover
Art.no.: ENG, Version A, 21042011
Safety Information
For qualified staff only
This manual is only intended for use by properly trained and qualified electri-
cal technicians who are fully acquainted with automation technology safety
standards. All work with the hardware described, including system design,
installation, setup, maintenance, service and testing, may only be performed
by trained electrical technicians with approved qualifications who are fully
acquainted with the applicable automation technology safety standards and
regulations.
Proper use of equipment
The programmable controllers (PLC) of the MELSEC L series are only intended
for the specific applications explicitly described in this manual or the manuals
listed below. Please take care to observe all the installation and operating
parameters specified in the manual. All products are designed, manufactured,
tested and documented in agreement with the safety regulations. Any modi-
fication of the hardware or software or disregarding of the safety warnings
given in this manual or printed on the product can cause injury to persons or
damage to equipment or other property. Only peripherals and expansion
equipment specifically recommended and approved by Mitsubishi Electric
may be used with the programmable controllers of the MELSEC L series. Any
other use or application of the products is deemed to be improper.
Relevant safety regulations
All safety and accident prevention regulations relevant to your specific appli-
cation must be observed in the system design, installation, setup, mainte-
nance, servicing and testing of these products.
In this manual special warnings that are important for the proper and safe use
of the products are clearly identified as follows:
DANGER:
P
Personnel health and injury warnings.
Failure to observe the precautions described here can result
in serious health and injury hazards.
E CAUTION:
Equipment and property damage warnings.
Failure to observe the precautions described here can result
in serious damage to the equipment or other property.
Further information
The following manuals contain further information about the module:
● Instruction leaflet "Before Using the Product" for LX40C6, LX41C4, LX42C4,
LY10R2, LY40NT5P, LY41NT1P, LY42NT1P, LY40PT5P, LY41PT1P and
LY42PT1P
● MELSEC L I/O Module User's Manual
● MELSEC L CPU Module User's Manual
(Hardware Design, Maintenance and Inspection)
● MELSEC-Q L Programming Manual
● Safety Guidelines for MELSEC L CPU
These manuals are available free of charge through the internet
(www.mitsubishi-automation.com).
If you have any questions concerning the installation, configuration or opera-
tion of the equipment described in this manual, please contact your relevant
sales office or department.
I/O Modules
Overview of the Modules
Input/output points
Module I/O- Connection
Number Type
LX40C6 16 Inputs Terminal block
DC
(positive/
LX41C4 32 Inputs 40-pin connector
negative
LX42C4 64 Inputs common) 2x40-pin connector
Relay
LY10R2 16 Outputs Terminal block
contact

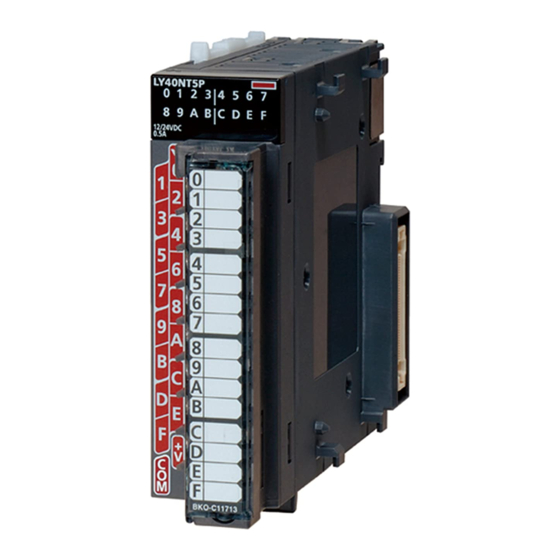

LY40NT5P 16 Outputs Terminal block
Transistor
LY41NT1P 32 Outputs 40-pin connector
(sink)
LY42NT1P 64 Outputs 2x40-pin connector
LY40PT5P 16 Outputs Terminal block
Transistor
LY41PT1P 32 Outputs 40-pin connector
(source)
Ly42PT1P 64 Outputs 2x40-pin connector
Part Names
18-point screw 40-pin 2x40-pin
terminal block type connector type connector type
³ · ³ · ³ ·
»
¿ ²
¶ ¶
³ º ³ º ³ º
No. Description
³
Module joint lever (for connecting two modules)
Indicates the I/O status
·
I/O status LEDs ON: I/O signal is ON
OFF: I/O signal is OFF
Terminal block 18-point terminal block for connecting I/O
»
(removable) signal cables to/from external devices
¿
Terminal cover
Used to switch the I/O status LED indication
Indication selector
´
between the first 32 points and the second
switch
32 points of a 64-point module.
I/O Connector(s) Connector(s) for I/O signal cables to/from
²
(40 pins) external devices.
¶
Serial number plate
º
DIN rail mounting hook (at the backside of the module)
Operate the switch with your fingers. Do not use a screwdriver or similar tool as it
may damage the switch.
Pin arrangement of the terminal block
The terminal block is shown in module front view.
Pin arrangement of the connectors
The connectors are shown in module front view.
● 40-pin connector
B20 A20
´ B19 A19
B18 A18
²
B17 A17
B16 A16
B15 A15
B14 A14
B13 A13
B12 A12
B11 A11
B10 A10
B9 A9
B8 A8
B7 A7
¶
B6 A6
B5 A5
B4 A4
B3 A3
B2 A2
B1 A1
● 2x40-pin connector
1B20 1A20 2B20
1B19 1A19 2B19
1B18 1A18 2B18
1B17 1A17 2B17
1B16 1A16 2B16
1B15 1A15 2B15
1B14 1A14 2B14
1B13 1A13 2B13
1B12 1A12 2B12
1B11 1A11 2B11
1B10 1A10 2B10
1B9 1A9 2B9
1B8 1A8 2B8
1B7 1A7 2B7
1B6 1A6 2B6
1B5 1A5 2B5
1B4 1A4 2B4
1B3 1A3 2B3
1B2 1A2 2B2
1B1 1A1 2B1
Dimensions
● Modules with terminal block
DIN rail centre
4
95
117
All dimensions are in "mm"
● Modules with connector(s)
DIN rail centre
4
95
All dimensions are in "mm"
Specifications
General specifications
Item
when operating
Ambient
temperature
when stored
2A20
2A19
Ambient humidity when operating
2A18
2A17
Working atmosphere
2A16
2A15
Installation location
2A14
2A13
Further general specifications can be found in the Safety Guidelines for
2A12
MELSEC L CPU.
2A11
2A10
2A9
2A8
2A7
2A6
2A5
2A4
2A3
2A2
2A1
28.5
28.5
Specifications
0 to 55 °C
–25 to 75 °C
5 to 95 % RH (no condensation)
Free from corrosive or flammable gas
and excessive conductive dusts
Inside control panel
