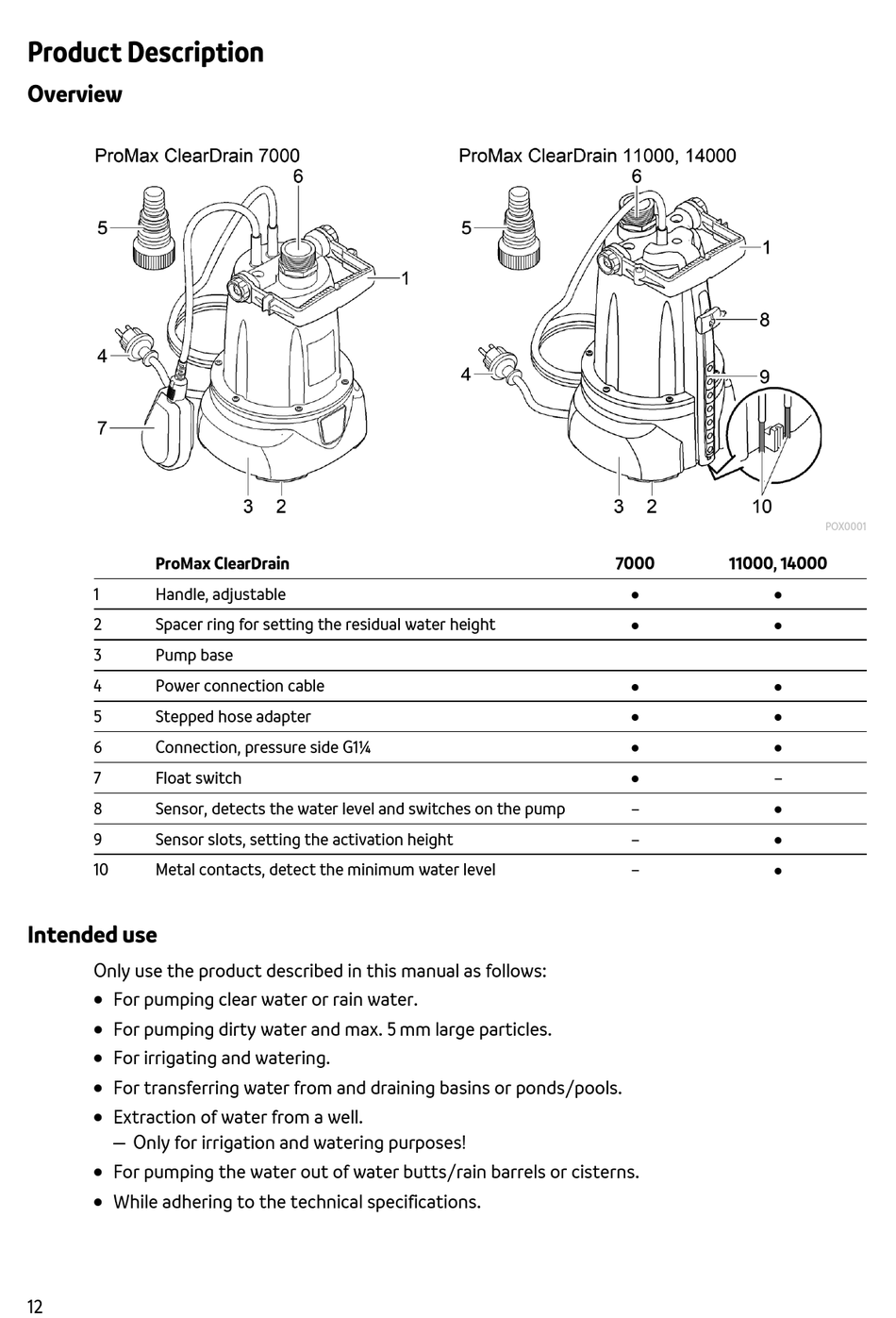

Product Description
Overview
ProMax ClearDrain
1 Handle, adjustable
2 Spacer ring for setting the residual water height
3 Pump base
4 Power connection cable
5 Stepped hose adapter
6 Connection, pressure side G1¼
7 Float switch
8 Sensor, detects the water level and switches on the pump
9 Sensor slots, setting the activation height
10 Metal contacts, detect the minimum water level
Intended use
Only use the product described in this manual as follows:
• For pumping clear water or rain water.
• For pumping dirty water and max. 5 mm large particles.
• For irrigating and watering.
• For transferring water from and draining basins or ponds/pools.
• Extraction of water from a well.
– Only for irrigation and watering purposes!
• For pumping the water out of water butts/rain barrels or cisterns.
• While adhering to the technical specifications.
12
7000 11000, 14000
• •
• •
• •
• •
• •
•
–
•
–
•
–
•
–
POX0001
