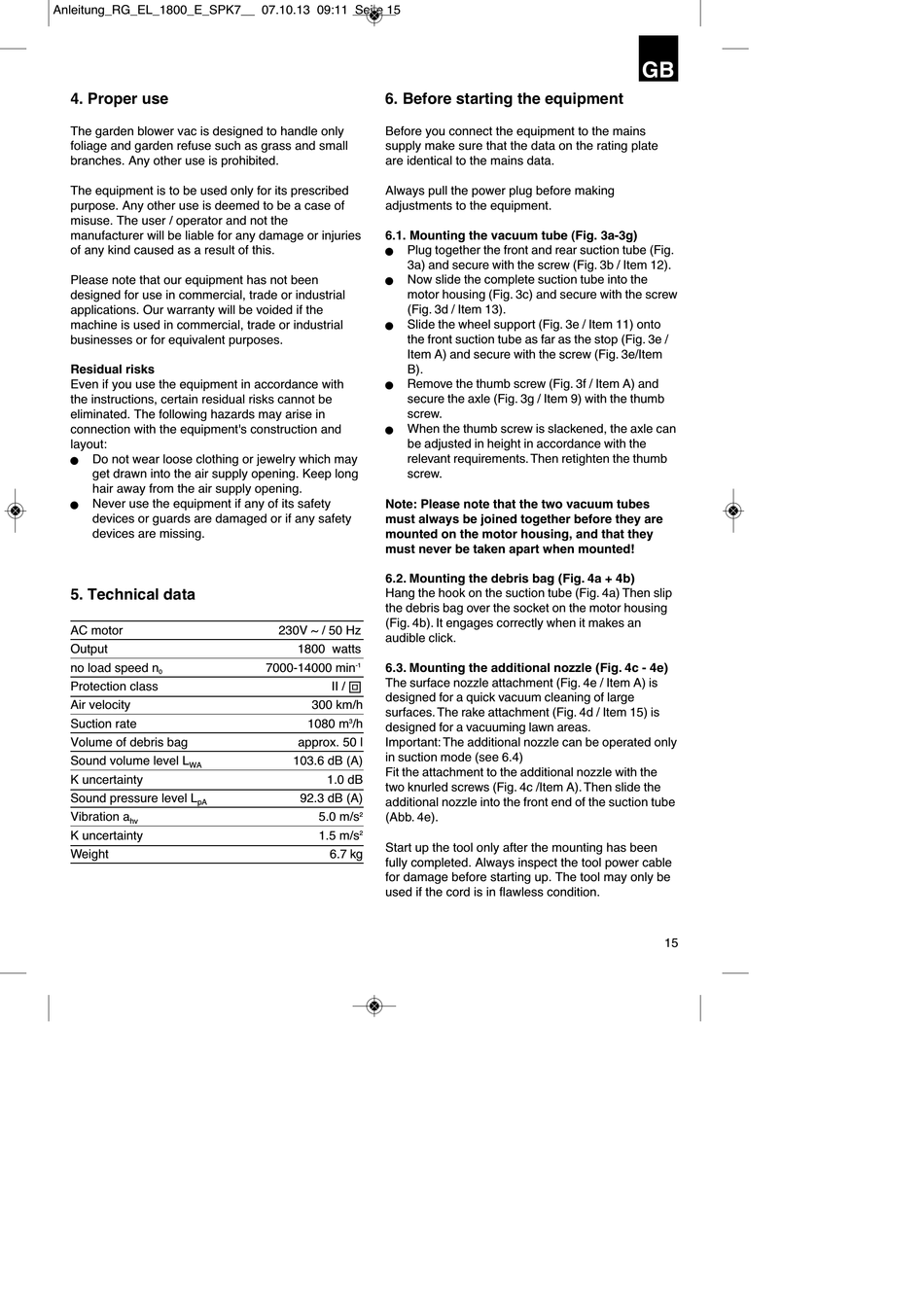

Anleitung_RG_EL_1800_E_SPK7__ 07.10.13 09:11 Seite 15
4. Proper use
The garden blower vac is designed to handle only
foliage and garden refuse such as grass and small
branches. Any other use is prohibited.
The equipment is to be used only for its prescribed
purpose. Any other use is deemed to be a case of
misuse. The user / operator and not the
manufacturer will be liable for any damage or injuries
of any kind caused as a result of this.
Please note that our equipment has not been
designed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
Residual risks
Even if you use the equipment in accordance with
the instructions, certain residual risks cannot be
eliminated. The following hazards may arise in
connection with the equipment's construction and
layout:
Do not wear loose clothing or jewelry which may
n
get drawn into the air supply opening. Keep long
hair away from the air supply opening.
Never use the equipment if any of its safety
n
devices or guards are damaged or if any safety
devices are missing.
5. Technical data
AC motor
Output
no load speed n
0
Protection class
Air velocity
Suction rate
Volume of debris bag
Sound volume level L
WA
K uncertainty
Sound pressure level L
pA
Vibration a
hv
K uncertainty
Weight
6. Before starting the equipment
Before you connect the equipment to the mains
supply make sure that the data on the rating plate
are identical to the mains data.
Always pull the power plug before making
adjustments to the equipment.
6.1. Mounting the vacuum tube (Fig. 3a-3g)
Plug together the front and rear suction tube (Fig.
n
3a) and secure with the screw (Fig. 3b / Item 12).
Now slide the complete suction tube into the
n
motor housing (Fig. 3c) and secure with the screw
(Fig. 3d / Item 13).
Slide the wheel support (Fig. 3e / Item 11) onto
n
the front suction tube as far as the stop (Fig. 3e /
Item A) and secure with the screw (Fig. 3e/Item
B).
Remove the thumb screw (Fig. 3f / Item A) and
n
secure the axle (Fig. 3g / Item 9) with the thumb
screw.
When the thumb screw is slackened, the axle can
n
be adjusted in height in accordance with the
relevant requirements. Then retighten the thumb
screw.
Note: Please note that the two vacuum tubes
must always be joined together before they are
mounted on the motor housing, and that they
must never be taken apart when mounted!
6.2. Mounting the debris bag (Fig. 4a + 4b)
Hang the hook on the suction tube (Fig. 4a) Then slip
the debris bag over the socket on the motor housing
(Fig. 4b). It engages correctly when it makes an
230V ~ / 50 Hz
audible click.
1800 watts
7000-14000 min
-1
6.3. Mounting the additional nozzle (Fig. 4c - 4e)
The surface nozzle attachment (Fig. 4e / Item A) is
II / ®
designed for a quick vacuum cleaning of large
300 km/h
surfaces. The rake attachment (Fig. 4d / Item 15) is
1080 m
3
/h
designed for a vacuuming lawn areas.
approx. 50 l
Important: The additional nozzle can be operated only
in suction mode (see 6.4)
103.6 dB (A)
Fit the attachment to the additional nozzle with the
1.0 dB
two knurled screws (Fig. 4c /Item A). Then slide the
92.3 dB (A)
additional nozzle into the front end of the suction tube
5.0 m/s
2
(Abb. 4e).
1.5 m/s
2
Start up the tool only after the mounting has been
6.7 kg
fully completed. Always inspect the tool power cable
for damage before starting up. The tool may only be
used if the cord is in flawless condition.
GB
15
