Electrical connection
Safety instructions
The electrical connection of
the roller shutter drive must
only be performed by a
qualifi ed electrician.
There is danger to life through
electric current!
- Connect the roller shutter
drive always with the power
off .
- Check that the power is really
off at supply line/connection
point.

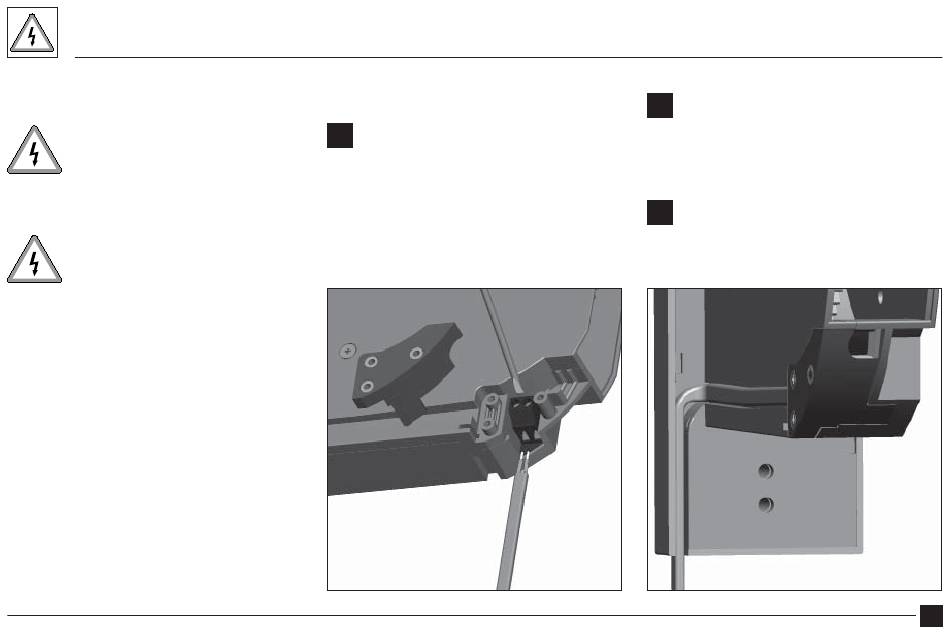

Electrical connection
1.
Connect the connection cable as
shown.
Use the following cable type:
H03VVH2-F 2 x 0.75 mm2
2.
Then lay the cable in the cable
channel of the housing so that it is
not damaged during installation.
3.
Finally, attach the strain relief with
the enclosed screws.
