existence of the safety appliances
before you start the machine.
Do not attempt operation in this case,
protect the machine by unplugging the
mains cord.
Remove all loose clothing and confine
long hair.
Before operating the machine, remove
tie, rings, watches, other jewellery,
and roll up sleeves above the elbows.
Wear safety shoes; never wear leisure
shoes or sandals.
Always wear the approved working
outfit
Do not wear gloves while operating
this machine.
For the safe handling of saw blades
wear work gloves.
Insure that the workpiece does not roll
when cutting round pieces.
Use suitable table extensions and
supporting aids for difficult to handle
workpieces.
Always adjust the blade guide close to
the workpiece.
Remove cut and jammed workpieces
only when motor is turned off and the
machine is at a complete standstill.
Install the machine so that there is
sufficient space for safe operation and
workpiece handling.
Keep work area well lighted.
The machine is designed to operate in
closed rooms and must be placed
stable on firm and levelled ground.
Make sure that the power cord does
not impede work and cause people to
trip.
Keep the floor around the machine
clean and free of scrap material, oil
and grease.
Stay alert!
Give your work undivided attention.
Use common sense.
Do not operate the machine when you
are tired.
Do not operate the machine under the
influence of drugs, alcohol or any
medication. Be aware that medication
can change your behaviour.
Keep children and visitors a safe
distance from the work area.
Never reach into the machine while it
is operating or running down.
Never leave a running machine
unattended. Before you leave the
workplace switch off the machine.
Do not operate the electric tool near
inflammable liquids or gases.
Observe the fire fighting and fire alert
options, for example the fire
extinguisher operation and place.
Do not use the machine in a dump
environment and do not expose it to
rain.
Specifications regarding the maximum
or minimum size of the workpiece
must be observed.
Do not remove chips and workpiece
parts until the machine is at a
complete standstill.
Never operate with the guards not in
place – serious risk of injury!
Connection and repair work on the
electrical installation may be carried
out by a qualified electrician only.
Have a damaged or worn cord
replaced immediately.
Make all machine adjustments or
maintenance with the machine
unplugged from the power source.
Remove defective saw blades
immediately.
3.3 Remaining hazards
When using the machine according to
regulations some remaining hazards
may still exist
The moving saw blade in the work
area can cause injury.
Broken saw blades can cause injuries.
Thrown cutting chips and noise can be
health hazards.
Be sure to wear personal protection
gear such as safety goggles and ear
protection.
The use of incorrect mains supply or a
damaged power cord can lead to
injuries caused by electricity.
4. Machine specifications
4.1 Technical data
Wheel diameter
Cutting width 90°
Cutting width 45°
Cutting height
Sawblade length
Blade width
Blade thickness
Cutting speed variable 30 - 80 m/min
Mitre adjustment
Weight
4
Mains
Motor power
Reference current
Extension cord (H07RN-F): 3x1,5mm²
Installation fuse protection
4.2 Noise emission
Acoustic pressure level (EN 11202):
Idling
Operating
The specified values are emission
levels and are not necessarily to be
seen as safe operating levels.
As workplace conditions vary, this
information is intended to allow the
user to make a better estimation of
the hazards and risks involved only.
4.3 Contents of delivery
12,5mm bimetal saw blade
Adjustable material stop
Assembly kit
Operating manual
Spare parts list
5. Transport and start up
5.1 Transport and installation
The machine is designed to operate in
closed rooms and must be placed
stable on a firm and levelled table
surface.
For packing reasons the machine is
not completely assembled.
For transport it is best to place the
machine into the box where it was
when purchased.
The machine can be lifted by a single
person by gripping it from the saw
body.

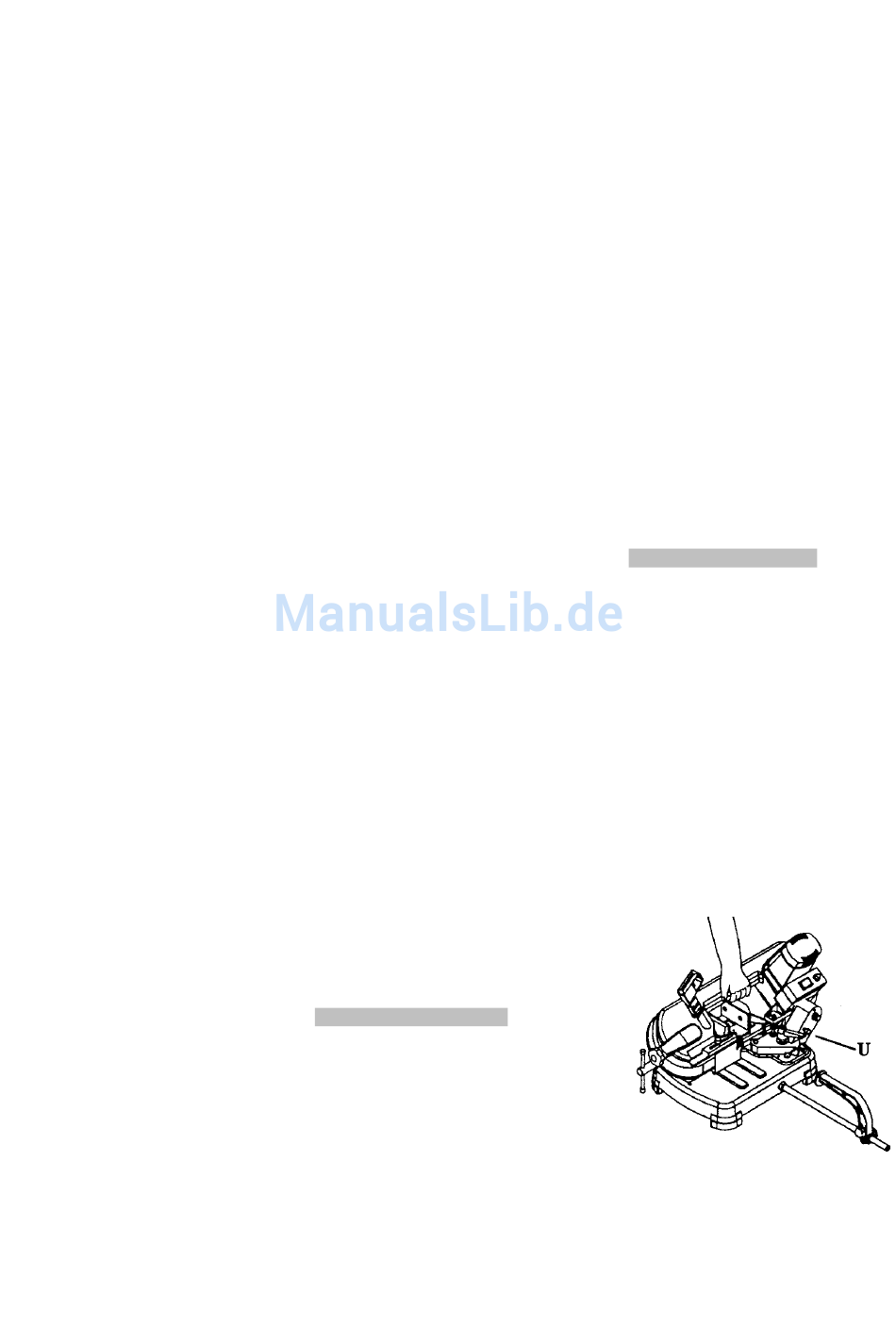

Therefore it is necessary to lower the
saw body and lock it in place with the
index pin (U, Fig 1)
160 mm
max 85 mm
max 65 mm
max 85 mm
1325 mm
12 - 13 mm
0,65 mm
5.2 Assembly
0° - 45°
If you notice any transport damage
17 kg
while unpacking, notify your supplier
230V ~1/N/PE 50Hz
850W S6-40%
3.8 A
10 A
82 dB (A)
84,3 dB (A)
Fig 1
