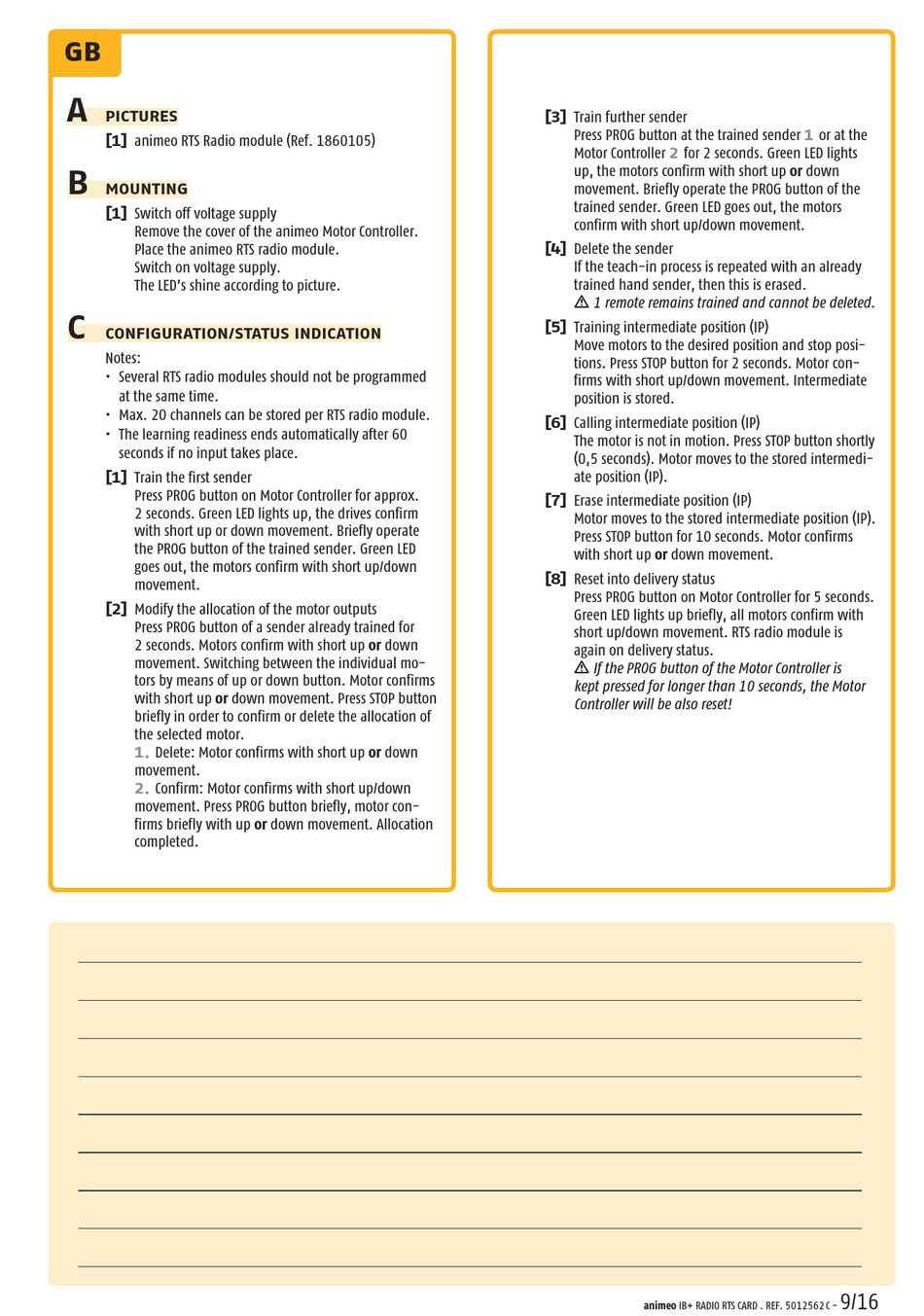

GB
A
PICTURES
[1] animeo RTS Radio module (Ref. 1860105)
B
MOUNTING
[1] Switch off voltage supply
Remove the cover of the animeo Motor Controller.
Place the animeo RTS radio module.
Switch on voltage supply.
The LED's shine according to picture.
C
CONFIGURATION/STATUS INDICATION
Notes:
• Several RTS radio modules should not be programmed
at the same time.
• Max. 20 channels can be stored per RTS radio module.
• The learning readiness ends automatically after 60
seconds if no input takes place.
[1] Train the first sender
Press PROG button on Motor Controller for approx.
2 seconds. Green LED lights up, the drives confirm
with short up or down movement. Briefly operate
the PROG button of the trained sender. Green LED
goes out, the motors confirm with short up/down
movement.
[2] Modify the allocation of the motor outputs
Press PROG button of a sender already trained for
2 seconds. Motors confirm with short up or down
movement. Switching between the individual mo-
tors by means of up or down button. Motor confirms
with short up or down movement. Press STOP button
briefly in order to confirm or delete the allocation of
the selected motor.
1. Delete: Motor confirms with short up or down
movement.
2. Confirm: Motor confirms with short up/down
movement. Press PROG button briefly, motor con-
firms briefly with up or down movement. Allocation
completed.
[3] Train further sender
Press PROG button at the trained sender
2
Motor Controller for 2 seconds. Green LED lights
up, the motors confirm with short up or down
movement. Briefly operate the PROG button of the
trained sender. Green LED goes out, the motors
confirm with short up/down movement.
[4] Delete the sender
If the teach-in process is repeated with an already
trained hand sender, then this is erased.
m 1 remote remains trained and cannot be deleted.
[5] Training intermediate position (IP)
Move motors to the desired position and stop posi-
tions. Press STOP button for 2 seconds. Motor con-
firms with short up/down movement. Intermediate
position is stored.
[6] Calling intermediate position (IP)
The motor is not in motion. Press STOP button shortly
(0,5 seconds). Motor moves to the stored intermedi-
ate position (IP).
[7] Erase intermediate position (IP)
Motor moves to the stored intermediate position (IP).
Press STOP button for 10 seconds. Motor confirms
with short up or down movement.
[8] Reset into delivery status
Press PROG button on Motor Controller for 5 seconds.
Green LED lights up briefly, all motors confirm with
short up/down movement. RTS radio module is
again on delivery status.
m If the PROG button of the Motor Controller is
kept pressed for longer than 10 seconds, the Motor
Controller will be also reset!
animeo IB+ RADIO RTS CARD . REF. 5012562 C -
1 or at the
9/16
