ENGLISH
D. Controlled by universal DMX-controller:
• Connect all units together. Refer to the chapter "Electrical installation for two or more units in DMX-
mode" to learn how to do this (don't forget to address all units properly!)
• Connect all units to the mains and turn on the DMX controller.
Since each unit has its own DMX-address, you can control them individually. Remember that each unit

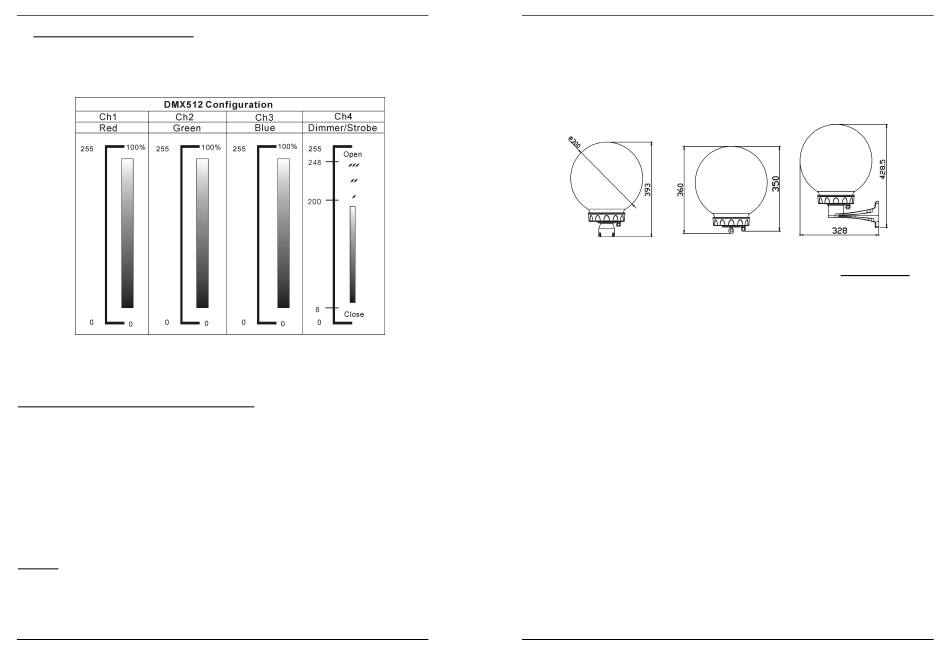

uses 4 DMX-channels as shown in the DMX chart below:
MAINTENANCE
• Make sure the area below the installation place is free from unwanted persons during servicing.
• Switch off the unit and unplug the mains cable.
During inspection the following points should be checked:
• All screws used for installing the device and any of its parts should be tightly fastened and may not be
corroded.
• Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any
deformation.
• When an optical part is visibly damaged due to cracks or deep scratches, it must be replaced.
• The mains cables must be in impeccable condition and should be replaced immediately when even a
small problem is detected.
• The interior of the device should be cleaned annually using a vacuum cleaner or air-jet.
• The cleaning of internal and external optics must be carried out periodically to optimize light output.
Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly
dirty surroundings can cause greater accumulation of dirt on the unit's optics.
• Clean with a soft cloth using normal glass cleaning products.
• Always dry the parts carefully.
• Clean the external optics at least once every 30 days.
• Clean the internal optics at least every 90 days.
Attention: We strongly recommend internal cleaning to be carried out by qualified personnel!
JB SYSTEMS®
OPERATION MANUAL
7/41 LED BALL
ENGLISH
SPECIFICATIONS
Mains Input: AC 100V~240V 50/60Hz
Fuse: 250V 2A slow blow (20mm glass)
Sound Control: Internal microphone
DMX connections: 3 contacts numbered 1,2,3 for DMX in/output
LEDs: 91 high power LEDs (R31 + G30 + B30)
Size: see drawing below
Weight: 1,5kg
Every information is subject to change without prior notice
You can download the latest version of this user manual on our website: www.beglec.com
