HOLZMANN-MASCHINEN BF 50DIG Originalbetriebsanleitung Seite 22

18
22
2
Speed table
29

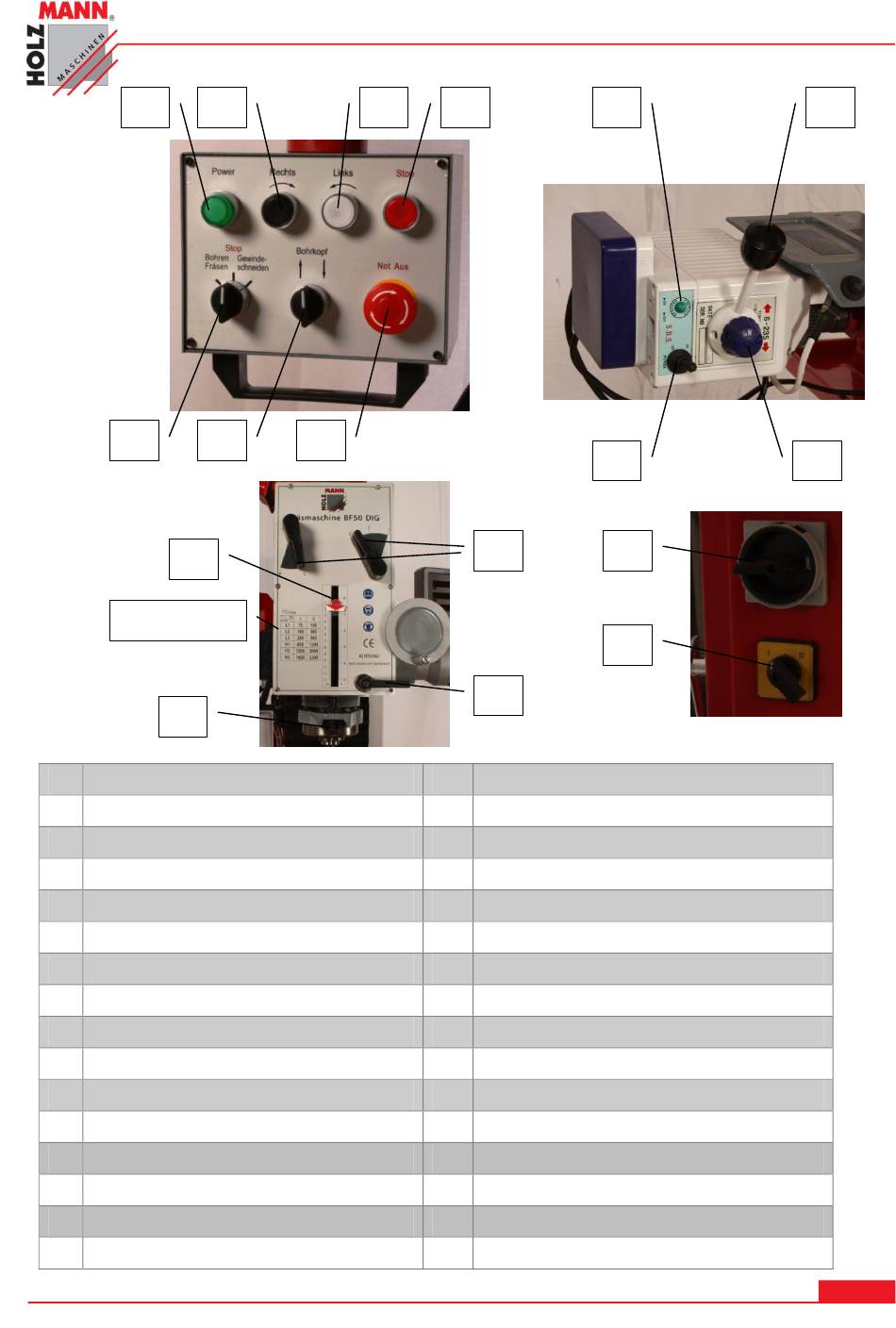

1 Selector lever spindle speed
2 Depth stop scale in mm / inches
3 control console
4 Windshield height adjustable
5 work lamp
6 Hand crank height milling head
7 Feed gear unit
8 Hand crank feed Y direction
9 E-motor
10 milling head
11 DRO digital display
12 Hand crank spindle
13 Fixation crank spindle
14 Fine feed Z-direction
15 Hand crank feed X-direction
16 cross table
HOLZMANN MASCHINEN Austria
19 20
23 24
www.holzmann-maschinen.at
21
1
30
17 substructure
18 indicator light
19 A switch clockwise
20 A reverse switch
21 OFF switch
22 Selector drilling / tapping
23 Quill feed selector switch UP / DOWN
24 EMERGENCY STOP switch
25 Overload circuit breaker
26 Feed lever left / right
27 ON-OFF switch feed unit
28 Control feed rate
29 Depth adjustment
30 Clamping lever Pinole
31 main switch
32 Motor speed switch 1 (I) / 2 (II)
FRÄSMASCHINE / MILLING MACHINE
25
27
31
32
TECHNIC
26
28
Seite 22
BF 50DIG
