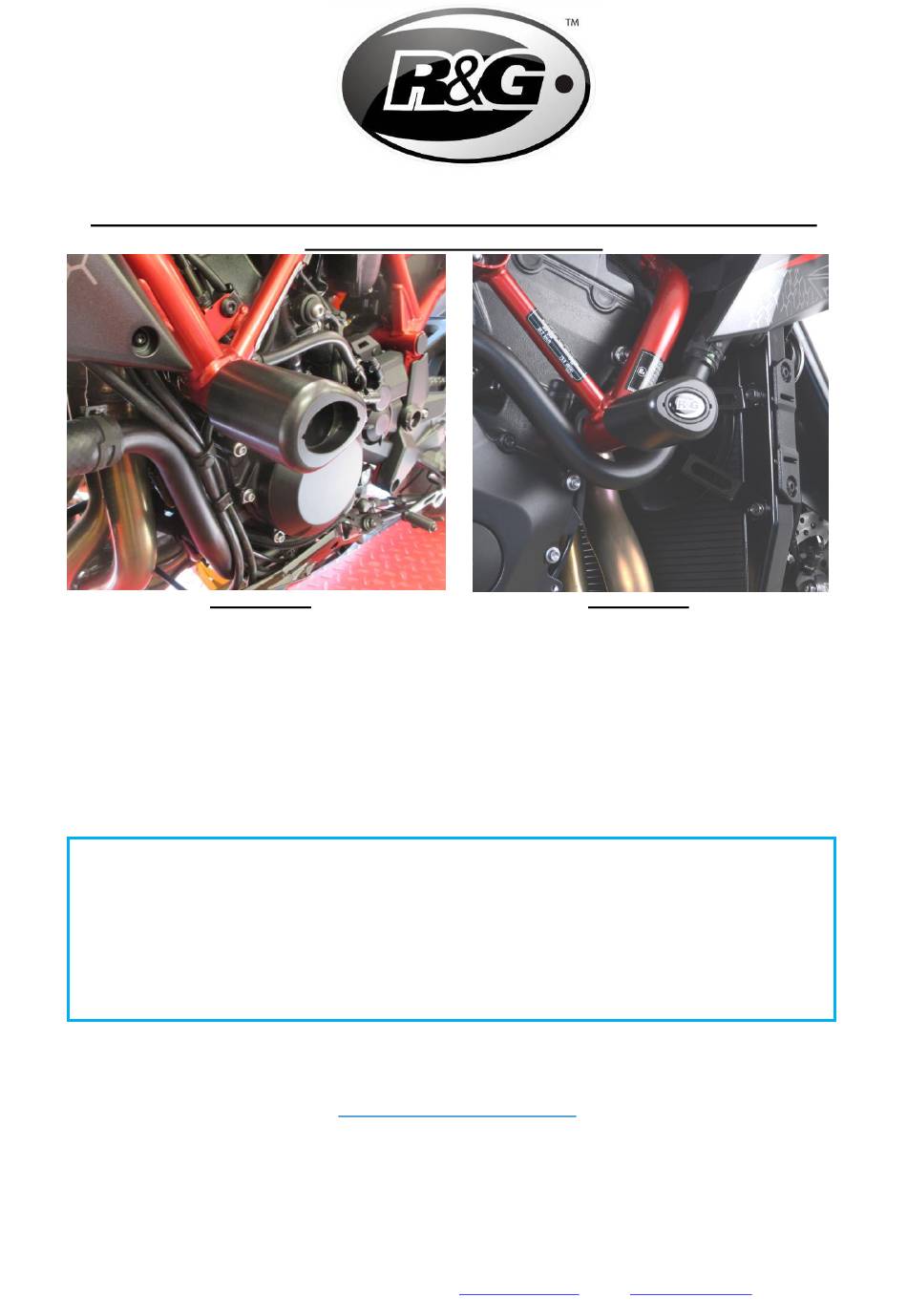

Page 1 of 13 CP0489 FITTING INSTRUCTIONS FOR CP0489 AERO CRASH PROTECTORS FOR KAWASAKI ZH2 2020 PICTURE A PICTURE B HIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE OME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY...
Seite 2
Page 2 of 13 CP0489 TOOLS REQUIRED GENERAL TORQUE SETTINGS • M4 BOLT = 8Nm Socket set to include 14 and 17mm A/F socket and wrench. M5 BOLT = • Torque wrench (up-to 40Nm). M6 BOLT = M8 BOLT = 20Nm...
Seite 3
Page 3 of 13 CP0489 RIGHT-HAND SIDE ASSEMBLY AERO STYLE CRASH PROTECTOR ORIENTATION PICTURE C R&G Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301 www.rg-racing.com Email: info@rg-racing.com...
Seite 4
Page 4 of 13 CP0489 PICTURE 1 PICTURE 2 PICTURE 3 PICTURE 4 FITTING INSTRUCTIONS • It is advisable to support the engine to prevent any engine movement when the original engine bolts are loosened/removed (do not use excessive force as damage can occur).
Seite 5
Page 5 of 13 CP0489 Then apply a quarter turn. Tighten to 40Nm of torque (do not exceed this figure, as damage can occur to the motorcycle and the bolt). • Fit the crash protector caps (item 1) as shown in picture B.
Seite 6
Page 6 of 13 CP0489 NOTICE DE MONTAGE POUR CP0489 PROTECTIONS CRASH POUR KAWASAKI ZH2 2020 PHOTO A PHOTO B E KIT CONTIENT LES ARTICLES ILLUSTRES ET ETIQUETES SUR LA PAGE ERTAINES PARTIES PEUVENT ETRE PRESENTES UNIQUEMENT POUR LA CLARTE DES...
Seite 7
Page 7 of 13 CP0489 OUTILS REQUIS VALEURS DE SERRAGE • M4 BOULON = 8Nm Clé à cliquet + douilles 14 et 17mm. M5 BOULON = • Clé dynamométrique (jusqu’à 40Nm). M6 BOULON = M8 BOULON = 20Nm 0 BOULON = 40Nm M12 BOULON = 40Nm LÉGENDE...
Seite 8
Page 8 of 13 CP0489 ASSEMBLAGE CÔTÉ GAUCHE NOTICE DE MONTAGE • Il est conseillé de soutenir le moteur pour empêcher tout mouvement du moteur lorsque les boulons du moteur d'origine seront desserrés / retirés (ne pas trop forcer dessus, car des dommages peuvent se produire Côté...
Seite 9
Page 9 of 13 CP0489 • Montez les bouchons de protection crash (article 1) comme indiqué sur la photo • Avant de rouler, vérifiez que les deux protections crash soient bien fixées et ne tournent pas. • Veuillez vérifier régulièrement le serrage des protections crash.
Seite 10
Page 10 of 13 CP0489 MONTAGEANLEITUNG FÜR CP0489 AERO STURZPADS FÜR KAWASAKI ZH2 2020 ABBILDUNG A ABBILDUNG B EILE SIND AUF DEN FOLGENDEN EITEN ABGEBILDET UND GEKENNZEICHNET IE ABGEBILDETEN EILE DIENEN LEDIGLICH ZUR RKLÄRUNG Ü BERPRÜFEN IE ZUERST DASS ALLE...
Seite 12
Page 12 of 13 CP0489 RECHTE SEITE - ZUSAMMENBAU MONTAGENALEITUNG • Es wird empfohlen, den Motor während der Montage zu stützen. Somit wird verhindert, dass Motor sich bewegen kann, wenn Originalschrauben gelöst / entfernt werden (bitte keine übermäßige Kraft anwenden, da dies eventuell Schäden verursachen kann).
Seite 13
Page 13 of 13 CP0489 Linke Seite (in Fahrtrichtung) • Entfernen Sie die Schraube, die in Abbildung 3 gekennzeichnet ist. • Eine M10 Unterlegscheibe (Artikel 3) an einer M10 Sechskantschraube (Artikel 2) anbringen, dann einen Distanzhalter (Artikel 4) gefolgt von einer Zahnscheibe (Artikel 5) anbringen wie in Abbildung 4 abgebildet.
