R&G CP0465 Montageanleitung

Page 1 of 21

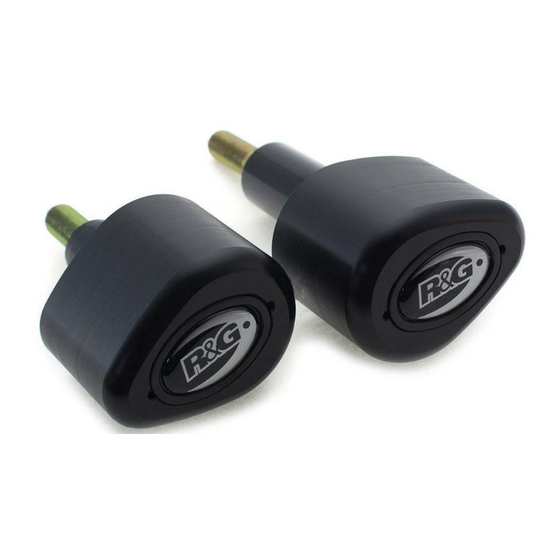

FITTING INSTRUCTIONS FOR CP0465 CRASH PROTECTORS
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
P
LEASE BE AWARE THAT MODIFICATION TO BOTH THE LEFT AND RIGHT FAIRINGS IS REQUIRED
P
LEASE NOTE THAT THE WAY THE KIT IS PACKED DOES NOT NECESSARILY REPRESENT THE WAY OF
P
LEASE NOTE THAT IN CASES WHERE KITS ARE PACKED WITH RUBBER WASHERS HOLDING THE COMPONENTS
ONTO THE BOLT
T
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
D
IGITAL COPIES OF THESE INSTRUCTIONS ARE AVAILABLE TO DOWNLOAD FROM
GENERAL TORQUE SETTINGS
M4 BOLT = 8Nm
M5 BOLT = 12Nm
M6 BOLT = 15Nm
M8 BOLT = 20Nm
M10 BOLT = 40Nm
Unit
Tel: +44 (0) 420 89007 Fax: +44 (0)
1
FOR YAMAHA YZF-R25/R3 '19-
TO FIT THIS CRASH PROTECTOR KIT
MOUNTING TO THE BIKE
–
THE RUBBER WASHERS SHOULD BE THROWN AWAY
, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
1
420 87301
1
(
FOR CLARITY OF INSTRUCTIONS ONLY
TOOLS REQUIRED
• Metric Allen key/socket set to include 4,
5 and 8mm A/F sizes
• Ratchet and socket set to include 10 and
17mm sizes
• Phillips head and small flathead
screwdrivers
• Torque wrench
• Drill and 28mm hole saw
R&G
www.rg-racing.com
CP0465
.
!
. -
WWW RG RACING
