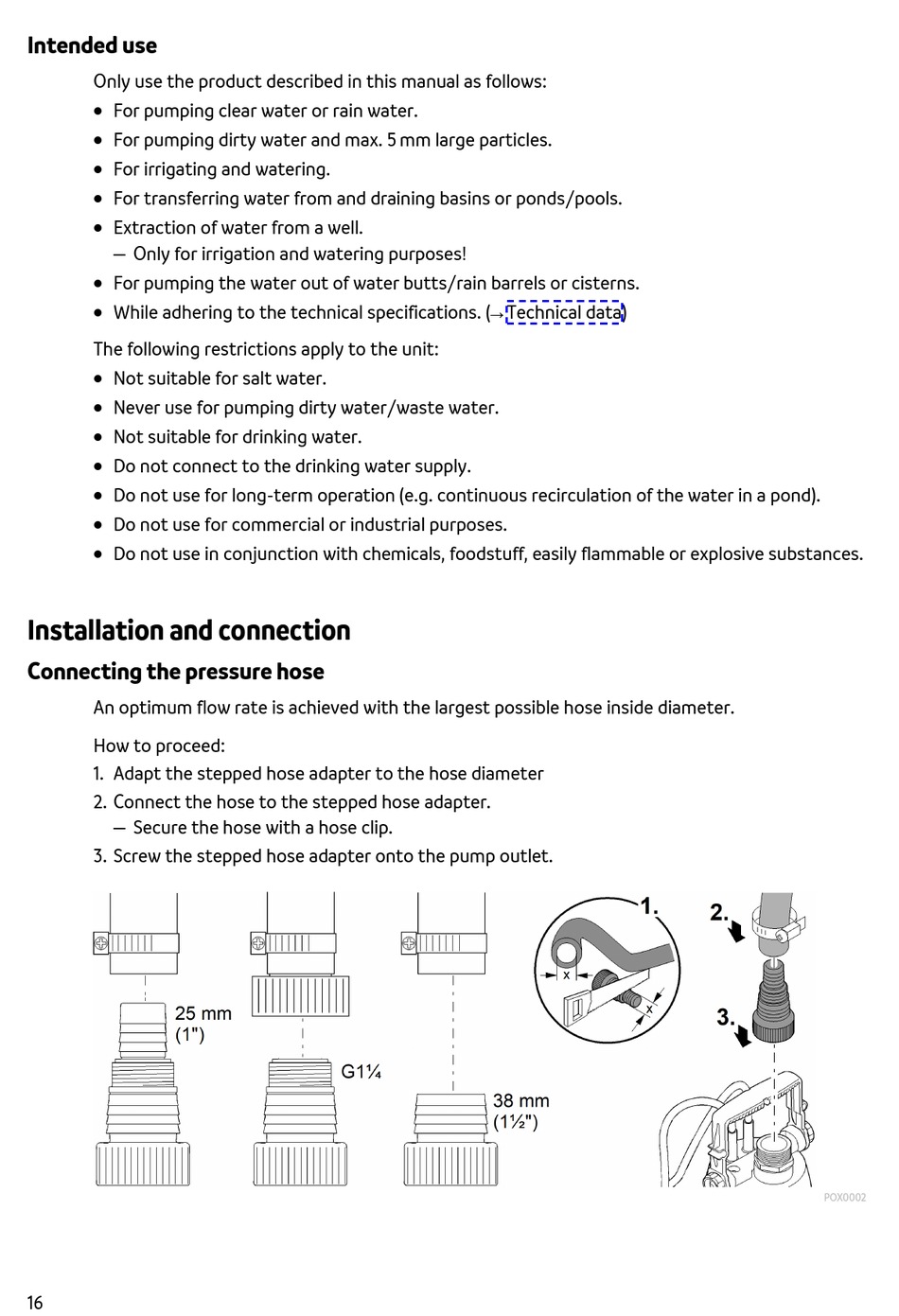

Intended Use; Installation And Connection - Oase ProMax ClearDrain 7000 Gebrauchsanleitung

Intended use

Only use the product described in this manual as follows:
 For pumping clear water or rain water.
 For pumping dirty water and max. 5 mm large particles.
 For irrigating and watering.
 For transferring water from and draining basins or ponds/pools.
 Extraction of water from a well.
– Only for irrigation and watering purposes!
 For pumping the water out of water butts/rain barrels or cisterns.
 While adhering to the technical specifications. (→ Technical data)
The following restrictions apply to the unit:
 Not suitable for salt water.
 Never use for pumping dirty water/waste water.
 Not suitable for drinking water.
 Do not connect to the drinking water supply.
 Do not use for long-term operation (e.g. continuous recirculation of the water in a pond).
 Do not use for commercial or industrial purposes.
 Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.

Installation and connection

Connecting the pressure hose
An optimum flow rate is achieved with the largest possible hose inside diameter.
How to proceed:
1. Adapt the stepped hose adapter to the hose diameter
2. Connect the hose to the stepped hose adapter.
– Secure the hose with a hose clip.
3. Screw the stepped hose adapter onto the pump outlet.
16
POX0002
