ASSEMBLY

1a
B
2
B

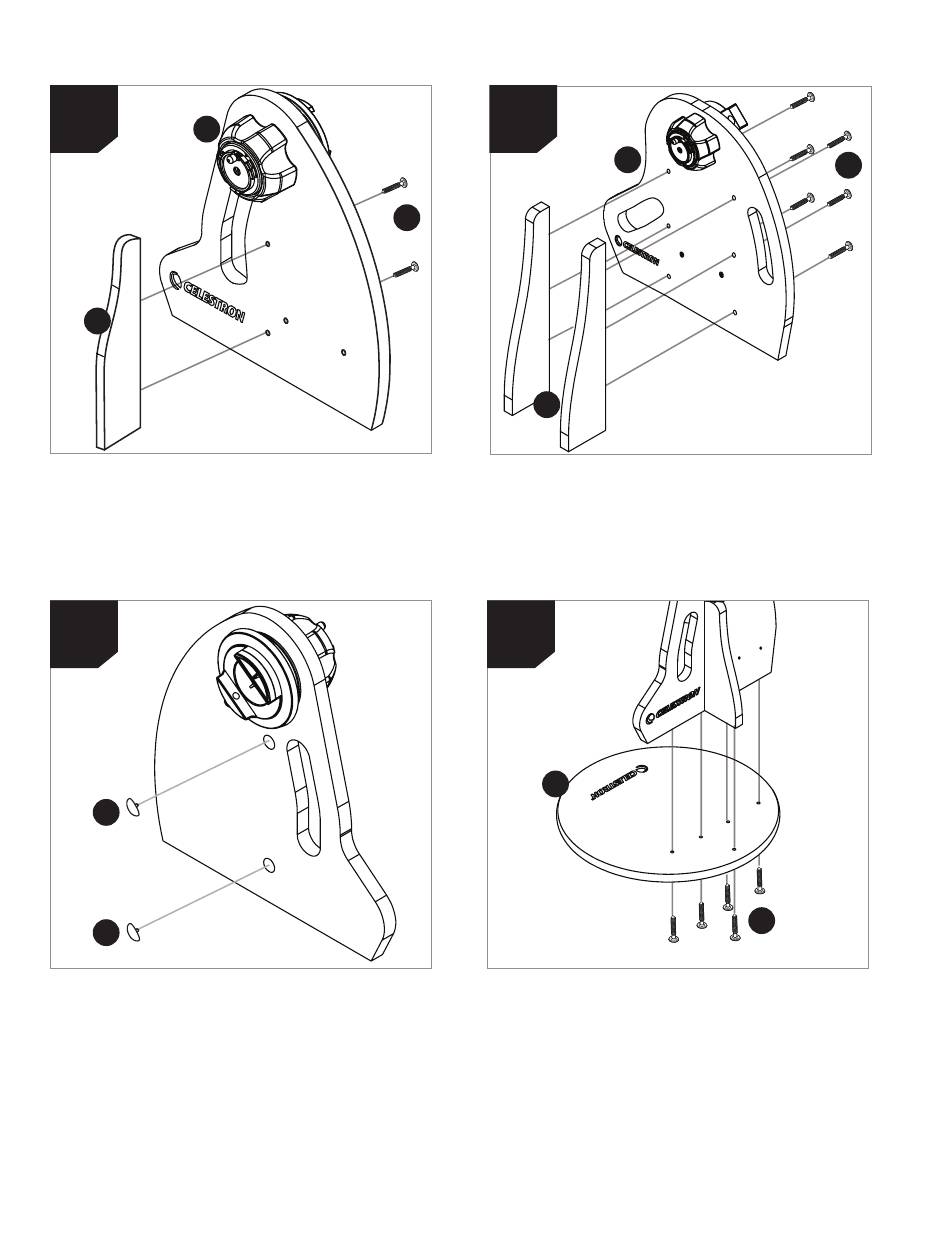

For the 114mm and 130mm models:
1. Connect the side support (B2) to the side panel (B1)
with the base assembly screws (B5). The supports go
on the on the same side of the panels as the Celestron
logo.
2
6
B
B 6
2. If desired, you can install the cosmetic screw covers
(B6) on the screws installed in Step 1. Press the
covers fi rmly onto the screw heads. For the 114mm and
130mm models there will be 2 screw covers to install,
for the 150mm model there will be 6 screw covers to
install.
4 I ENGLISH
1
1b
5
B
2
B
For the 150mm model:
1a. Connect the 2 side supports (B2) to the side panel
(B1) with the base assembly screws (B5). The
supports go on the on the same side of the panels as
the Celestron logo.
3
3
B
3. Connect the assembly to the top plate (B3) using the
base assembly screws (B5). Orient the top plate so the
side with the logo faces upward. For the 114mm model
there will be 4 screws to install, for the 130mm and
150mm models there will be 5 screws to install.
1
B
B 5
5
B
